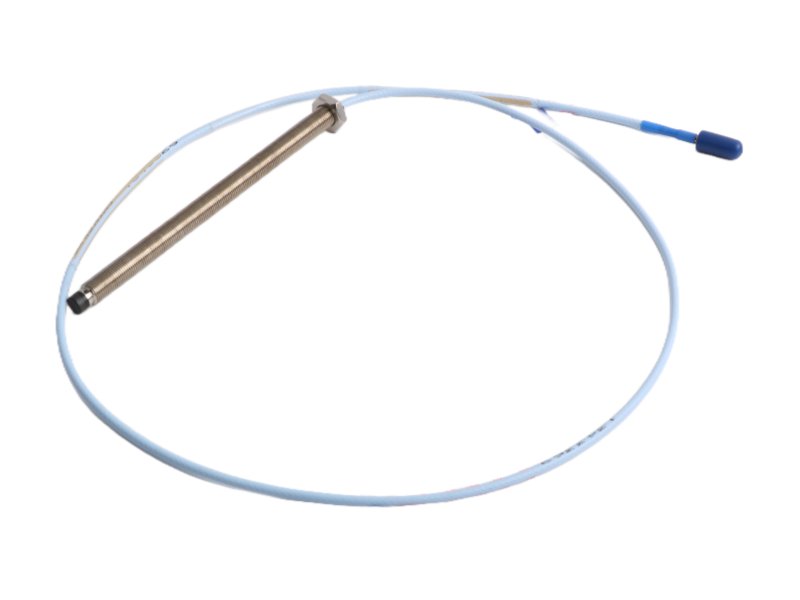

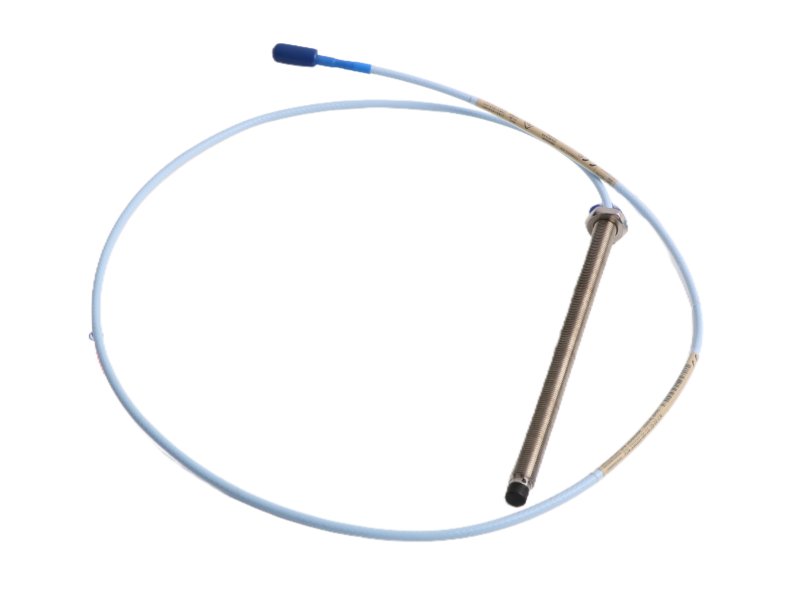

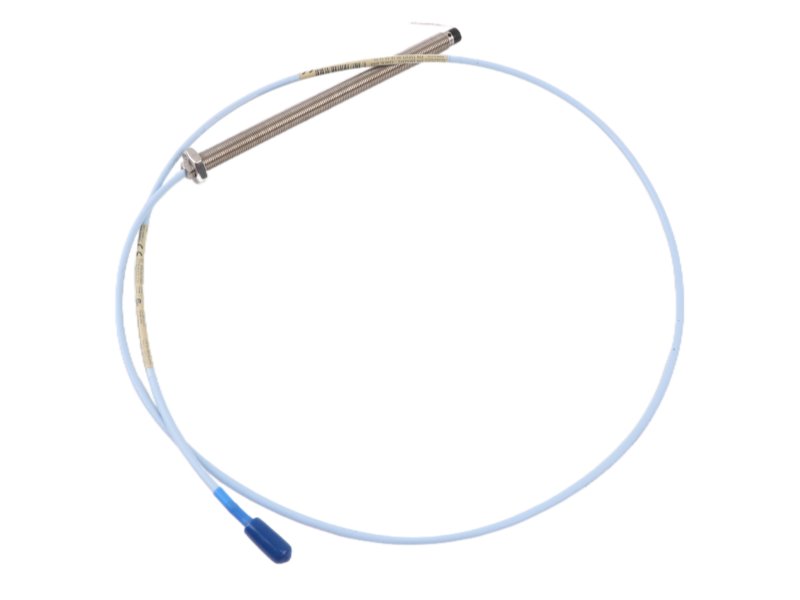

The 330103-00-17-10-02-05  Probe Bently Nevada is part of the 3300 XL series, designed for precise, non-contact displacement measurements in industrial machinery. This high-performance 3300 XL 8 mm proximity probe delivers accurate vibration and shaft position monitoring, making it ideal for critical machinery applications. The Proximitor Probe Bently Nevada 330103-00-17-10-02-05 provides reliable operation in harsh industrial environments, offering durability and long-term measurement stability.

The 3300 XL 8 mm Probe Bently Nevada 330103-00-17-10-02-05 features a case length of 17 mm and a total length of 1.0 meter (3.3 feet), with a miniature coaxial ClickLoc connector and standard cable. It is fully certified with CSA, ATEX, and IECEx approvals, ensuring safe operation in hazardous locations. The probe is compatible with 3300-series 5 mm and 3300 XL 8 mm extension cables, providing flexible integration into existing monitoring systems.

Operating on a voltage supply between -17.5 Vdc and -26 Vdc, the 330103-00-17-10-02-05 Bently Nevada maintains high accuracy with less than 2 mV change in output per volt of input variation. It draws a maximum current of 12 mA and has an output resistance of 50 Ω.

Designed for optimal accuracy, the Bently Nevada 3300 SERIES 330103-00-17-10-02-05 is intended for use with AISI 4140 steel targets and operates reliably at altitudes up to 2000 meters. Its M10 x 1 threaded design without armor allows easy installation while maintaining robust performance across a wide range of industrial monitoring applications.
