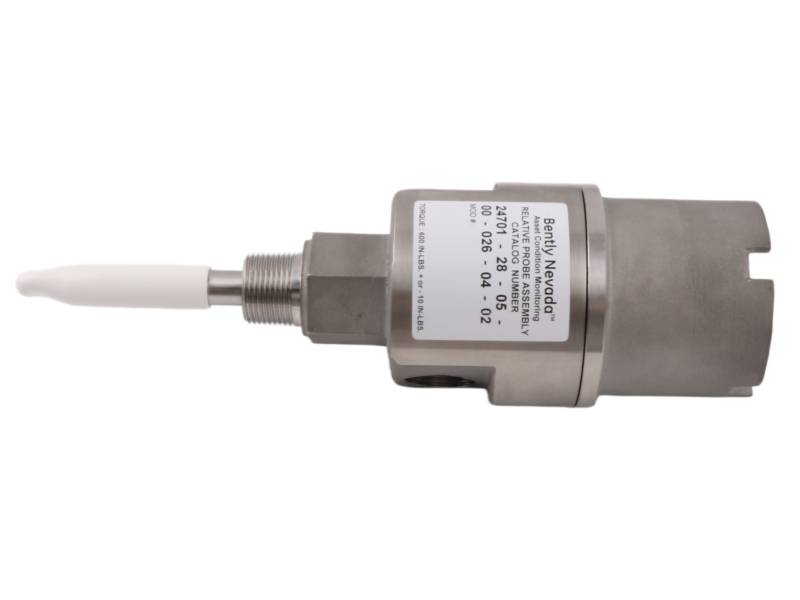

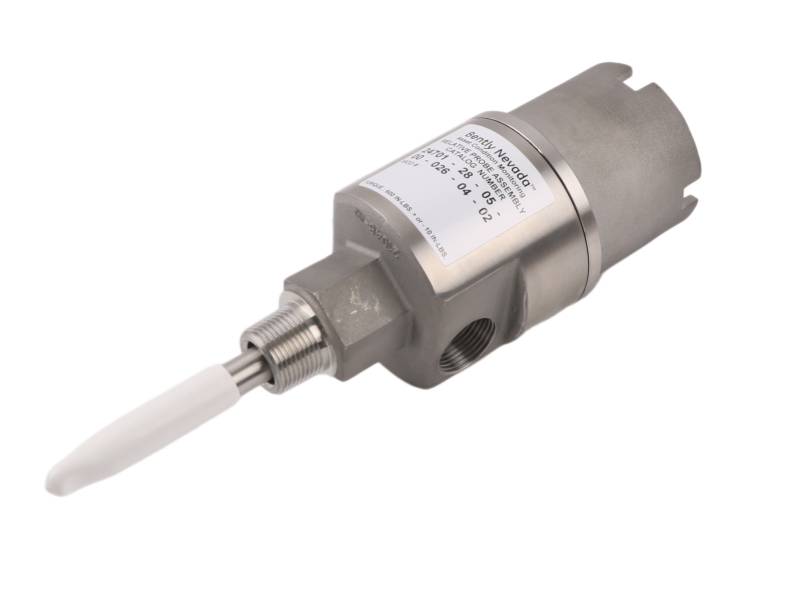

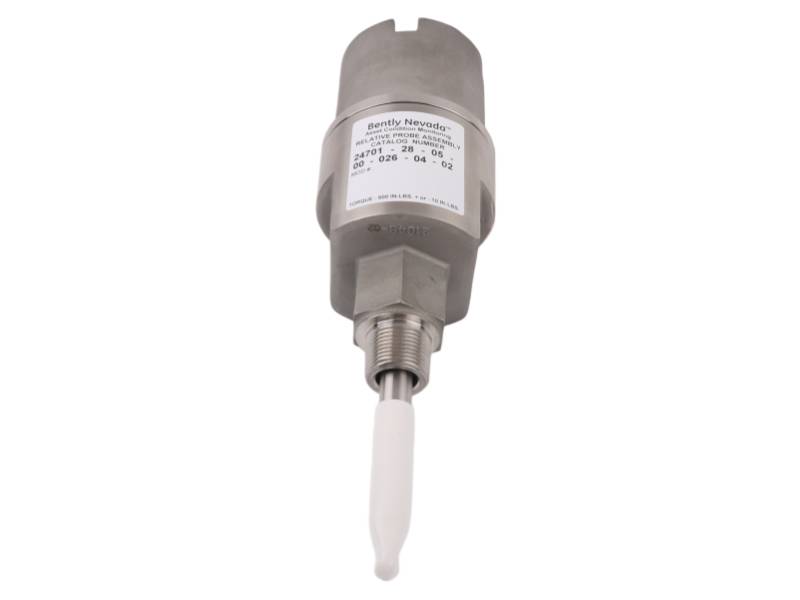

The Bently Nevada Stainless Steel Sensor Enclosure Assembly 24701-34-05-30-036-04-02 is a stainless steel probe housing assembly for 3300 XL 8mm probes, featuring 0.5m cable, 3.0 in standoff, 3.6 in penetration, and 3/4-14 NPT mounting.

Features and benefits

• Wide Temperature Range: Probe operates reliably from -51°C to +177°C (-60°F to +351°F) for extreme environments.

• Stainless Steel Construction: Durable 24701 housing provides corrosion resistance and long-term reliability.

• Flexible Configuration: Features 0.5m cable, 3.0 in standoff adapter, and 3.6 in probe penetration for versatile installation.

• Multiple Probe Options: Compatible with 3300 XL 8mm probe featuring connector protector and approval options.

• Standard Mounting: 3/4-14 NPT mounting thread with one plug for simplified installation.

• Support Accessories: Compatible with 37948-01 probe support/oil seal for sleeves over 305 mm (12 in).

FAQ

Q1: What is the Bently Nevada 24701-34-05-30-036-04-02?

A1: It is a stainless steel probe housing assembly for 3300 XL 8mm probes with connector protector and approval options.

Q2: What are the key dimensional specifications?

A2: It features 0.5m cable length, 3.0 in standoff adapter, 3.6 in probe penetration, and 3/4-14 NPT mounting thread.

Q3: What temperature range can this assembly withstand?

A3: The 3300 XL 8mm probe operates and stores reliably from -51°C to +177°C (-60°F to +351°F).

Q4: What probe options are compatible with this housing?

A4: Compatible with 3300 XL 8mm probe with connector protector and multiple approval options (code 16).

Q5: What accessories are available for longer sleeves?

A5: For sleeves over 305 mm (12 in), the 37948-01 Probe Support / Oil Seal is recommended.
