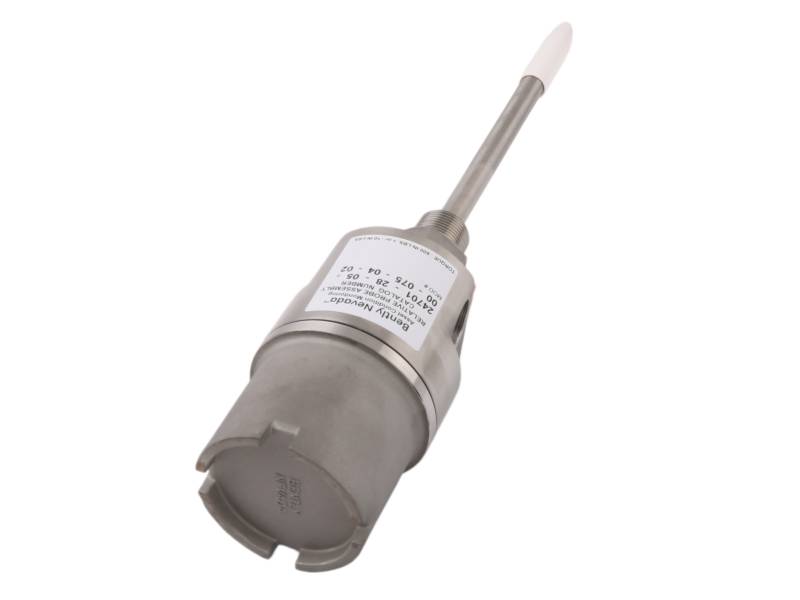

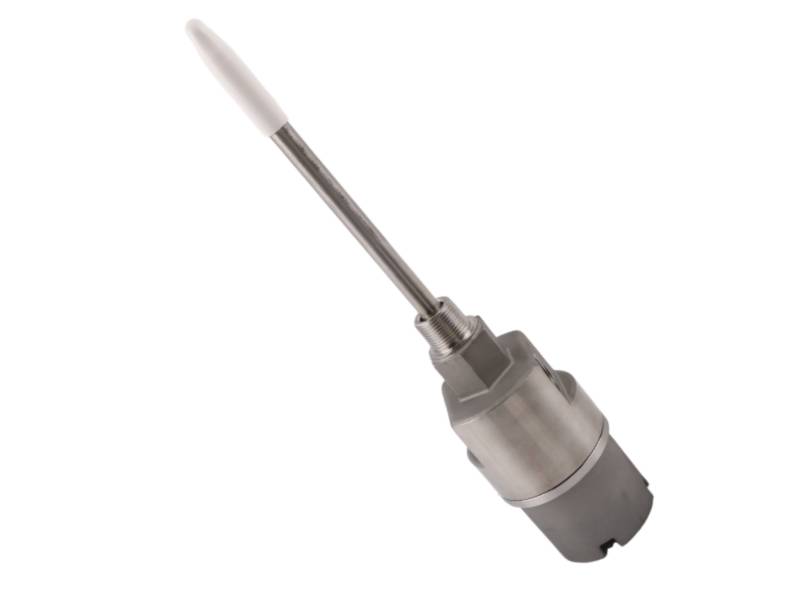

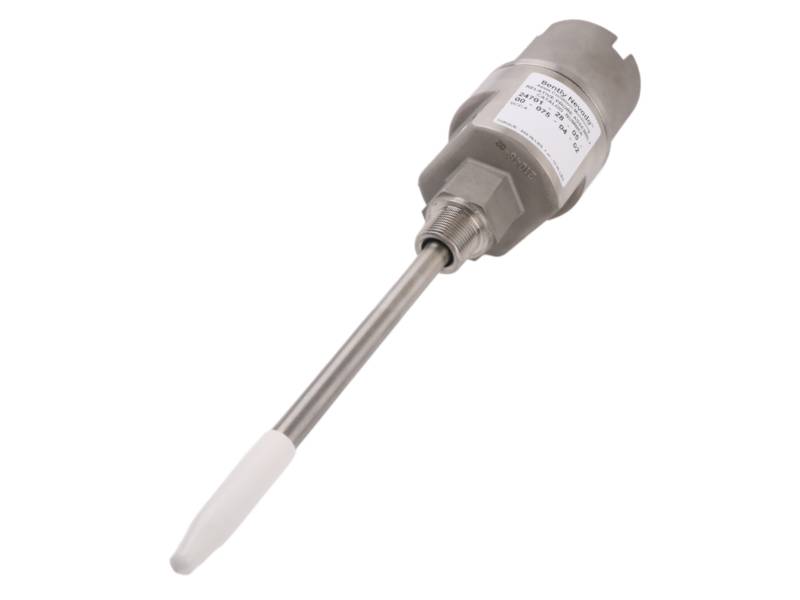

The Stainless steel probe housing assembly Bently Nevada 24701-28-05-00-025-04-02 is a stainless steel probe housing assembly for 3300 XL 8mm probes, CSA certified explosion-proof, API 670 compliant, with 0.5m cable and 3/4-14 NPT mounting.

Environment and certification

• CSA Certified: Approved by Canadian Standards Association for hazardous area installations.

• Explosion Proof: Rated for use in explosive environments with intrinsically safe applications.

• CSA Type 4 Enclosure: Provides protection against dust, water, and harsh industrial conditions.

• API 670 Compliant: Fully meets American Petroleum Institute standard for externally mounted probe housings.

• Stainless Steel Construction: Durable 24701 housing material for corrosion resistance and longevity.

• Hazardous Area Approved: Suitable for intrinsically safe applications in dangerous environments.

FAQ

Q1: What is the Bently Nevada 24701-28-05-00-025-04-02?

A1: It is a stainless steel probe housing assembly for 3300 XL series 8mm proximity probes with hazardous area approvals.

Q2: What certifications does this housing assembly have?

A2: It has CSA approval as explosion-proof for hazardous areas and is certified as a CSA Type 4 enclosure.

Q3: What industry standard does this housing comply with?

A3: It is fully compliant with the American Petroleum Institute's API 670 Standard for externally mounted probe housings.

Q4: What are the key specifications of this model?

A4: It features a 3300 XL 8mm probe with approval option, 0.5m cable, no standoff adapter, 2.5in probe penetration, and one 3/4-14 NPT plug.

Q5: What support is available for longer sleeve installations?

A5: For sleeves over 304mm, Bently Nevada offers probe support and oil seal (part 37948-01) and custom sleeve supports.
