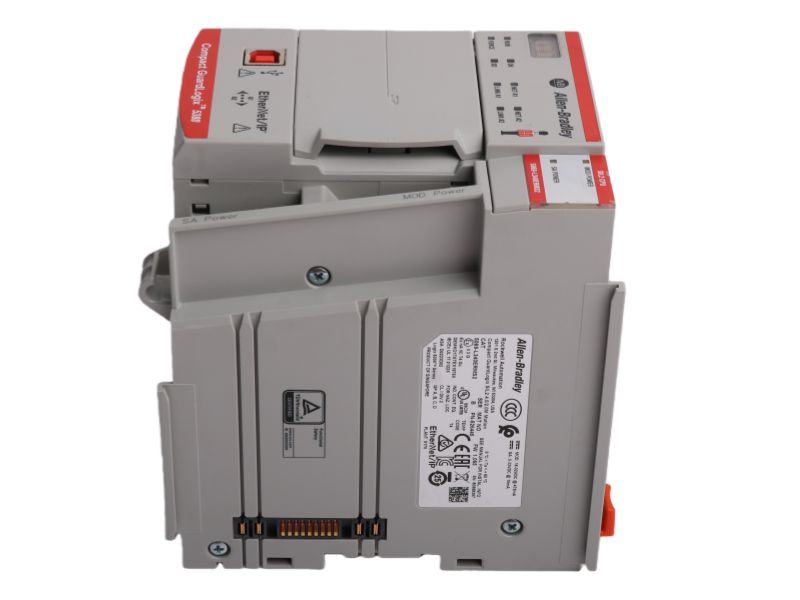

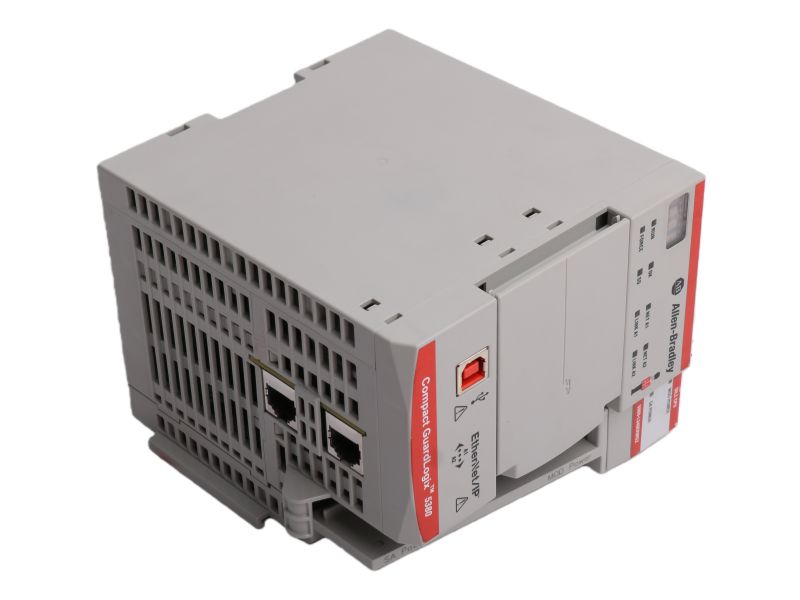

The Allen-Bradley MOTION CONTROLLER 5069-L380ERM is a CompactLogix 5380 series PAC featuring 8 MB user memory, integrated Ethernet and USB ports, and supports advanced motion control with up to 256 axes.

Features and Benefits

Advanced Processing: Features 8 MB user memory and supports up to 32 tasks, enabling efficient multitasking.

Rich Connectivity: Offers dual Ethernet ports (10/100/1000 Mbps) and a USB port for flexible programming and networking.

Expanded Storage: Includes 2 GB non-volatile memory, expandable via SD card for extensive program and data storage.

Integrated Motion Control: Supports up to 256 motion axes and 24 CIP drive axes for advanced automation applications.

Robust Design: Provides 300V continuous isolation, meets T4 temperature code, and holds multiple safety certifications.

Versatile Installation: Supports DIN rail mounting with a removable terminal block for convenient field deployment.

FAQ

Q1: What are the key memory specifications of the 5069-L380ERM controller?

A1: It features 8 MB of user memory, 2 GB of non-volatile memory, and supports external SD card expansion up to 32 GB.

Q2: How many communication ports does this controller have, and what are they used for?

A2: It has two Ethernet ports (10/100/1000 Mbps) for industrial networking and one USB port (12 Mbps) for local configuration.

Q3: What motion control capabilities does the 5069-L380ERM support?

A3: It supports configuration of up to 256 motion axes, including CIP drive axes, virtual axes, and regenerative/non-regenerative converter axes.

Q4: What are the environmental operating conditions for this controller?

A4: It operates at temperatures from 0°C to 60°C with 5-95% non-condensing humidity and holds T4, ATEX, IEC, and c-UL certifications.

Q5: What expansion options are available for I/O and tasks?

A5: It supports up to 31 local I/O modules, 32 configurable tasks, and up to 70 EtherNet/IP node addresses for scalable system design.
