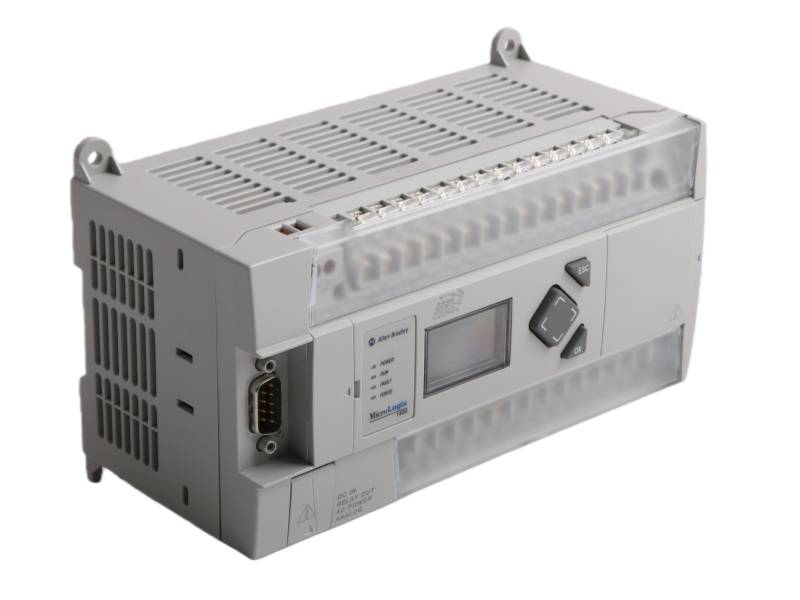

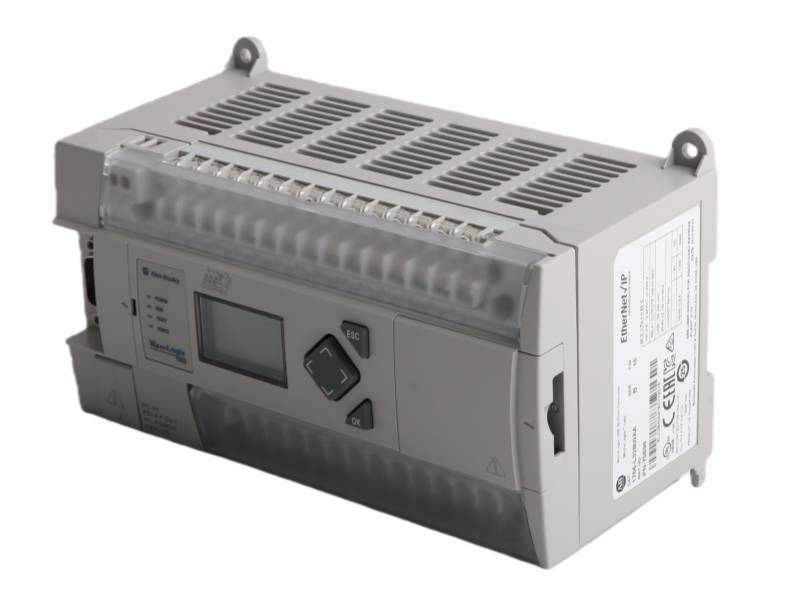

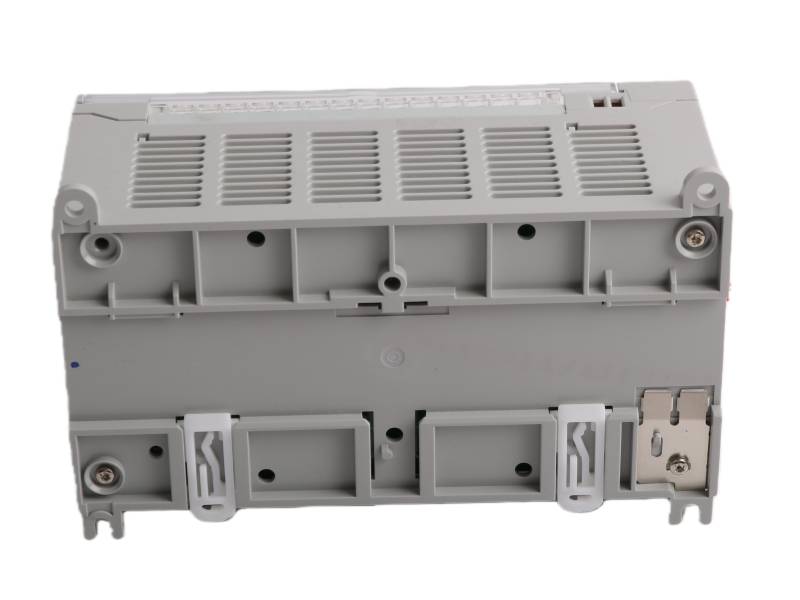

The Allen-Bradley 1766-L32BWA MicroLogix 1400 PLC is a MicroLogix 1400 series PLC featuring 32 integrated I/O points, versatile communication ports including Ethernet, and support for multiple industrial protocols, ideal for machine-level automation.

Specifications

I/O Configuration: Provides 32 integrated I/O points: 12 fast (100 kHz) and 8 standard 24V DC inputs, plus 12 relay outputs.

Communication Ports: Features three ports: one combo isolated RS-232/485, one RS-232, and one Ethernet/IP port for connectivity.

Supported Protocols: Supports a wide range, including DF1, DH-485, Modbus RTU/TCP, ASCII, and DNP3 (Serial & Ethernet).

Memory & Processing: Equipped with 20 KB of user memory and supports up to 6 embedded 100 kHz high-speed counters.

Physical & Power: Dimensions of 3.5" x 7.08" x 3.43"; powered by 120-240V AC.

System Expansion: Supports connection of up to seven 1762 series expansion I/O modules.

FAQ

Q1: What are the communication capabilities of the 1766-L32BWA controller?

A1: It features three ports (isolated RS-232/485, RS-232, and Ethernet/IP) supporting protocols like Modbus RTU/TCP, DNP3, and DF1.

Q2: How many high-speed inputs does this controller have and what is their frequency?

A2: It includes 12 high-speed DC inputs, each capable of operating at up to 100 kHz for fast-switching devices.

Q3: What is the expansion capability of the 1766-L32BWA?

A3: The controller can be expanded with up to seven additional 1762 series I/O modules.

Q4: Does this controller support web server or email functions?

A4: Yes, its Ethernet port provides a built-in web server and email capability for enhanced remote monitoring.

Q5: What is the power supply requirement for the 1766-L32BWA?

A5: It operates on a 120-240V AC power supply.
