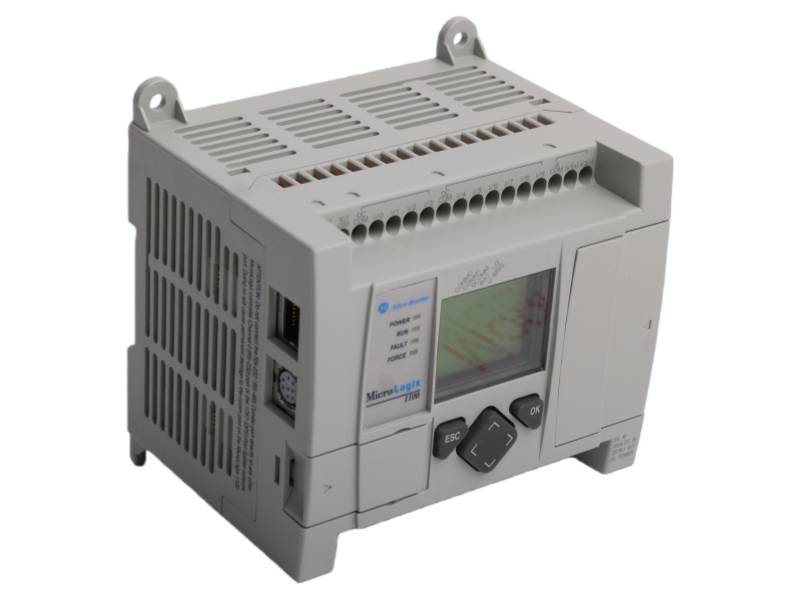

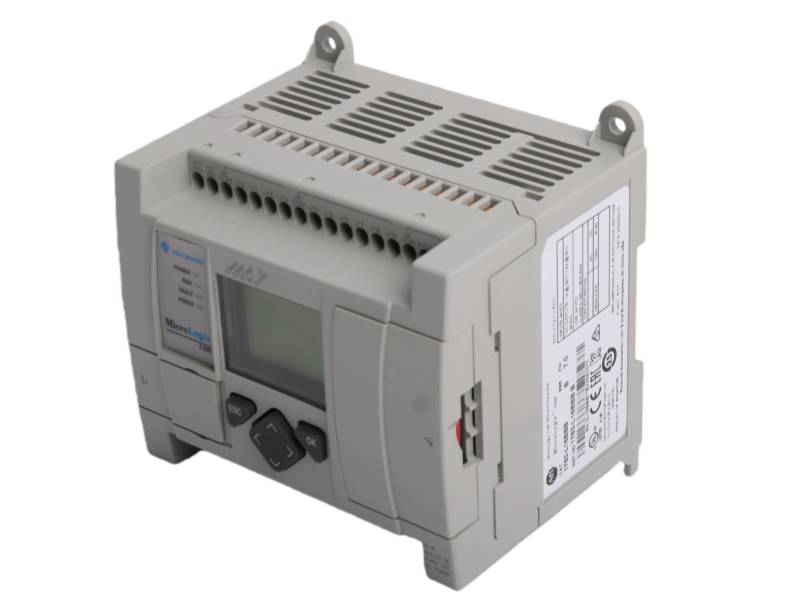

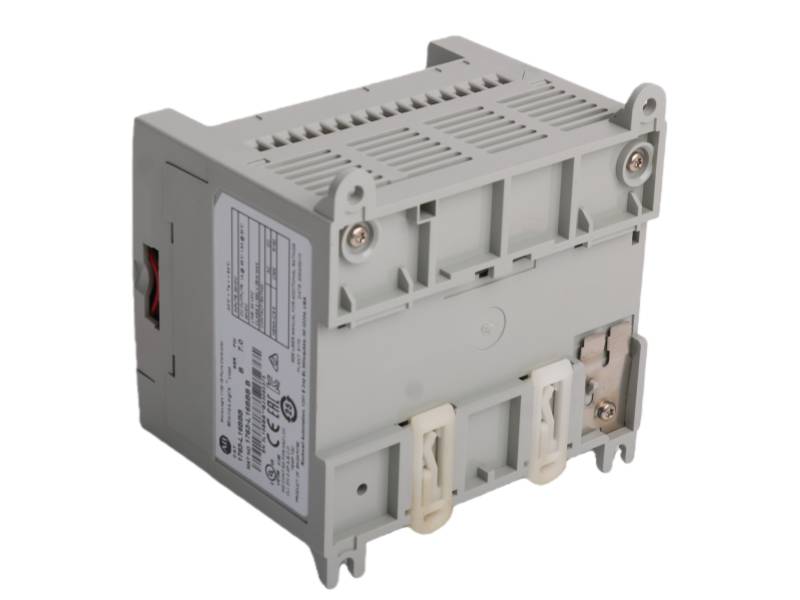

The 1763-L16BWA controller Allen-Bradley is a MicroLogix 1100 series PLC with 18 I/O points, featuring 10 digital inputs, 2 analog inputs, and 6 relay outputs. It supports Ethernet/IP, Modbus, and expansion modules for small-scale automation.

Control & Communication

Communication Ports: Features an RS-232 and an RS-485 serial port, as well as an Ethernet/IP port for network connectivity.

Supported Protocols: Supports key industrial protocols including Modbus and TCP/IP via Ethernet for device communication.

Programming Software: Can be programmed and configured using Rockwell Automation's RSLogix 500 software.

Programming Capability: The controller supports online editing for convenient program modifications.

Display & Diagnostics: Equipped with a built-in LCD panel for enhanced user interface and system diagnostics.

Scalable I/O: Supports up to four expansion modules, allowing for system growth and adaptation to application needs.

FAQ

Q1: What is the total number of I/O points on the 1763-L16BWA controller?

A1: It has a total of 18 I/O points: 10 digital inputs, 2 analog inputs, and 6 relay outputs.

Q2: What types of communication ports are available on this controller?

A2: It is equipped with RS-232, RS-485, and Ethernet/IP communication ports.

Q3: Does the controller support network communication protocols?

A3: Yes, it supports Ethernet/IP for networking and Modbus for serial communication.

Q4: Can the system's I/O capacity be expanded?

A4: Yes, the controller supports the addition of up to four expansion modules.

Q5: What software is used to program the 1763-L16BWA?

A5: It is programmed using Rockwell Automation's RSLogix 500 software.
