2098-DSD-020-SE Product datasheet

2098-DSD-020-SE Functional Description

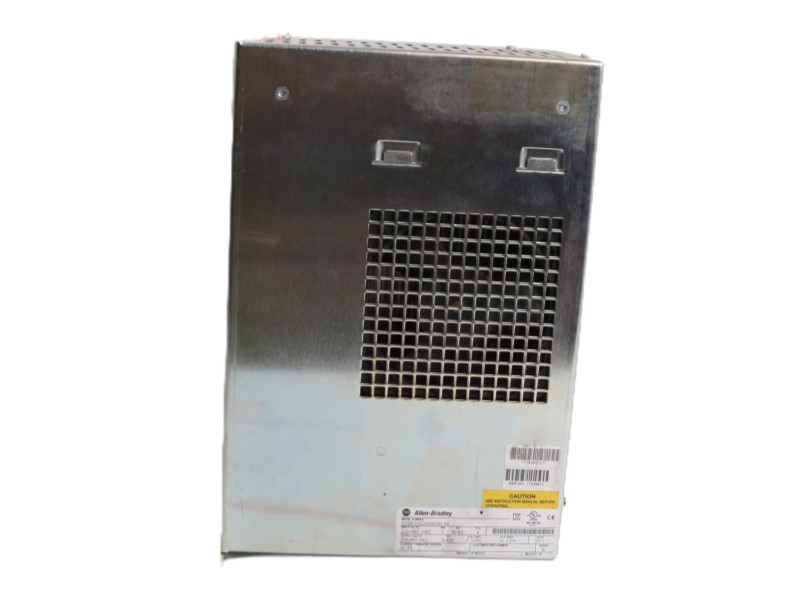

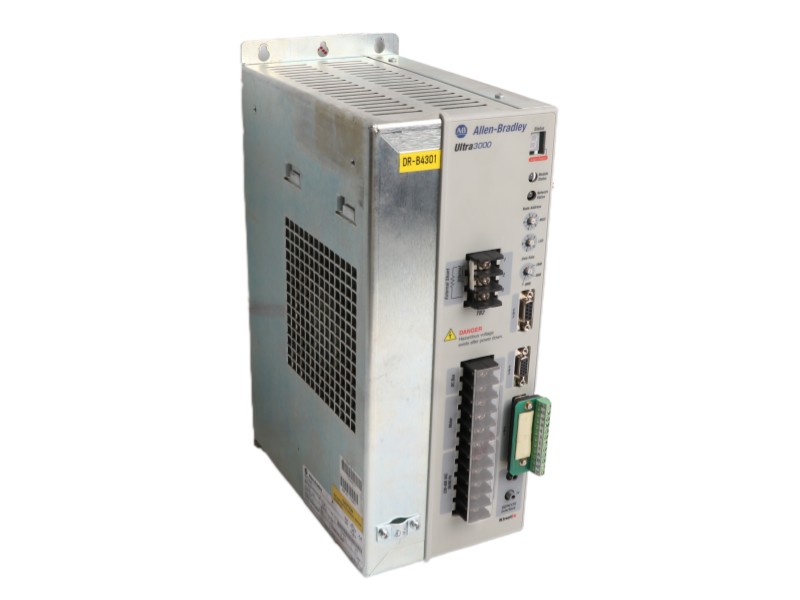

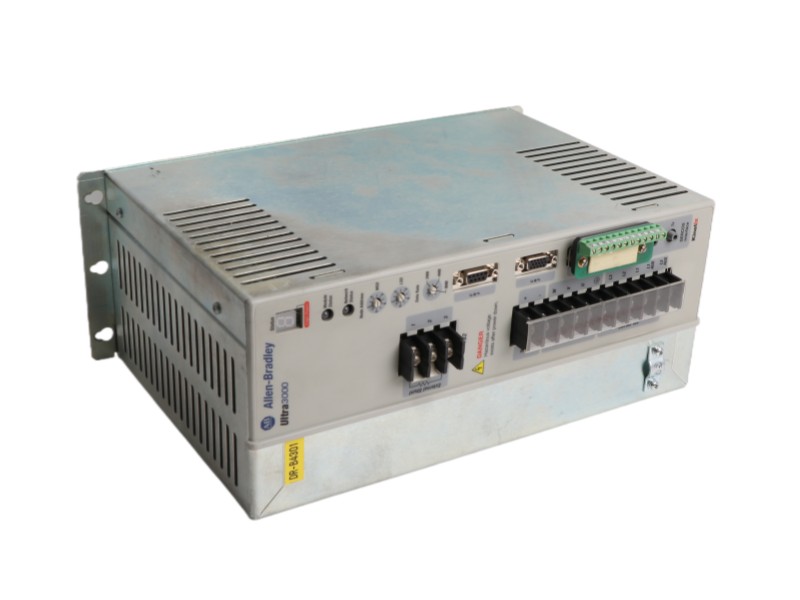

The Servo Drive 2098-DSD-020-SE Allen-Bradley is a digital servo drive from the renowned Ultra3000 series, designed for high-performance motion control in industrial automation. 2098-DSD-020-SE Allen Bradley Ultra 3000 Digital Servo Drive supports various architectures and is widely implemented as a reliable third-party control system. This specific model utilizes the SERCOS interface, integral to the Kinetix integrated motion solution, to ensure precise command execution and synchronization.

Operating within an ambient temperature range of 0-55°C, the 2098-DSD-020-SE Allen-Bradley digital servo drive is compact and robust, facilitating easy transportation and installation. It accepts a 230V AC input and delivers an output ranging from 115-230V AC (single-phase) at 47-63 Hz. With a continuous output current of 10 Amps and an intermittent output of 30 Amps, it provides substantial power for demanding applications. The device also supports high-speed communication via DeviceNet and features dedicated slots such as RS-232 and RS-485.

The Digital Servo Drive 2098-DSD-020-SE ROCKWELL includes essential components like a servo motor and feedback cable, with optional brake or shunt modules for enhanced functionality. Its three ports (CN1, CN2, CN3) serve as versatile connectors for various peripherals, simplifying drive indexing and SERCOS interfacing across multiple devices. A 7-segment display provides real-time status updates, such as flashing indicators for communication establishment.

Proper terminal connections for transmitting and receiving ends are crucial before configuring the ALLEN BRADLEY 2098-DSD-020-SE. This drive not only enhances the capabilities of the Ultra3000 series but also ensures efficient and reliable operation in complex motion systems. Its design emphasizes both performance and integration ease, making it a preferred choice in automated industrial environments.
