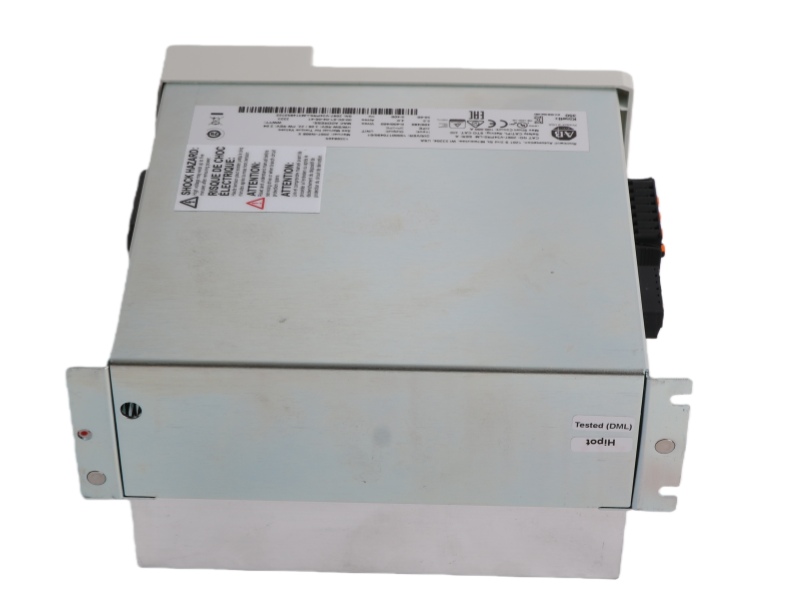

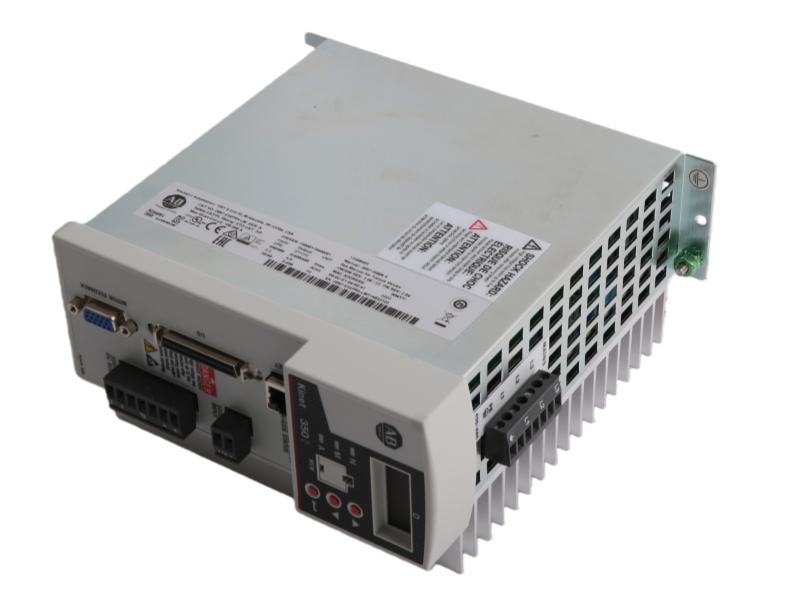

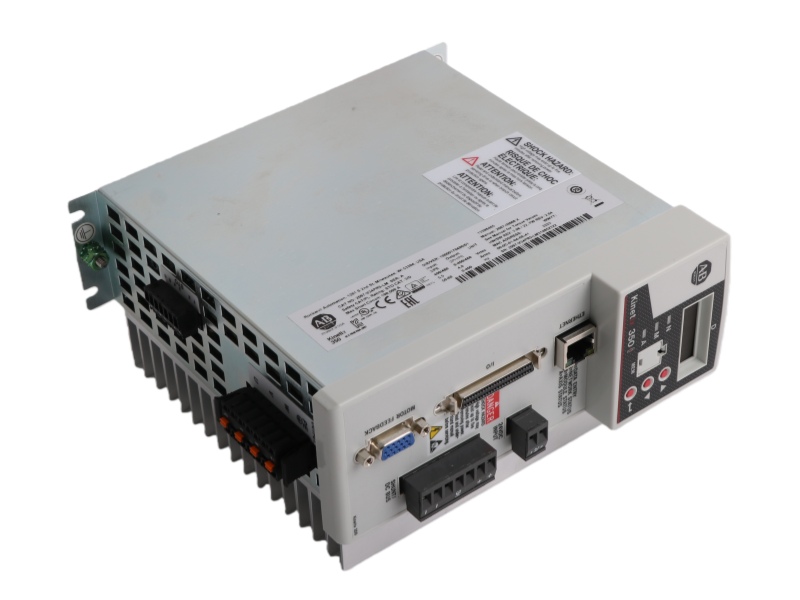

The Kinetix 300 & 350 Servo Drives Allen-Bradley 2097-V34PR5-LM is a Kinetix 350 single-axis Ethernet/IP servo drive, offering a 2.0 kW power rating and 5.7A output current. Its compact design simplifies integration and reduces panel space, providing a scalable, cost-effective motion control solution.

Detailed Technical Specifications of the Allen-Bradley 2097-V34PR5-LM

Electrical Input: Three-phase, 415V nominal input voltage.

Power Rating: 2.0 kW continuous output power.

Output Current: Nominal output current (I2N) of 5.7 A.

Communication: Integrated motion over a single EtherNet/IP network.

Dimensions: Compact size at 190mm (H) x 94mm (W) x 185mm (D).

Environment: Operating temperature range of 0 to 40 °C.

FAQ

Q1: What is the power rating of the Allen-Bradley 2097-V34PR5-LM servo drive?

A1: It has a continuous power output rating of 2.0 kW.

Q2: What are its main electrical input specifications?

A2: It requires a three-phase input with a nominal voltage of 415V.

Q3: What communication network does it use?

A3: It utilizes a single EtherNet/IP network for integrated motion, control, and communication.

Q4: What is its nominal output current?

A4: The nominal output current (I2N) is 5.7 Amperes.

Q5: How is it mounted in a panel?

A5: It is mounted using M4 (#6-32) steel machine screws torqued to 1.1 N•m (9.8 lb•in).
