2094-BM03-S Product datasheet

2094-BM03-S Functional Description

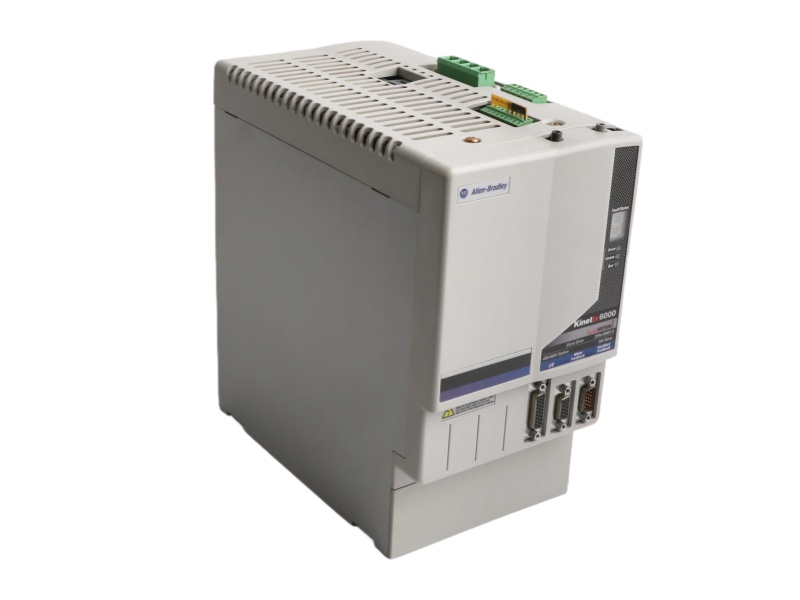

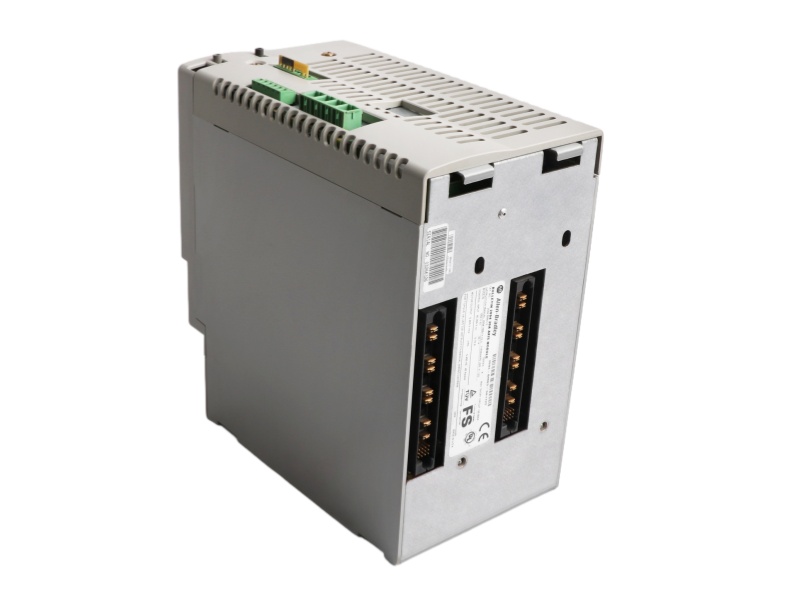

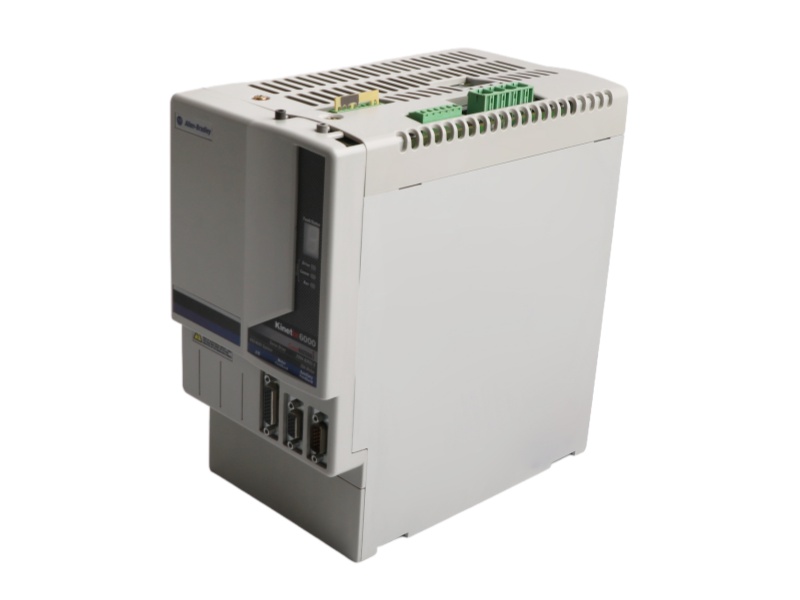

The Axis Module 2094-BM03-S Allen-Bradley is a 400VAC class axis module within the Kinetix Multi-Axis Drive family, delivering a continuous current of 21.2 A and a peak current of 53.0 A. It features 98% efficiency, an integrated Safe Torque-off function, and a short-circuit rating of 200,000 A (rms) symmetrical, ensuring both high performance and operational safety.

This ROCKWELL KINETIX 6000 SERVO DRIVE  2094-BM03-S interfaces with rotary and linear motors through feedback cables and connects directly to the control module for processing I/O and auxiliary feedback signals. The 2094-BM03-S AB multi- axis integrated motion mounts directly to the power rail and requires integration with complementary modules such as the shunt module and slot fillers to form a complete drive solution.

With a continuous power output of 13.5 kW, the AXIS MODULE 2094-BM03-S Allen Bradley supports standard (150%) and enhanced (250%) peak inverter current modes, making it suitable for high-demand motion applications. Its power dissipation is 200W continuous and 22.5kW peak, and it operates with a nominal DC input voltage of 650V.

Designed to enhance system performance and reduce production costs, the Allen-Bradley 2094-BM03-S Kinetix 6000 Drive component offers features such as safe speed monitoring and multi-turn absolute encoder support for maintaining position during power loss. Its high dynamic response and flexible overload capabilities make it ideal for applications requiring rapid acceleration and deceleration within automated industrial environments.
