2094-BC02-M02-S  Product datasheet

2094-BC02-M02-S  Functional Description

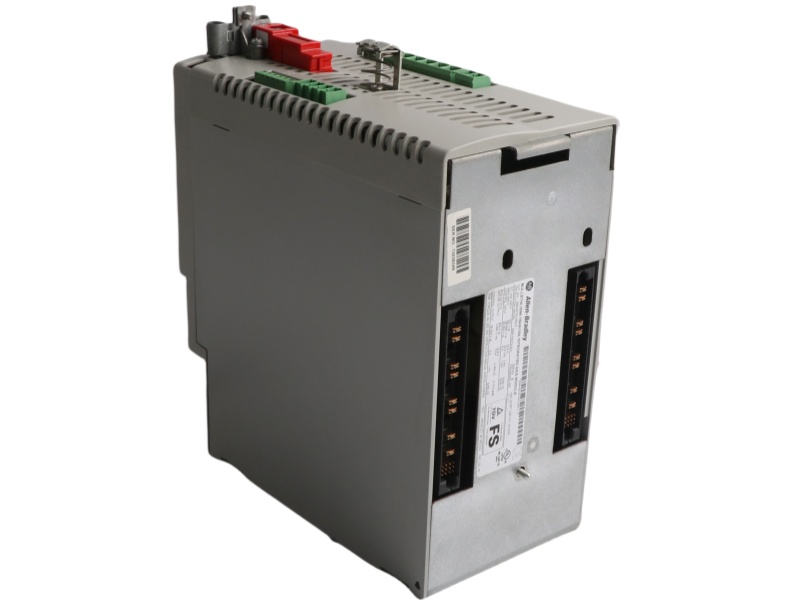

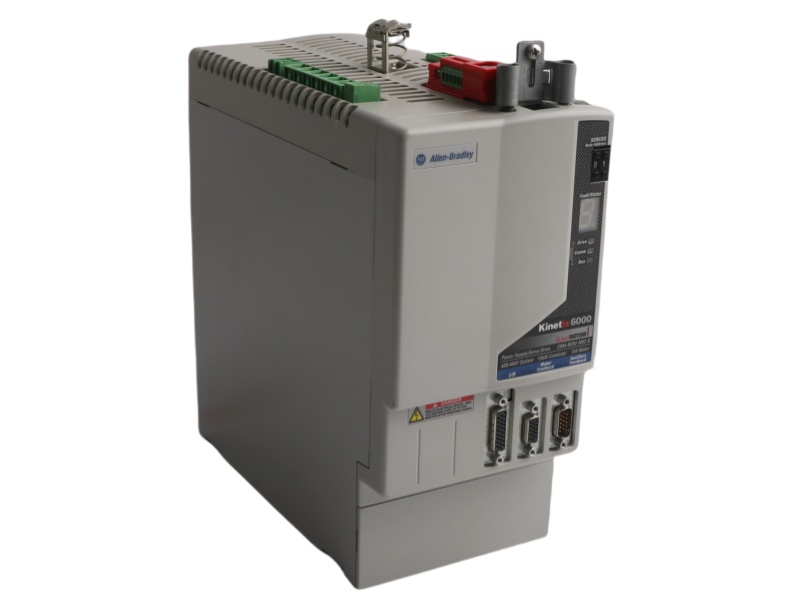

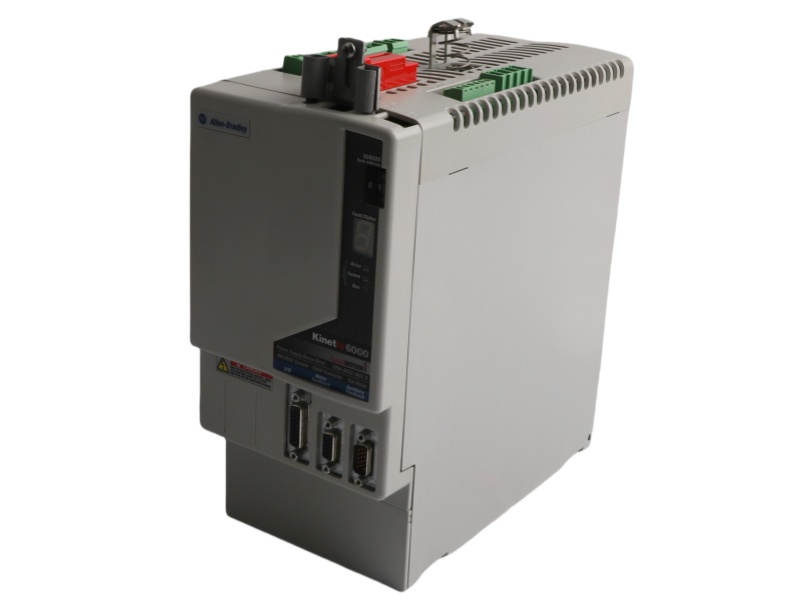

The Allen Bradley 2094-BC02-M02-S Kinetix6000 is a high-performance Kinetix 6000 Integrated Axis Module (IAM) engineered for demanding multi-axis motion applications. Designed for 400VAC-class systems, it operates with an input voltage of 324-528VAC, three-phase, at 47-63 Hz. Its nominal input current is 24.0 A with a maximum inrush current of 22.0 A. On the DC side, the 2094-BC02-M02-S In Stock Allen-Bradley accepts 458-747VDC, supporting a DC input current of 22.6 A in a common-bus-follower setup, ensuring stable power delivery across interconnected drives.

This robust module features a nominal bus output voltage of 650VDC, paired with protective measures such as a bus overvoltage limit of 825VDC and undervoltage at 275VDC. The ROCKWELL 2094-BC02-M02-S INTEGRATED AXIS MODULE includes an internal shunt rated at 50 W continuous and 5.6 kW peak, with a 115 Ω resistor that activates at 805VDC and deactivates at 755VDC. It delivers a continuous bus output power of 15 kW and can achieve peak outputs of 30 kW for Series A and up to 37.5 kW for Series B, C, and D drives.

Built for reliability, the AB Kinetix 6000 Integrated Axis Module 2094-BC02-M02-S  offers an impressive 97% efficiency. The Allen Bradley 2094-BC02-M02-S Integrated Axis Module also includes converter components such as 500 μH inductance and 110 μF capacitance, with a short-circuit current rating of 200,000 A (rms) symmetrical. Standard peak inverter current is 150%, enhanced peak is 250%, while converter peak is 200% for Series A and 250% for Series B and C.

Compatible with the 2094-BM02-S Axis module, the 2094-BC02-M02-S Kinetix 6000 Multi-axis Servo Drives supports FNQ-R-10 and FNQ-R-7.5 fuses or Allen-Bradley breakers like 1492-SPM2D060. Power dissipation ranges from 36 W at 20% load to 75 W at full capacity, underlining the Allen Bradley 2094-BC02-M02-S as a highly efficient, heavy-duty solution for integrated motion control.
