1769-OF4 Product datasheet
|
Model number: |
1769-OF4 |
|
Module Type： |
I/O Module |
|
Manufacture: |
Allen-Bradley |
|
Condition： |
Brand New |
|
Range of Product: |
ContorlLogix |
|
Lead time： |
In Stock |
|
Weight: |
0.9kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x14.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Jane 30,2016 |
|
Communication Service: |
Ethernet router |
1769-OF4 Functional Description

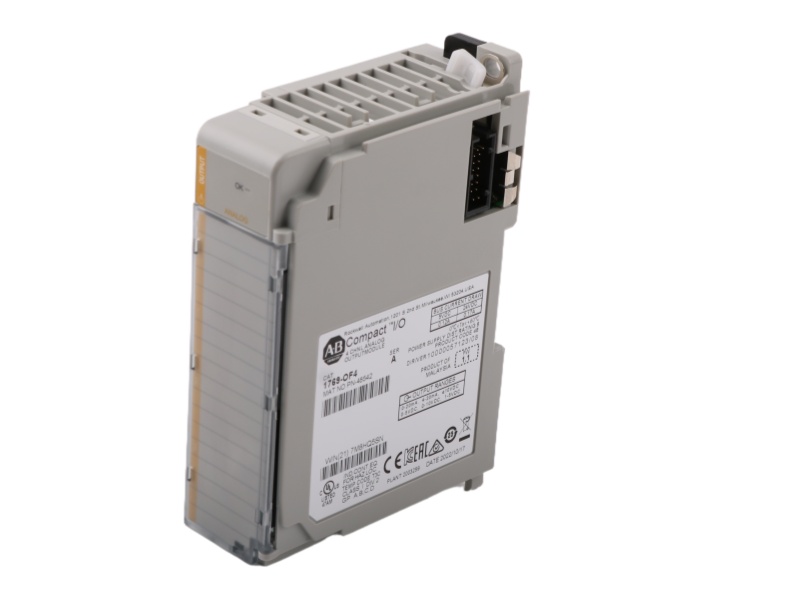

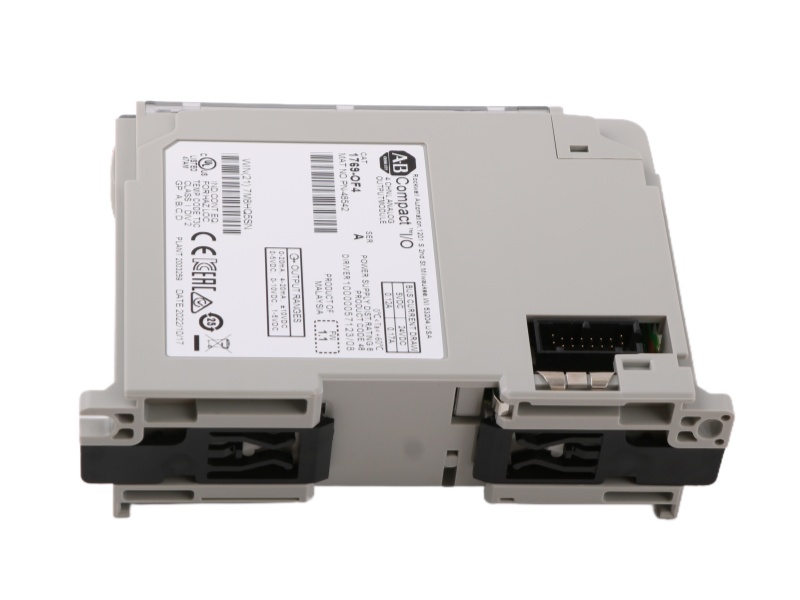

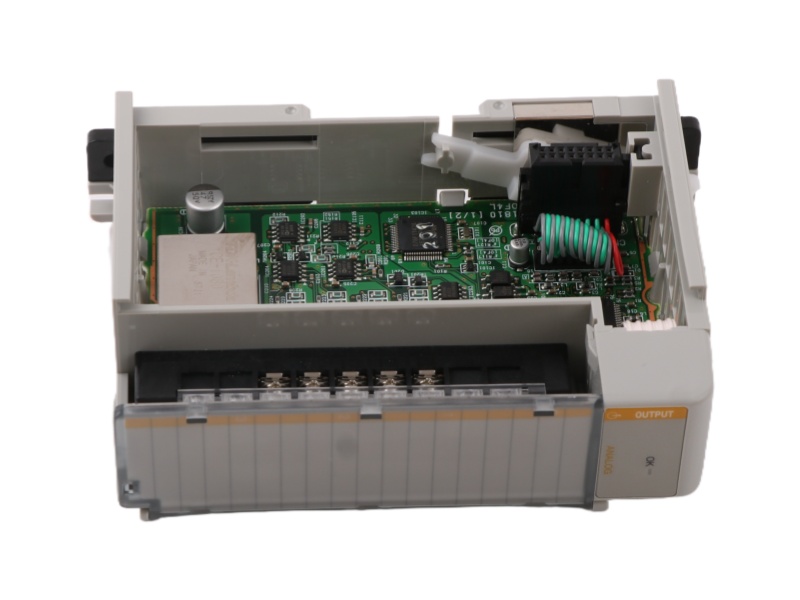

The Compact I/O Analog Output Module 1769-OF4 AB is a high-precision analog output module designed for integration with MicroLogix 1500 and CompactLogix control systems. It features four single-ended output channels that support both voltage (0-10V, ±10V) and current (0-20mA, 4-20mA) signals, providing flexible connectivity for industrial automation devices.
With 15-bit resolution and high accuracy (±0.5% at 25°C), the Allen-Bradley 1769-OF4 CompactLogix 1769 4Ao Current Voltage Module ensures reliable performance in controlling final elements such as variable frequency drives, control valves, and data recorders. The 1769-OF4 Allen-Bradley offers fast response times, with step response under 2.9 ms and power-up/down response below 1 ms, making it suitable for dynamic process applications.
The 1769-OF4 COMPACT I/O MODULE ROCKWELL includes built-in protection against overcurrent and overvoltage conditions, enhancing system reliability. It operates within a wide temperature range of 0-60°C and features low output ripple (±0.05%), ensuring stable signal generation in demanding industrial environments.
Installation requires positioning the Compact I/O Modules 1769-OF4 Allen Bradley within eight modules of the power supply. For larger configurations, additional power supplies can be added to support extended module counts while maintaining optimal performance of this versatile output solution.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
