1769-IF4 Product datasheet
|
Model number: |
1769-IF4 |
|
Module Type： |
I/O Module |
|
Manufacture: |
Allen-Bradley |
|
Condition： |
Brand New |
|
Range of Product: |
ContorlLogix |
|
Lead time： |
In Stock |
|
Weight: |
0.9kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x14.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Jane 30,2016 |
|
Communication Service: |
Ethernet router |
1769-IF4 Functional Description

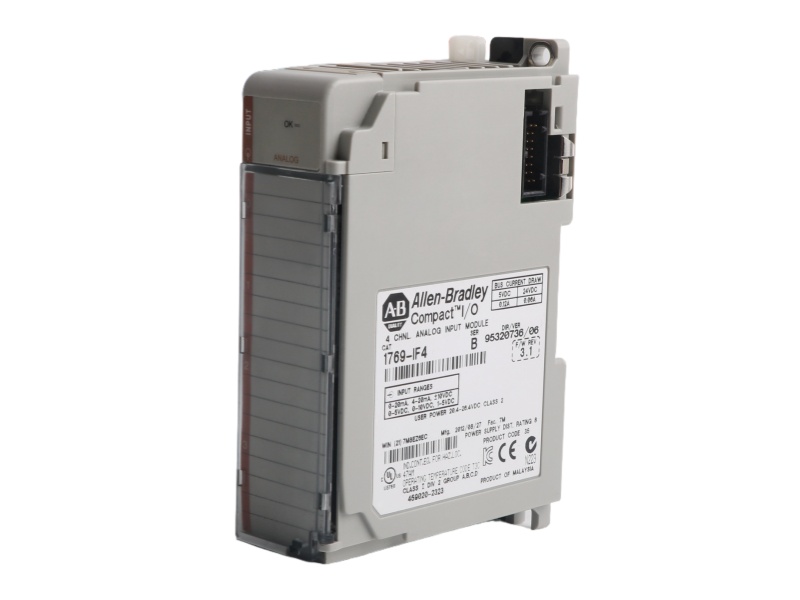

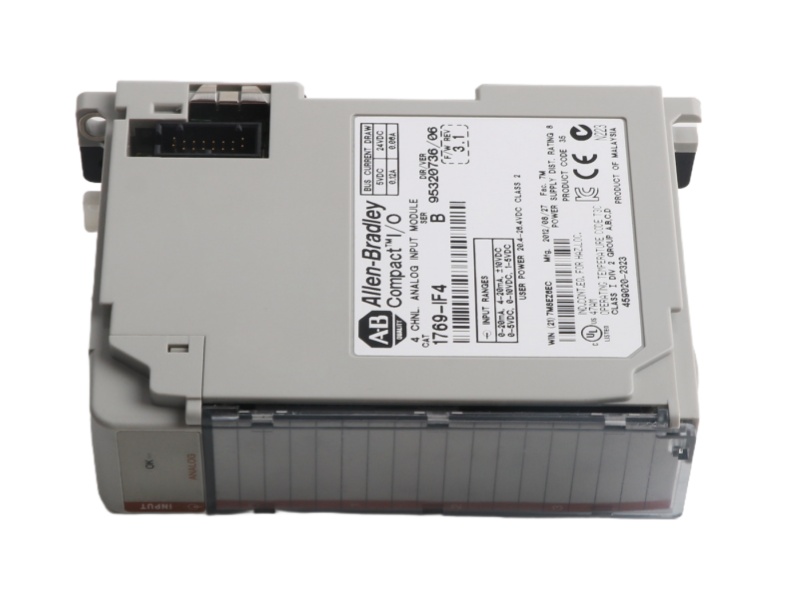

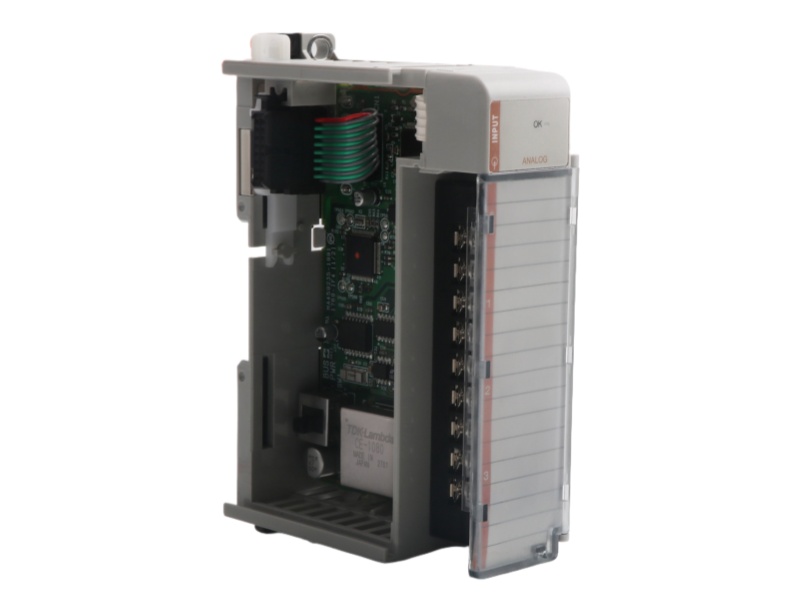

The I/O Module Allen-Bradley 1769-IF4 is a 4-channel analog input module compatible with CompactLogix and MicroLogix 1500 controllers. 1769-IF4 Machine Control Allen-Bradley supports both voltage and current signals, including ranges such as 0-20 mA, 4-20 mA, 0-10V DC, and ±10V DC, with a resolution of up to 14 bits. Each channel can be individually configured for differential or single-ended inputs.
This 1769-IF4 1769 Compact Analog Input Module features open-circuit detection, process alarms, and configurable data formats such as engineering units or scaled values for PID control. It offers high noise immunity with a common-mode rejection ratio greater than 60 dB and normal-mode rejection of -50 dB at 50/60 Hz.
The 1769 Compact I/O Modules ROCKWELL 1769-IF4 requires external power for transmitters and does not provide loop power. It operates within 0 to 60°C and supports wire sizes from 22-14 AWG solid to 22-16 AWG stranded. With dimensions of 87x35x118 mm, it is suitable for DIN rail or panel mounting.
Designed for industrial environments, the ROCKWELL 1769-IF4 Allen-Bradley I/O MODULE withstands vibration up to 5g and shock up to 30g. It includes LED status indicators and supports real-time sampling, making it a reliable choice for precision analog acquisition in automation systems.
