1756-IF16K Product datasheet
|
Model number: |
1756-IF16K |
|
Module Type： |
Analog Input Module |
|
Manufacture: |
Allen-Bradley |
|
Condition： |
Brand New |
|
Range of Product: |
ControlLogix |
|
Lead time： |
In Stock |
|
Weight: |
0.35 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
23.3 x18.3x5.3cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
1756-IF16K Functional Description

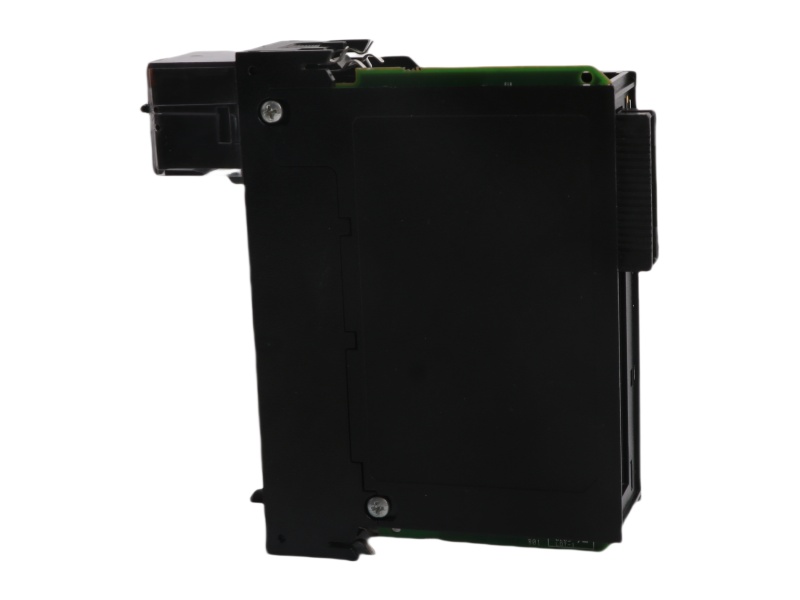

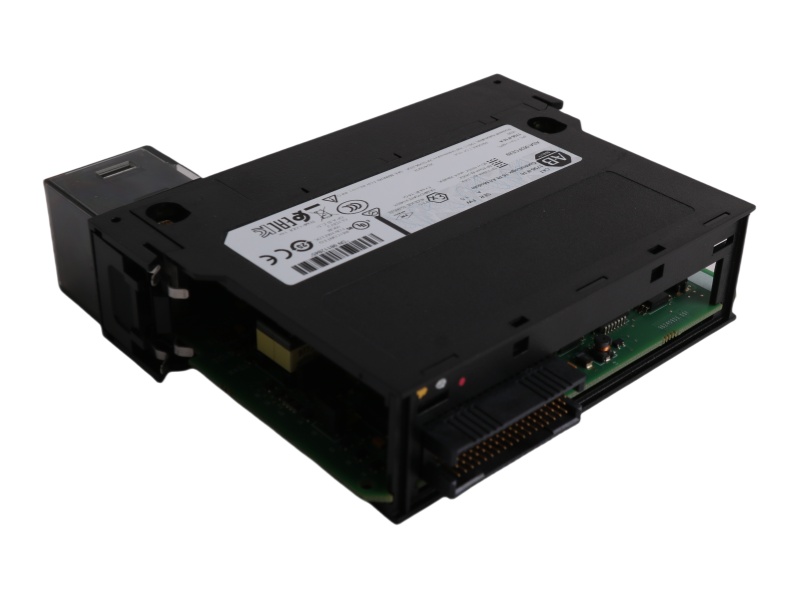

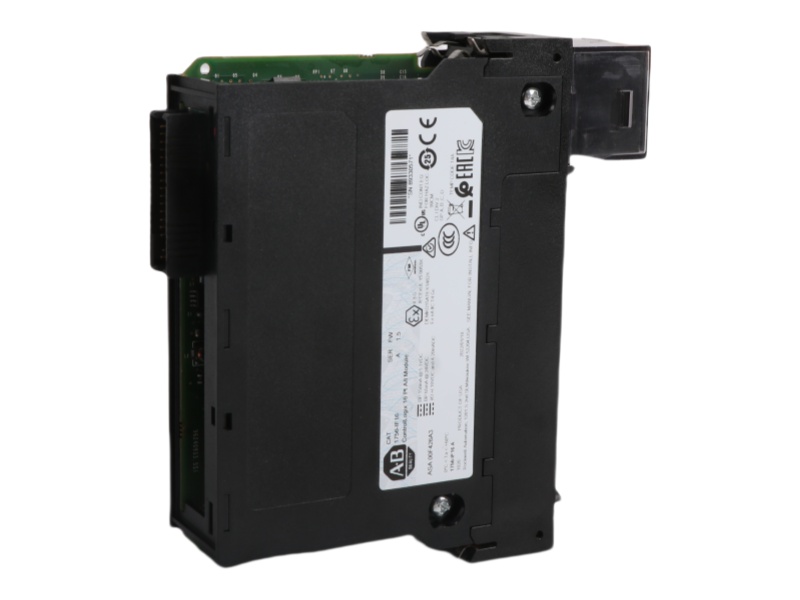

The Allen-Bradley 1756-IF16K Analog Input Module is a versatile analog input module designed for the ControlLogix platform, offering 16 single-ended or 8 differential inputs with high-speed signal processing. This module supports multiple input ranges, including ±10.25V, 0-5.125V, and 0-10.25V, ensuring compatibility with various industrial sensors and transmitters. Its 16-bit resolution provides precise data acquisition for critical automation applications.
Engineered for efficiency, the Allen Bradley 1756-IF16K PDF features low power consumption, with a maximum dissipation of 3.9W (current mode) and 2.3W (voltage mode). The module operates reliably with 150mA (5V) and 65mA (24V) backplane current, making it suitable for energy-conscious systems. Its robust design ensures stable performance in demanding industrial environments.
The AB 1756 ANALOG INPUT MODULE supports removable terminal blocks (1756-TBCH, 1756-TBS6H), simplifying wiring and maintenance. This modularity enhances flexibility in system integration, reducing downtime during configuration changes. The module’s high-speed differential inputs (4 channels) enable rapid signal processing for dynamic control applications.
As a key component in Rockwell Automation’s ControlLogix family, the 1756-IF16K PLC Module/Rack by ALLEN BRADLEY delivers reliable analog signal conditioning for process control, motor monitoring, and data acquisition. Its precision and adaptability make it a preferred choice for engineers seeking high-performance automation solutions.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
