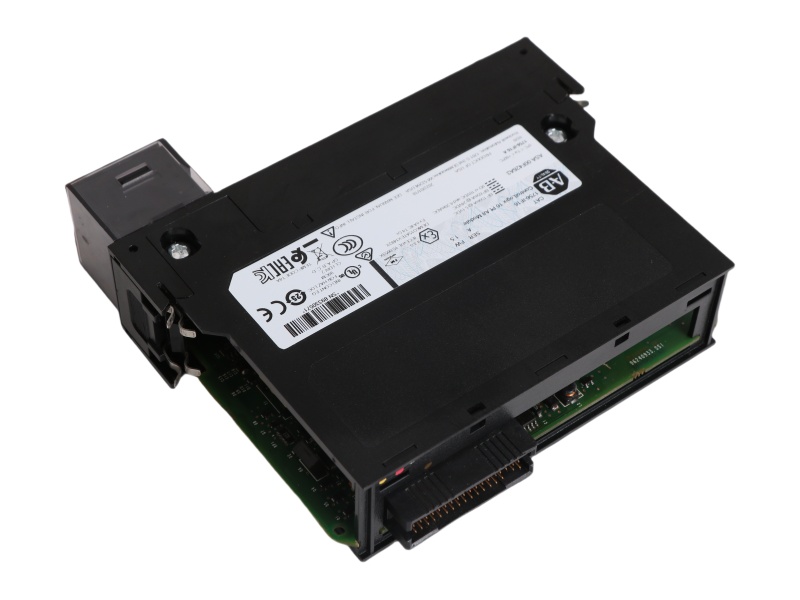

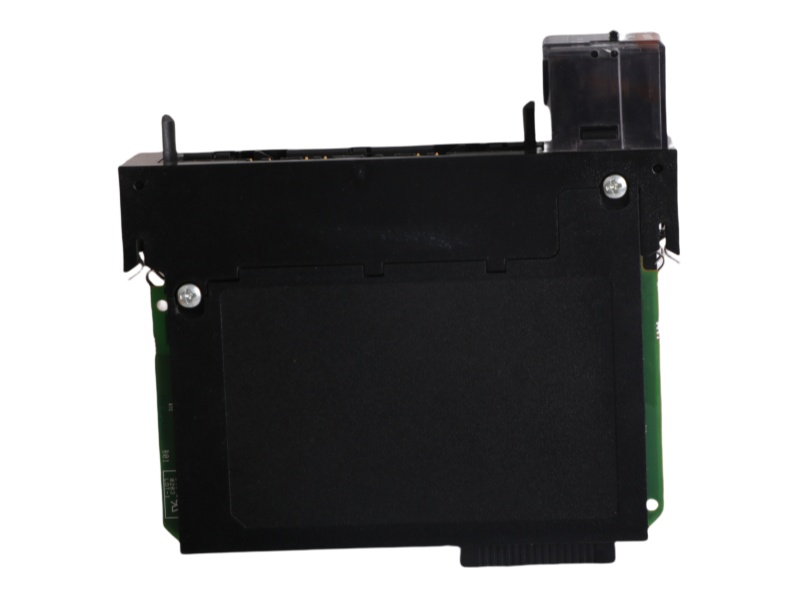

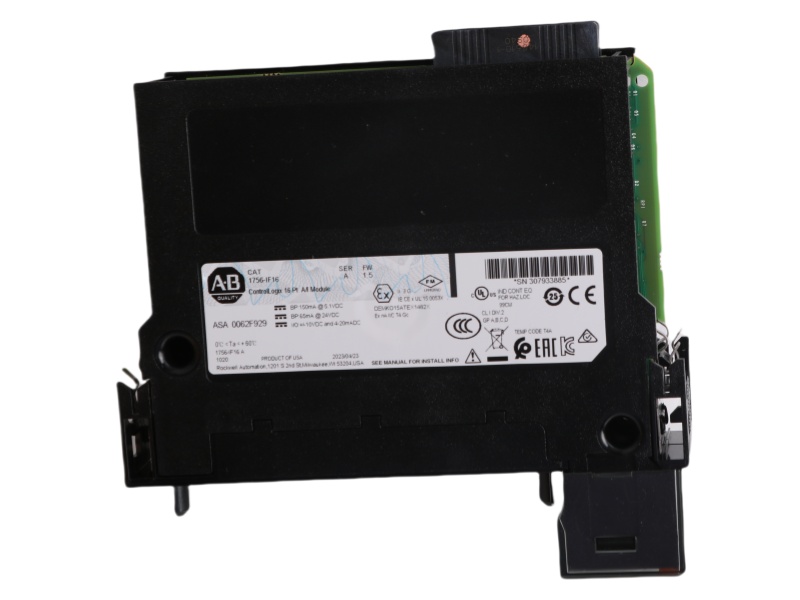

The Allen Bradley 1756-IF16 ControlLogix 16 Pt A/I Module delivers high-fidelity analog input processing for industrial automation systems, supporting 16 channels of voltage (0-10V/±10V) or current (0-20mA/4-20mA) signals. This module achieves ±0.1% basic accuracy across its operating range, making the 1756-IF16 PLC Module/Rack by ALLEN BRADLEY ideal for critical process measurement applications. Its channel-to-channel isolation minimizes cross-talk between signals, ensuring data integrity in electrically noisy environments. The module's robust design handles industrial temperature ranges while maintaining measurement consistency.

As a core component of Rockwell's ControlLogix architecture, the PLCs and Accessories Allen Bradley 1756-IF16 leverages Producer/Consumer technology for efficient data sharing across controllers. The module supports electronic keying to prevent configuration mismatches and offers flexible scaling options for various sensor types. When installed in ControlLogix chassis, the Allen Bradley 1756-IF16 becomes part of a distributed I/O system capable of handling complex automation tasks. Its compact form factor optimizes rack space without compromising functionality.

The Allen Bradley ControlLogix 1756-IF16 incorporates comprehensive diagnostics including open wire detection for current inputs and over-range monitoring. Users can configure individual channel filters (1-60Hz) to optimize response times for different process requirements. These features make the Allen Bradley 1756-IF16 particularly valuable for batch processing, environmental monitoring, and equipment condition tracking applications where signal accuracy is paramount.

From refinery operations to pharmaceutical production, the 1756-IF16 Allen Bradley PDF serves as a reliable interface between field instruments and control systems. The module meets global safety standards while providing the flexibility needed for diverse measurement scenarios. Its combination of high channel density and precision performance establishes the Allen Bradley 1756-IF16 as a preferred solution for engineers designing sophisticated process control architectures.
