TK801V006 3BSC950089R2 Overview

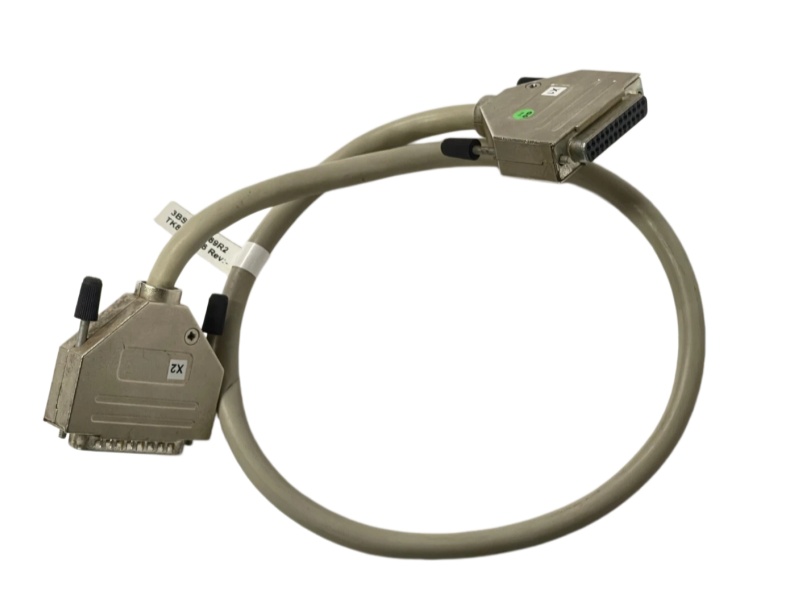

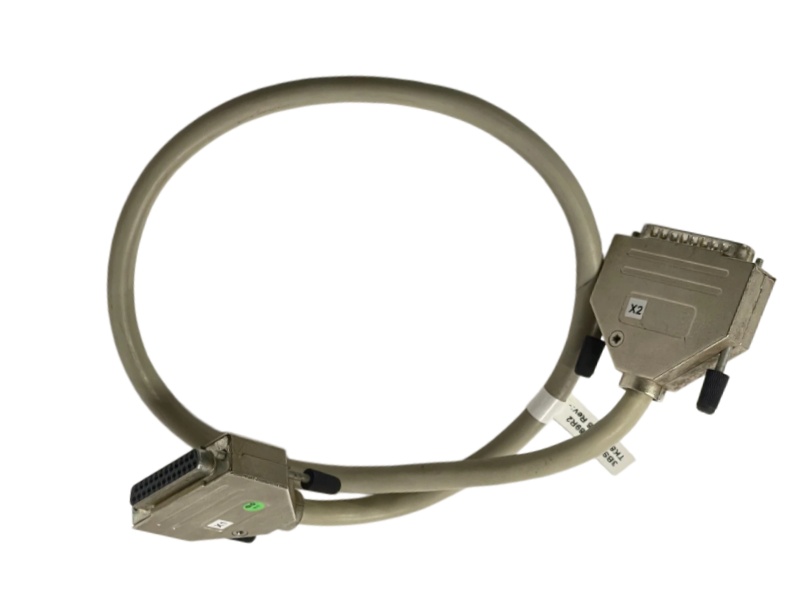

The ABB Modulebus Extension Cable TK801V006 3BSC950089R2 is a shielded 0.6-meter ModuleBus extension cable with D-Sub 25 connectors, enabling flexible I/O module placement across DIN rails.

Key Applications

System Expansion: Extends the ModuleBus to connect modules over a longer distance (0.6 meters).

Flexible Layout: Allows I/O modules on the same bus to be mounted on separate DIN rails for optimized space.

Adapter Connection: Specifically designed for use with TB805/TB845 and TB806/TB846 cable adapters.

Signal Integrity: Its shielded design ensures reliable data transmission in industrial environments.

System Integration: Supports integration within the broader S800 I/O system for modular control.

Standard Option: Serves as one of three standard pre-fabricated cable lengths for the ModuleBus.

FAQ

Q1: What is the length and main purpose of the TK801V006 cable?

A1: It is a 0.6-meter shielded cable used to extend the ModuleBus, allowing I/O modules to be mounted on different DIN rails.

Q2: Which termination adapters are required to use this cable?

A2: It is designed to be used together with the TB805/TB845 and TB806/TB846 ModuleBus Cable Adapters.

Q3: What connector type does the cable have?

A3: It is equipped with D-Sub 25 male-female connectors.

Q4: How does this product relate to other extension cable options?

A4: It is one of three standard lengths, positioned between the 0.3m (TK801V003) and 1.2m (TK801V012) versions.

Q5: Is this cable considered environmentally compliant?

A5: The product's RoHS status is 'No declaration needed' and it is not within the scope of WEEE regulations.
