TK801V003 3BSC950089R1 Overview

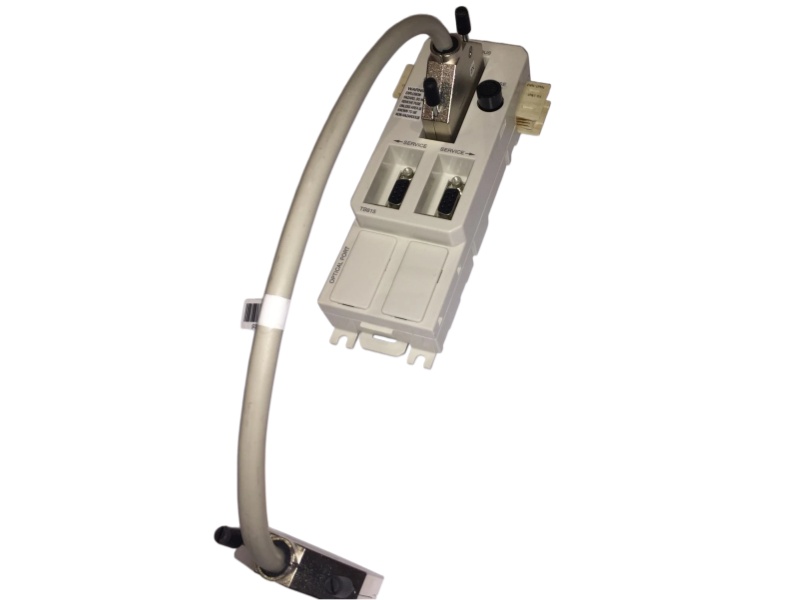

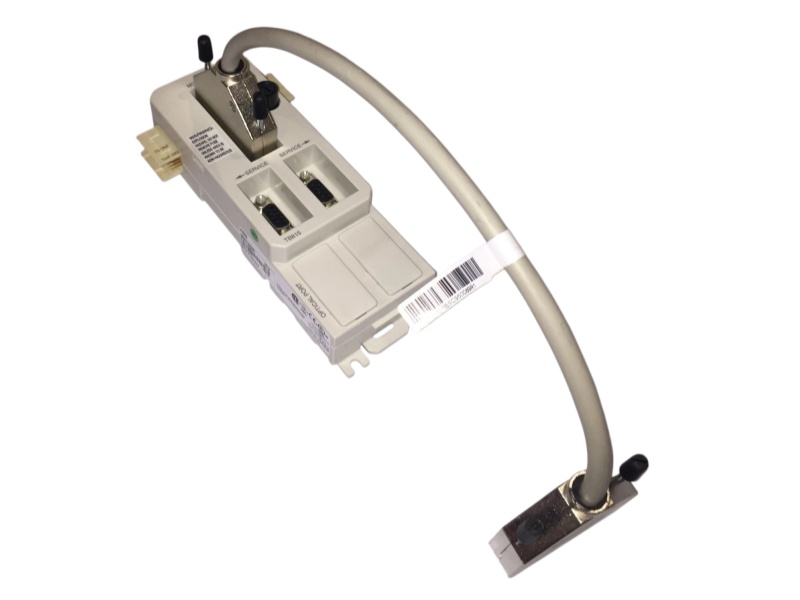

The ABB TK801V003 (3BSC950089R1) is a 0.3-meter shielded ModuleBus extension cable with D-Sub 25 connectors, enabling flexible placement of I/O modules across DIN rails.

Features and benefits

Bus Extension: Extends the ModuleBus by 0.3 meters for flexible I/O module placement.

Compatibility: Works with TB805/TB845 and TB806/TB846 for bus termination.

Shielded Design: Shielded construction ensures reliable data transmission.

Connector Type: Uses D-Sub 25 male-female connectors for secure connections.

High-Speed Support: Supports data rates up to 10 Mbps.

Wide Temperature Range: Operates from -20°C to +70°C, ensuring industrial reliability.

FAQ

Q1: What is the purpose of the TK801V003 cable?

A1: It is a 0.3-meter shielded extension cable used to extend the ModuleBus, allowing I/O modules to be mounted on different DIN rails.

Q2: What termination units is this cable compatible with?

A2: It is designed to be used together with TB805/TB845 and TB806/TB846 termination units.

Q3: What type of connectors does it have?

A3: It is equipped with D-Sub 25 male and female connectors.

Q4: What is its maximum data transmission speed?

A4: It supports a data rate of up to 10 Mbps.

Q5: What is its operating temperature range?

A5: It operates reliably within a temperature range of -20°C to +70°C.
