ABB PM865K01 3BSE031151R1 Processor Unit

Inquiry now

PM865K01 3BSE031151R1 Product datasheet

Model number:	PM865K01 3BSE031151R1	Module Type：	Processor Unit
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	1 kg	HS CODE：	8537101190
Dimension:	19x13.5x13.8cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

PM865K01 3BSE031151R1 Functional Description

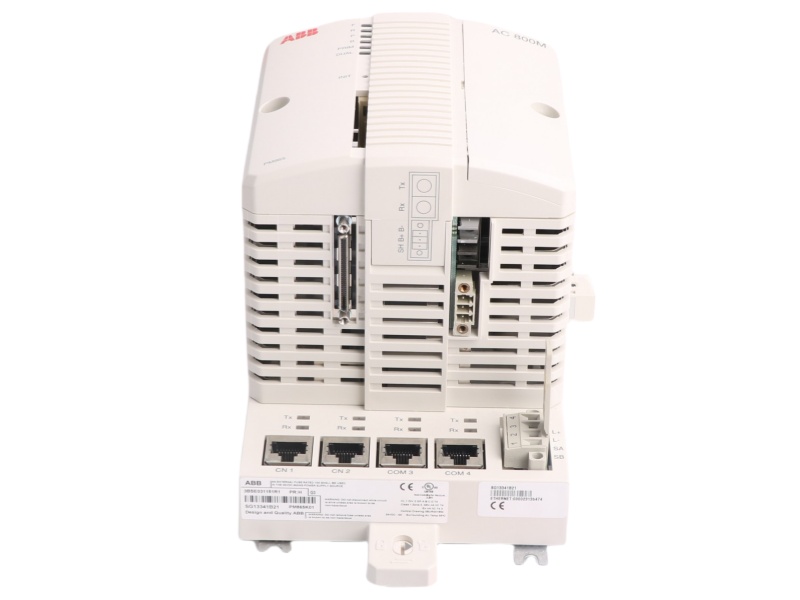

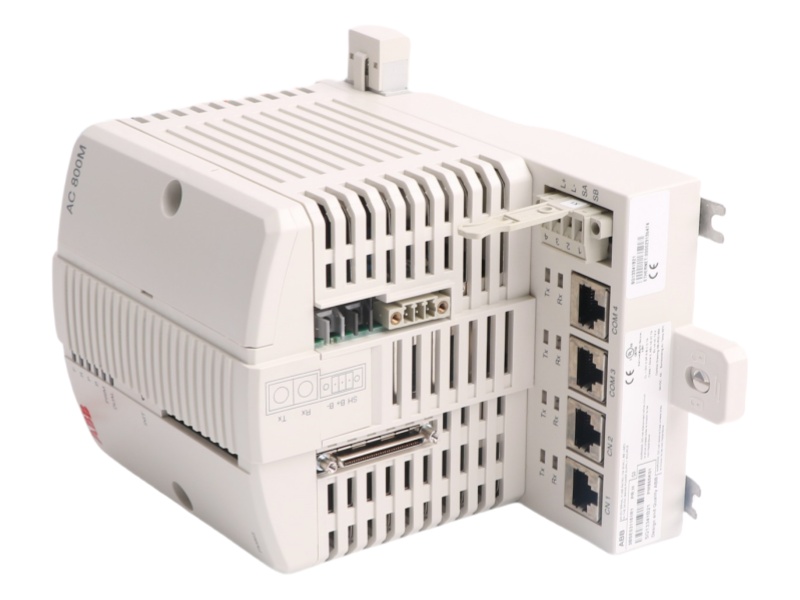

The ABB PM865K01 3BSE031151R1 Processor Unit is a SIL3-certified safety CPU module designed for high-integrity industrial automation systems. This robust processor features a 96MHz clock speed with 32MB memory, ensuring reliable performance in critical applications. As part of ABB's safety solution, it requires strict compliance with the Safety Manual during configuration and installation. Note that this non-RoHS compliant module is intended exclusively for maintenance of pre-July 2017 systems, with new installations recommended to use the PM867K01 model instead.

Operating on 24V DC with 10-20W power consumption, the Control System PM865K01 3BSE031151R1 supports multiple communication protocols including PROFIBUS DP (via optional module), Modbus (RTU/TCP), and OPC UA (firmware-dependent). Its dual 10/100 Mbps Ethernet ports enable seamless network integration. The module maintains stable operation within 0°C to +60°C and withstands storage conditions from -40°C to +70°C, with 5-95% non-condensing humidity tolerance.

The Processor Unit AC800M PM865K01 3BSE031151R1 package includes the PM865 CPU, TP830 baseplate, termination modules (TB850/TB807/TB852), and a memory backup battery (4943013-6). With compact dimensions (19×13.8×13.5cm, 1kg weight), it's designed for easy retrofitting in existing control cabinets. Manufactured in Sweden and shipped from Xiamen, China, it carries tariff code 8537101190 for industrial control equipment.

As a legacy system component, the Pm865k01 S800 I/O Modules is restricted to repair/upgrade of ABB's safety installations. Organizations must meet ABB's qualification requirements for safety system deployments. Its redundant architecture and SIL3 certification make the Advant DCS 800xA PM865K01 3BSE031151R1 ideal for process safety, emergency shutdown systems, and other mission-critical industrial applications.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

ABB	087629-001	ABB	086362-001	ABB	07SS91C2 1SAY130110R0100
ABB	086444-005	ABB	086351-504	ABB	07SK90R1
ABB	IDS-DTU51	ABB	086351-001	ABB	07PS62R2
ABB	08644-005	ABB	086349-002	ABB	07NG63R1 GJV3074313R1
ABB	086387-001	ABB	086348-001	ABB	07NG61R1
ABB	086384-003	ABB	086339-001	ABB	07MK92 GJR5253300R3161
ABB	086369-001	ABB	086329-003	ABB	07KT97 WT97 GJR5253000R4270
ABB	086364-001	ABB	086318-002	ABB	07KT97
ABB	086363-002	ABB	07ZE63R302	ABB	07KT93 GJR5251300R0171
ABB	086363-001	ABB	07ZE61R302 GJV3074321R302	ABB	07KT92 GJR5250500R0262

ABB Processor Unit

The ABB Processor Unit is a high-performance industrial computing core designed for mission-critical automation systems. As the brain of ABB's control solutions, these units deliver deterministic real-time processing for complex industrial applications across power generation, oil & gas, and manufacturing sectors.Key models like the PM865K01 feature dual-core architecture with SIL3 safety certification, operating at 96MHz with 32MB memory. They support multiple industrial protocols including PROFIBUS, Modbus, and OPC UA, with dual 10/100Mbps Ethernet ports for network connectivity. The robust design ensures reliable operation in harsh environments (0°C to +60°C) with redundant power supply (24V DC) options.These processor units typically integrate with ABB's S800 I/O system, featuring modular expansion capabilities. Advanced models include battery-backed memory and support hot-swappable components for maximum system availability. Compliance with IEC 61508/61511 standards makes them ideal for safety instrumented systems.
