Theory of Operation

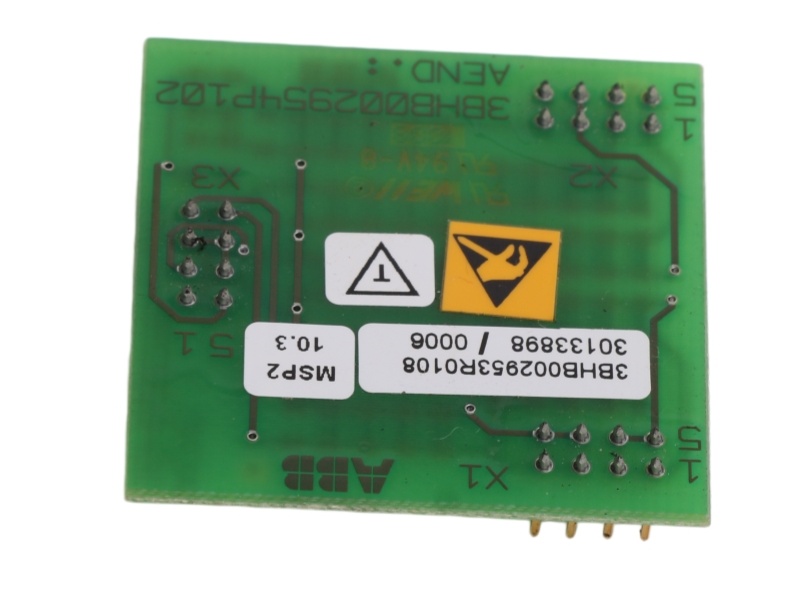

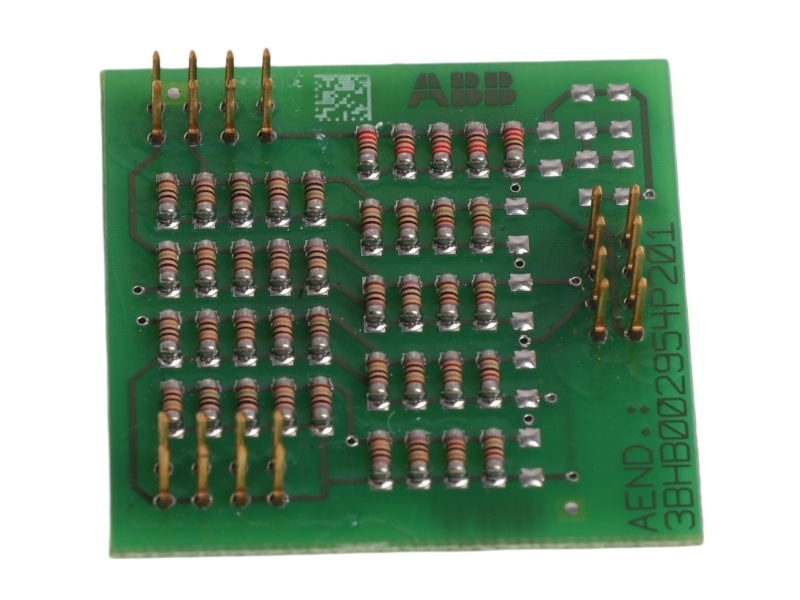

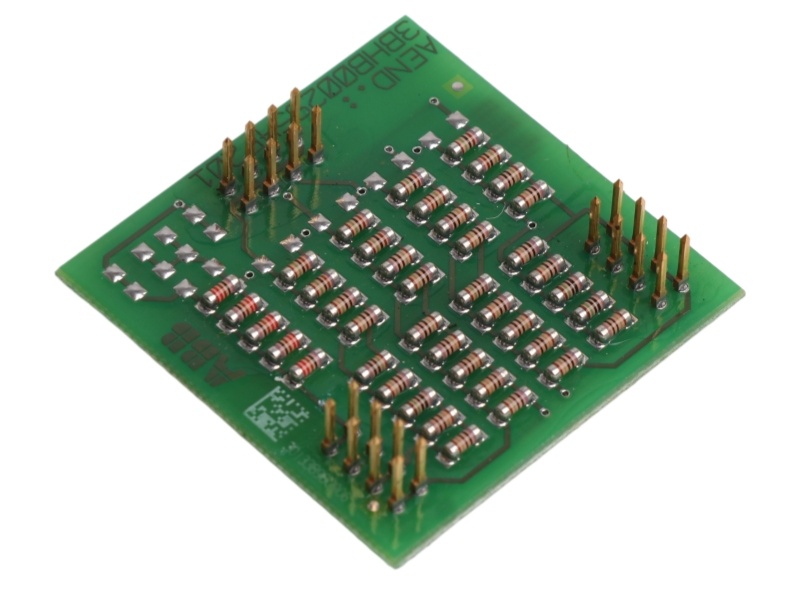

The 3BHB002953R0108 XVC723 AE108 operates as the centralized processing and logic hub within the ABB PEC800/UNITROL excitation framework. The onboard high-speed processor continuously scans incoming real-time grid telemetry—including generator stator voltage and active line current—transmitted from adjacent measurement cards. It executes closed-loop proportional-integral-derivative (PID) regulation algorithms within a dedicated microsecond execution frame. Based on these calculated targets, it modulates the gate pulse commands for the external thyristor bridges to vary the rotor's magnetic excitation field. This dynamic loop maintains terminal voltage stability and power factor compliance against volatile load swings across the high-voltage industrial grid.

Features and Benefits

Ultra-Fast Logic Computation: Driven by a dedicated processor core designed to handle high-frequency control loops in heavy power generation.

Precise Signal Interfacing: Features optimized input/output logic paths to process voltage and current feedback with microsecond-level accuracy.

Robust Network Integration: Supports high-speed fiber optic and bus interfaces to seamlessly bridge master-slave redundant configurations.

Thermal Management Profiling: Engineered with industrial-grade electronic components to resist degradation from high continuous cabinet temperatures.

Comprehensive Internal Diagnostics: Integrated software-monitored error-tracking hardware enables immediate isolation of internal field errors.

Ordering Information

Installation & Troubleshooting FAQ

Q1: What structural steps must be followed when plugging the module into the rack chassis?

A: First, disconnect the main power breakers and wait 5 minutes for bus charges to fully clear. Slide the circuit card uniformly along the plastic subrack rails to ensure the high-density backplane connector rows align perfectly. Once seated, tighten the front-panel captive retention screws to ensure reliable ground continuity.

Q2: Why does the newly swapped XVC723 card flag a firmware conflict error upon system boot?

A: Replacement controller cards are typically delivered with factory-default or baseline testing firmware. You must use the designated ABB software tool to flash the specific firmware revision that matches your system configuration file. Mismatched firmware will prevent proper master-slave synchronization over the system bus.

Q3: How do I handle a complete loss of communication across the fiber optic interface channels?

A: Inspect the fiber cables for excessive structural bending that violates the minimum bend radius. Check the fiber ends for microscopic dust or oil layers using a fiber scope, and clean the optical ports using a dedicated cleaning swab. If the link light remains dark, verify that the Tx and Rx ports have not been cross-wired.

Q4: Can standard electrical contact cleaners be used on the rear backplane pin arrays?

A: Use only high-purity, zero-residue, non-conductive electronic contact cleaners on the high-density rear connectors. Ensure the cleaning spray has completely evaporated before sliding the module back into the live slot. Turning on power near wet solvent traps can bridge adjacent pins and cause localized short-circuits.
