Features and Benefits

High-Level Certification: Certified for safety applications up to SIL 3, PL(e), and Category 4 to meet strict international automation safety compliance.

Dual Network Integration: Combines DeviceNet safety communication with native EtherNet/IP connectivity for seamless machine-to-enterprise data sharing.

Versatile Local Input/Output: Equipped with 16 safety digital inputs and 8 safety digital outputs to monitor critical field sensors and execute emergency stops.

Integrated Testing Channels: Features 4 specialized test pulse sources to perform cross-fault monitoring and wire-off diagnostics on contact devices.

Robust Diagnostic Hardware: Built-in two-digit alphanumeric status display enables rapid local identification of node addresses and error codes.

System Compatibility & Alternatives

System Compatibility:
Fully compatible with DeviceNet safety communication architectures, RSNetWorx for DeviceNet configuration software, RSLinx communication modules, and Class 2 SELV/PELV compliant external 24V DC power networks.

Alternative Model & Differences:
The alternative base variant in the series is catalog number 1752-L24BBB.

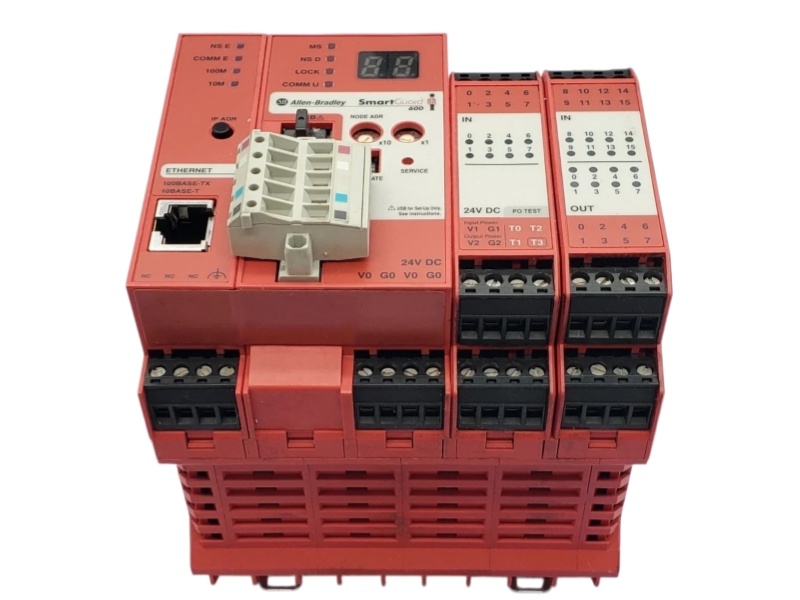

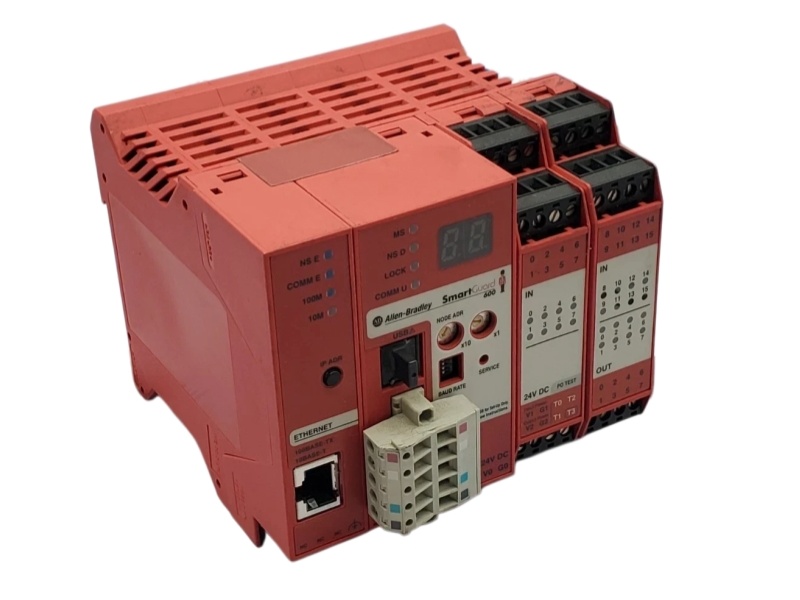

The Difference: The 1752-L24BBBE features an integrated RJ45 Ethernet port that supports 10/100 Mbps EtherNet/IP communication and requires BOOTP/DHCP network addressing configuration. Mechanically, the 1752-L24BBBE is slightly wider (113.0 mm vs. 99.4 mm) and heavier (575 g vs. 460 g), uses an extra DIN rail mounting latch on its base, and incorporates additional front-panel features including an IP address display switch, Ethernet status indicators, and distinct grounding points.

Ordering Information

Installation & Troubleshooting FAQ

Q1: Why does the SmartGuard 600 controller immediately trip and enter ABORT mode after startup?

A: This is typically caused by modifying the hardware switches while the system is live. Always turn off power to the controller before adjusting the rotary node address switches or the communication rate DIP switch. If the unit detects any change in hardware switch state while internal logic circuits are powered, it treats the shift as a major configuration error and enters safety abort mode.

Q2: What is the purpose of the protective debris strip, and when should it be pulled off?

A: The protective debris strip prevents stray copper wire strands, metal shards, or mounting dust from slipping inside the open ventilation slots during structural installation. Leave the strip firmly in place while mounting neighboring hardware and completing all wire terminations. Once all terminal wiring is locked down, you must completely remove the strip before applying power to prevent critical thermal accumulation and overheating.

Q3: How do I resolve a red flashing or solid red indicator on a specific local I/O status terminal?

A: A red I/O light indicates a short-circuit, ground fault, or a discrepancy time error between channels paired in dual-channel safety configuration. Check the external field wiring to confirm that the signal path is not touching a 24V line, isolated from earth frames, and firmly screwed down. Ensure your dual-channel field switches are actuating within their programmed discrepancy interval and that the driven output load does not exceed the rated 0.5 A threshold.

Q4: My EtherNet/IP network configuration indicates a critical 'n4' error on the alphanumeric display. How is this fixed?

A: The local 'n4' error indicates a severe conflict or invalid assignment inside the EtherNet/IP communication stack. This occurs if the BOOTP utility assigned a duplicate IP address already claimed by another live device on the subnet. Launch the Rockwell Automation BOOTP/DHCP Server configuration tool, verify the unique MAC address of the controller, reassign a clear static IP address, and cycle the module power to refresh the stack.
