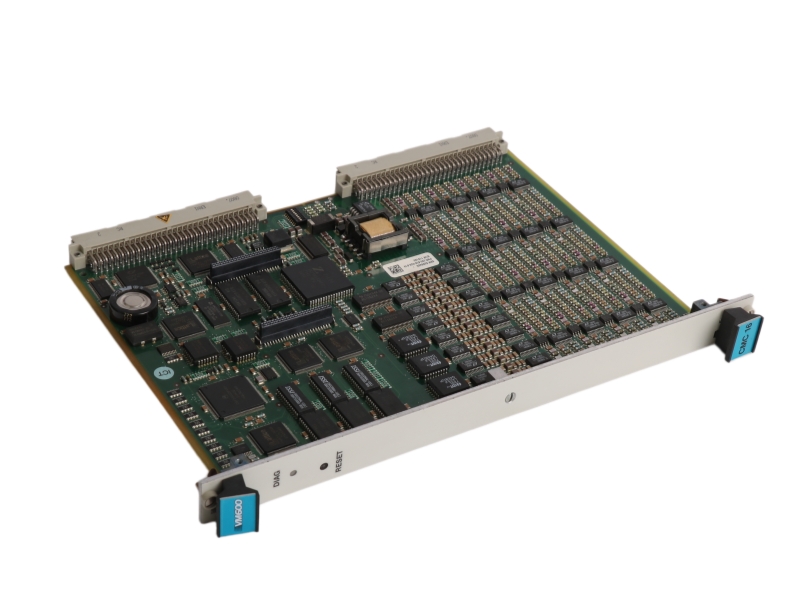

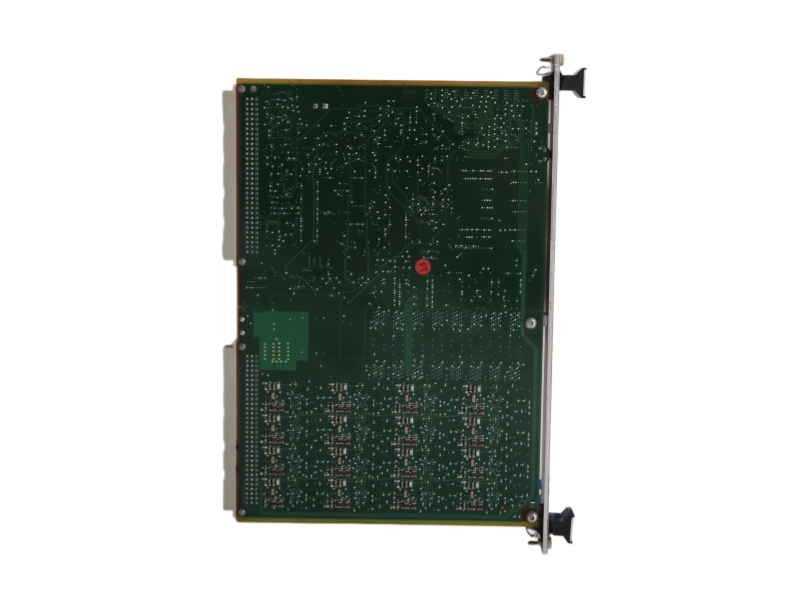

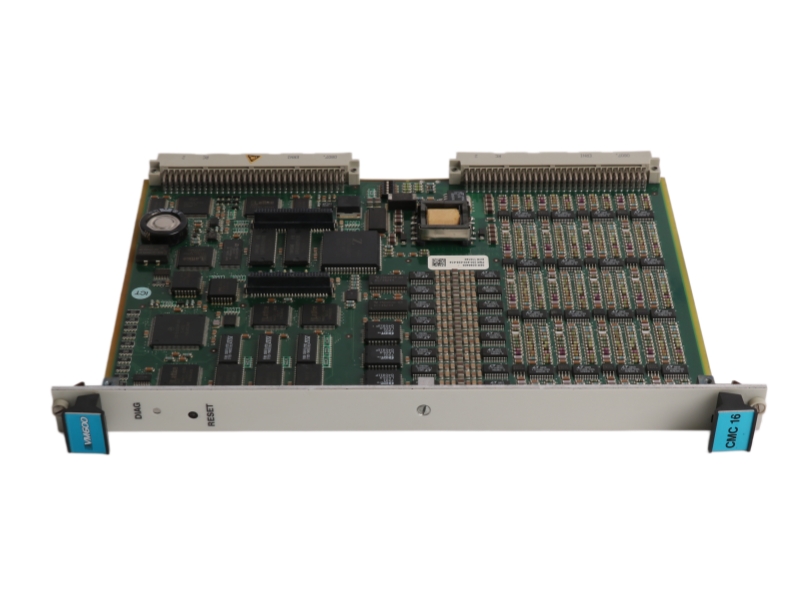

• Specifications

• Dynamic Inputs and A/D Conversion: Features 16 parallel channels with individual 14-bit Analog-to-Digital Converters (ADCs) per channel, achieving a maximum sampling rate of 51.2 kHz and a maximum frequency span of 20 kHz. Data transmitted to the host PC is truncated to 12 bits plus a sign bit, offering a standard resolution of 1 in 4096.
• Signal Accuracy and Filtering: Delivers an AC and DC voltage-based measurement accuracy within 1% of the input Full Scale Deflection (FSD), and a current-based DC accuracy of 2% (improving to 1% with external resistors). Incorporates 16 programmable tracked anti-aliasing filters providing 70 dB of signal attenuation at frequencies greater than 1.56 times the cutoff frequency.
• Flexible Channel Assignment: The first 4 dynamic channels are fully configurable as tachometer or phase reference inputs supporting machine speeds from 15 RPM up to 30,000 RPM with a triggering range of 1 to 24 V pulse. The final 12 channels can be independently reassigned to handle quasi-static process values or standard dynamic signals.
• On-Board Processing and Memory: Driven by a Zilog Z8S180 micro-controller and a Motorola 56002 Digital Signal Processor (DSP) to handle real-time Fast Fourier Transforms (FFT) supporting high resolutions up to 3200 lines. Includes 1 MByte of on-board RAM buffer storage capable of holding 3,276 transient values per channel and up to 26,200 historic trend values for the entire card.
• Power and Physical Footprint: Operates on a standard supply voltage of 5 VDC ±5% with a maximum total power consumption of 15 W. Built around a standard VMEbus architecture with a physical card profile measuring 6 U in height (262 mm), 20 mm in width, and 187 mm in depth, weighing a total of 0.35 kg.

Competitive Advantage

Parallel Processing Architecture: Equipped with 16 dedicated anti-aliasing filters and ADCs to execute simultaneous, parallel signal conversions without multiplexing delays.
Advanced Buffer Storage: Contains an on-board 1 MByte RAM memory buffer to safeguard historic and transient data trends during temporary communication dropouts.
Versatile Channel Configuration: Supports flexible input routing where the first 4 channels handle tacho signals and the last 12 process quasi-static values.
Live Insertion Capability: Enables continuous machinery protection through hot-swappable VME architecture that reconfigures automatically upon card replacement.

Ordering Information Table

Installation & Troubleshooting FAQ

Q1: What happens to on-board monitoring data if the main Ethernet connection to the host PC drops temporarily?
A1: The card utilizes its integrated 1 MByte RAM buffer storage to retain up to 26,200 historic trend values until communication with the host system is fully restored.
Q2: Why must the first four channels be preferred when configuring tachometer or phase reference inputs?
A2: The hardware architecture designates the first 4 dynamic channels with specialized tacho processing circuitry to optimize speed calculations up to 30,000 RPM.
Q3: How does the module prevent high-frequency spectral components from distorting the vibration frequency analysis?
A3: It applies 16 parallel programmable tracked anti-aliasing filters providing an intense 70 dB attenuation to isolate real machinery data from digital signal noise.
