VM600 IOC4T 200-560-000-113 Overview

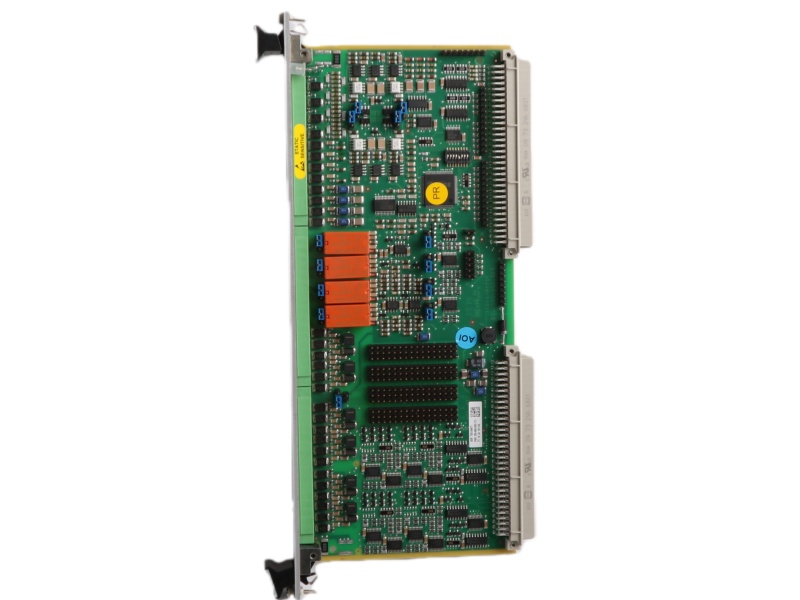

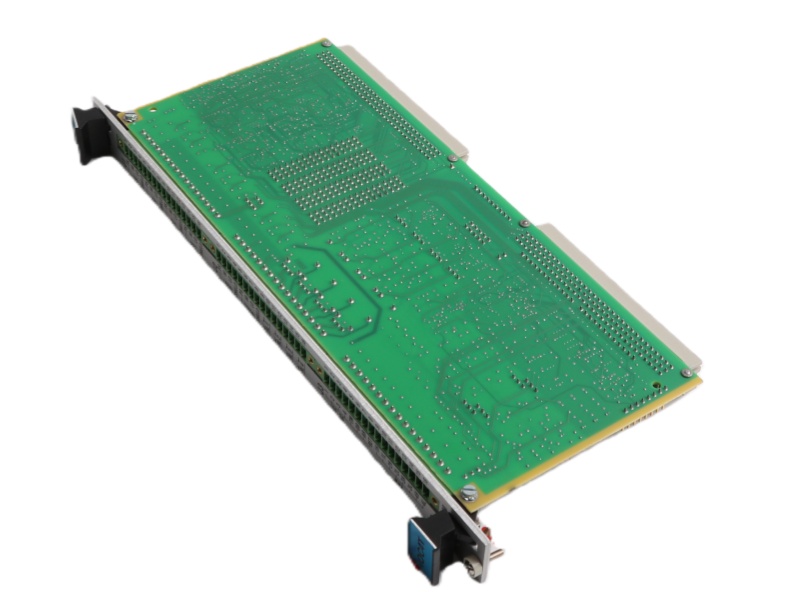

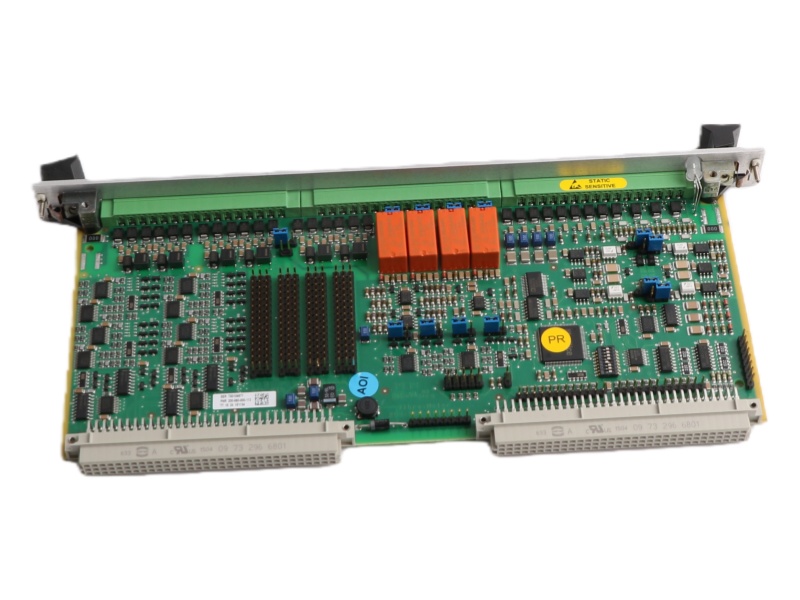

The VIBRO METER VM600 IOC4T 200-560-000-113 IOC4T input /output card is an input/output signal interface card designed for use with the MPC4 machinery protection card. It provides 4 dynamic and 2 tachometer signal channels, analog outputs, and relay controls for comprehensive machinery monitoring.

Features and benefits

• Signal Interface: Acts as the dedicated signal interface for the MPC4 machinery protection card.

• Slave Communication: Operates in slave mode, communicating with the MPC4 via an Industry Pack (IP) interface.

• Input Channels: Handles 4 dynamic signal inputs and 2 tachometer (speed) inputs from field sensors.

• Output Flexibility: Provides analog outputs (0-10V / 4-20mA) for processed vibration data to external control systems.

• Alarm Relay Control: Contains 4 local software-controlled relays for alarm signaling and offers 32 programmable open-collector outputs to drive optional relay cards.

• System Integration: Connects directly to the VM600 rack backplane, enabling data exchange with other system components like CPU and relay cards.

FAQ

Q1: What is VIBRO METER VM600 IOC4T 200-560-000-113?

A1: It’s a turbomachinery condition monitoring I/O module for vibration and mechanical protection.

Q2: Which devices is this module compatible with?

A2: It pairs with MPC4/MPC4SIL protection cards and Direct Logic DL series CPUs.

Q3: What communication protocols does it support?

A3: It supports Ethernet (TCP/IP), Modbus RTU/TCP, and Profinet.

Q4: What’s its operating temperature range?

A4: It works in -40°C to 70°C, suitable for harsh industrial environments.

Q5: Does it have EMI protection?

A5: Yes, it provides electromagnetic interference (EMI) protection for all inputs and outputs.
