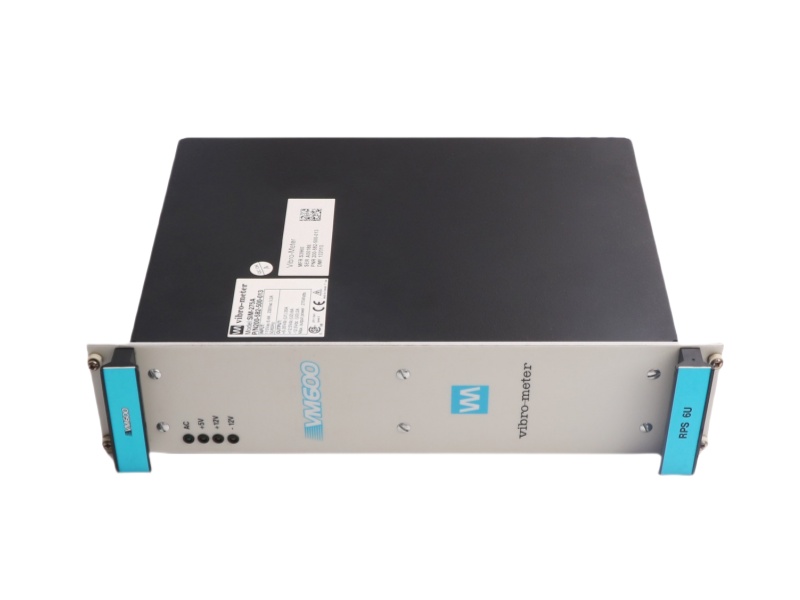

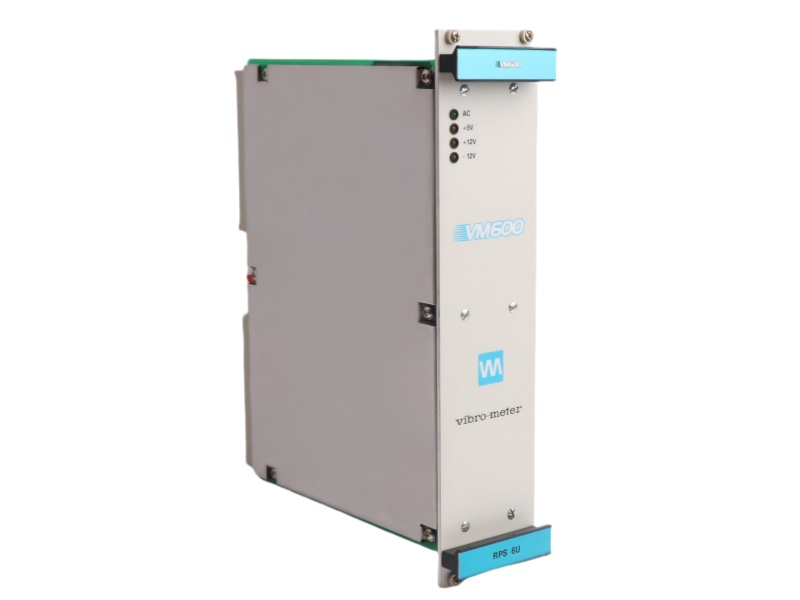

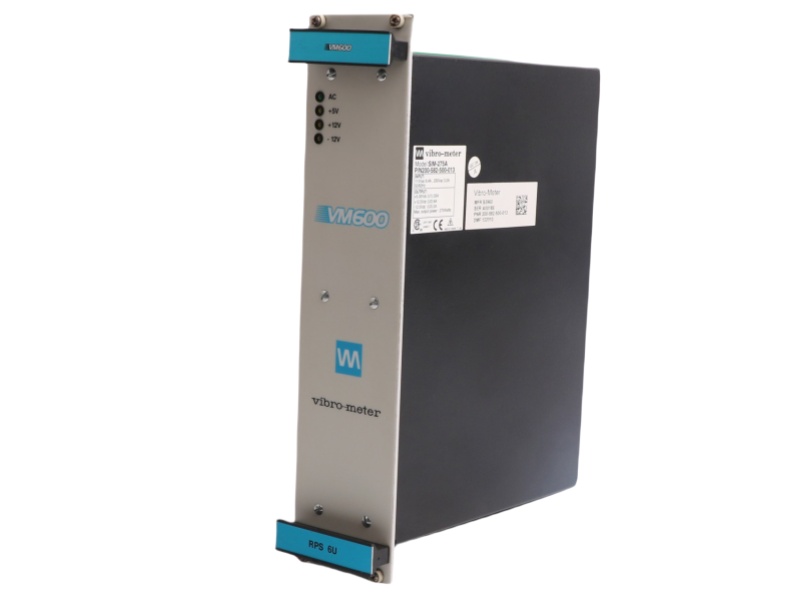

The VM600 RPS6U SIM-275A Power Supply Module is a high-performance rack power supply designed for critical machinery protection systems. As part of the VM600 series monitoring solutions, this robust power module delivers reliable +5VDC and ±12VDC outputs to support a full rack of monitoring cards in demanding industrial environments. The VIBRO-METER SIM-275A 200-582-500-013 installs in standard 6U 19" racks, connecting directly to the VME bus backplane through high-current connectors for optimal power distribution.

Engineers can configure the Rack Power Supply VIBRO-METER SIM-275A 200-582-500-013 in either single or dual power supply arrangements. A single unit provides 330W capacity for standard operations up to 50°C (122°F), while dual units enable fully redundant operation - if one VIBRO-METER SIM-275A 200-582-500-013 fails, the second automatically maintains 100% system power. This redundancy significantly enhances system availability for continuous machinery monitoring applications where uptime is critical.

The SIM-275A 200-582-500-013 Imported Servo supports wide input voltage ranges for both AC and DC mains power sources. An integrated power supply check relay provides operational status monitoring, while optional ASPS auxiliary units can supplement +24VDC outputs for external sensors. The VIBRO-METER 200-582-500-013 Output Card is particularly valuable in high-temperature environments where power derating may be required, with dual-unit configurations maintaining performance beyond standard temperature limits.

Ideal for power generation, oil & gas, and heavy industrial applications, the Meggitt SIM-275A 200-582-500-013 Rack Power Supply ensures uninterrupted operation of vibration monitoring and protection systems. Its rugged design and flexible configuration options make it suitable for both standard and extreme operating conditions, providing engineers with reliable power solutions for mission-critical machinery monitoring installations.
