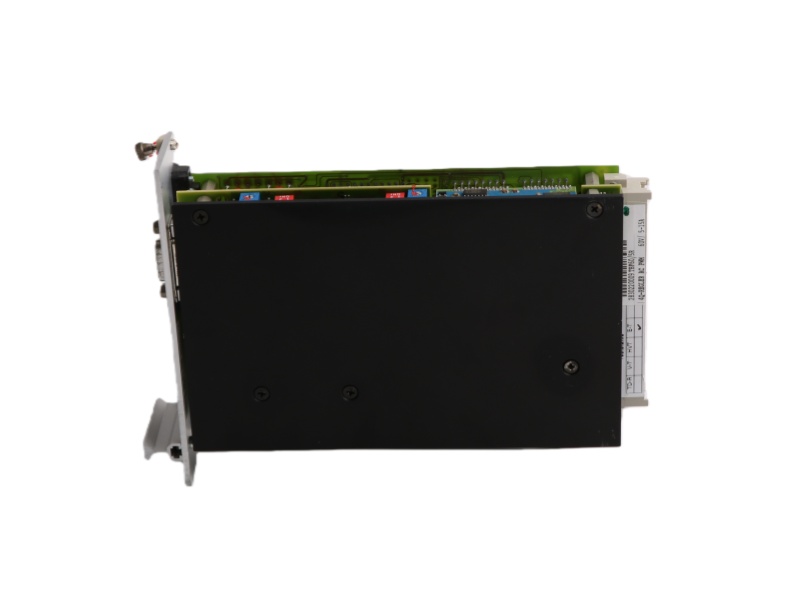

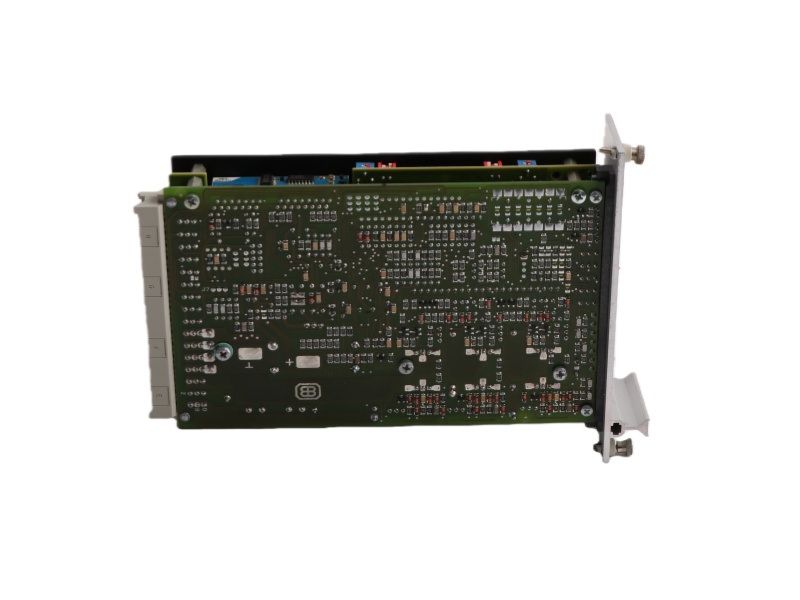

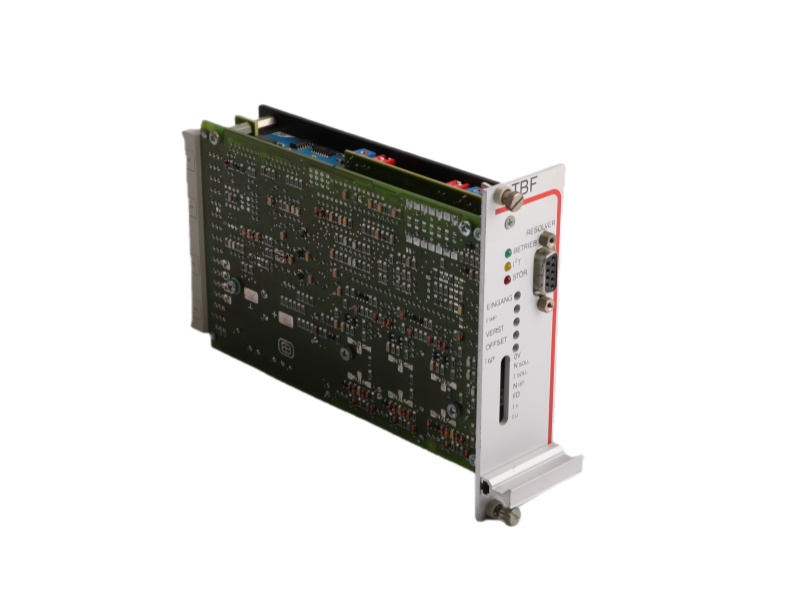

The 701-00600-8 PARKER PROPORTIONAL AMPLIFIER CARD represents a sophisticated proportional amplifier card specifically engineered for the 4VP01 series of proportional pressure relief valves, forming an integral component in advanced hydraulic control systems. This electronic module is factory-configured and sealed to ensure consistent performance characteristics across multiple valve units, providing precise electrical signal conversion that directly correlates to hydraulic pressure output. The technical implementation of the Control Unit 701-00600-8 PARKER enables separate adjustment capabilities for both pressure-rise and pressure-fall response times, allowing system integrators to fine-tune valve performance according to specific application requirements.

Designed for seamless integration with direct-operated proportional solenoids, the PARKER 701-00600-8 Control Unit converts standard electrical input signals into precisely controlled solenoid currents that generate corresponding mechanical forces on the valve cone. This proportional relationship maintains system pressure in direct correlation to the electrical command signal, with the advanced electronics of the module ensuring linearity within 2.8% and hysteresis of ±1.5% across the operational range. The robust electrical design incorporates reverse polarity protection and features a short-circuit protected PWM output stage with maximum current limiting for enhanced system reliability.

The operational flexibility of the PARKER 701-00600-8 Proportional Pressure Control extends through multiple configurable parameters accessible via DIP switches and potentiometers on the main printed circuit board. These include independent adjustment of ramp-up and ramp-down functions, maximum pressure calibration, and minimum pressure settings that activate specialized "Imin-leap" functionality when input signals drop below 2% of maximum command value. The comprehensive diagnostic capabilities of the module incorporate multiple LED indicators that continuously display power status, ramp function activation, and fail-safe conditions during short-circuit events or external stop commands.

Installation and maintenance efficiency are significantly enhanced through the thoughtful design of the high-performance electronic control unit 701-00600-8 PARKER, which includes dedicated measurement sockets for monitoring both solenoid current and command voltage during system operation and troubleshooting procedures. The proven reliability of the module establishes it as a critical interface component in industrial hydraulic systems requiring precise pressure control, with particular application in manufacturing machinery, mobile equipment, and industrial automation where proportional pressure regulation directly impacts operational safety and process efficiency.
