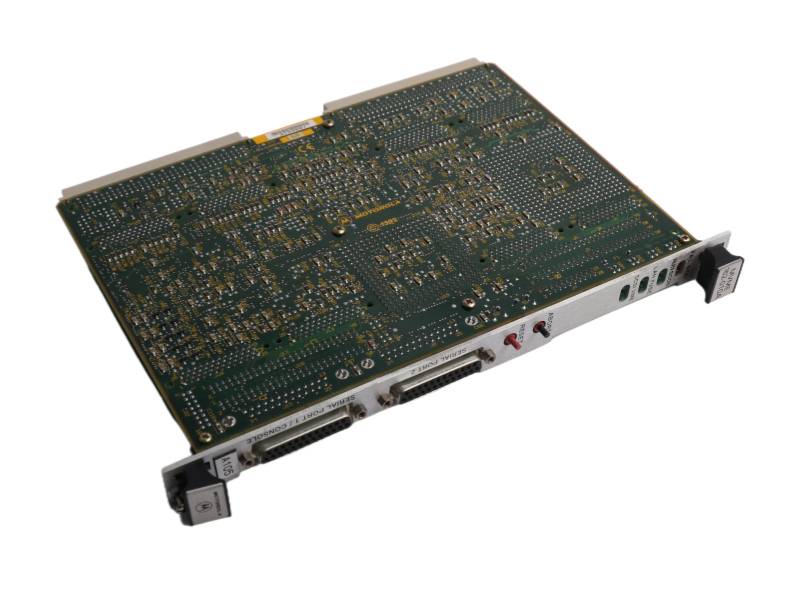

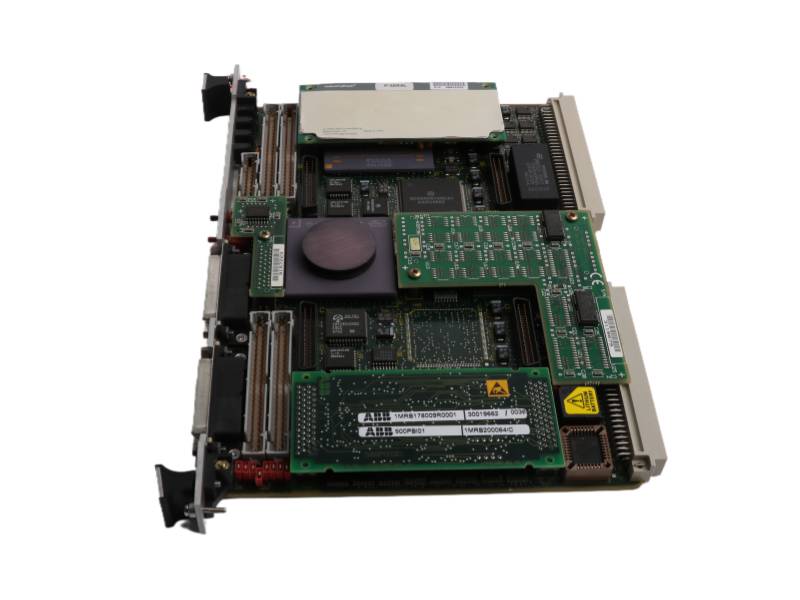

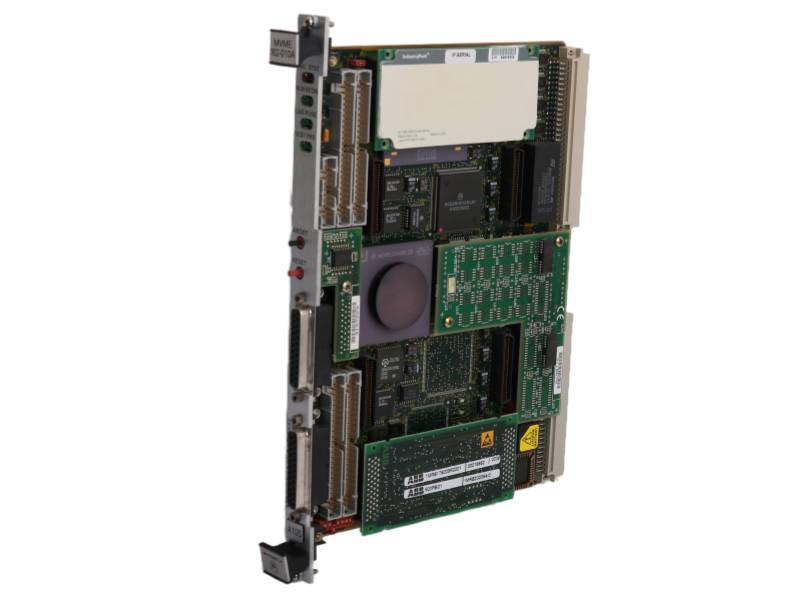

The manual VME Board MVME162P-244L MOTOROLA VME Embedded Controller Installation and Use offers comprehensive guidance for hardware setup, installation, and firmware startup for the MVME162P series, including the MVME162P-244L Motorola VME BOARD MOTOROLA. It includes a detailed hardware overview and essential preparation steps tailored to these embedded controllers.

These boards are collectively referred to as Motorola MVME162P-244L Embedded control board due to their integration of the “Petra” ASIC and support for up to four IP modules. The Petra chip consolidates functions from earlier MC2, IP2, and MCECC chips into a single integrated circuit. It may feature either the first or second-generation Petra ASIC, with “PA” in the part number indicating the newer version.

This document is designed for OEM system designers, engineers expanding compatible systems, and laboratory technicians. Users are expected to have a foundational understanding of computer architecture and digital logic. The MOTOROLA MVME Industrial Control Module 162P-244L serves as a robust embedded controller suitable for complex integrated applications.

For further technical details, readers are directed to the related publications listed in Appendix E. The MVME 162P-244L CPU BOARDS FROM EMBEDDE remains a versatile and high-performance solution for industrial embedded computing, reflecting MOTOROLA MVME162P-244L's ongoing relevance in specialized electronic environments.
