EVS9324-EP Overview

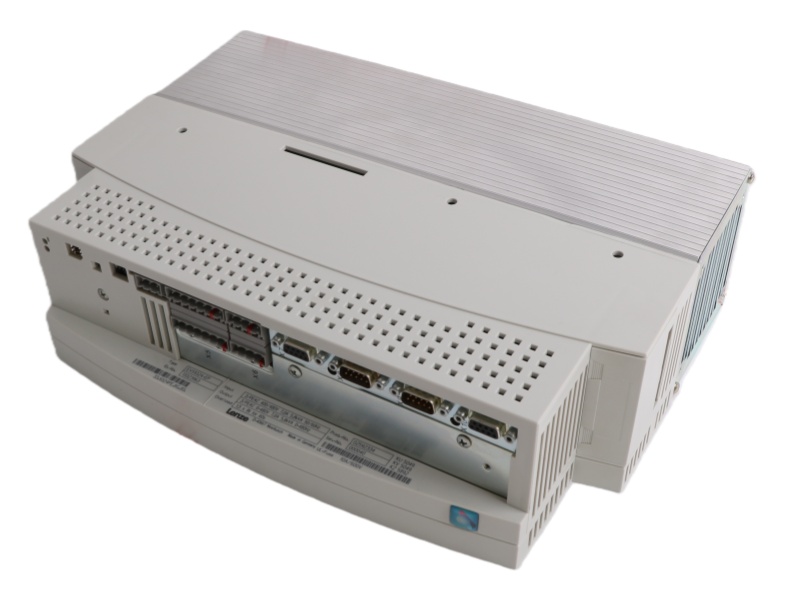

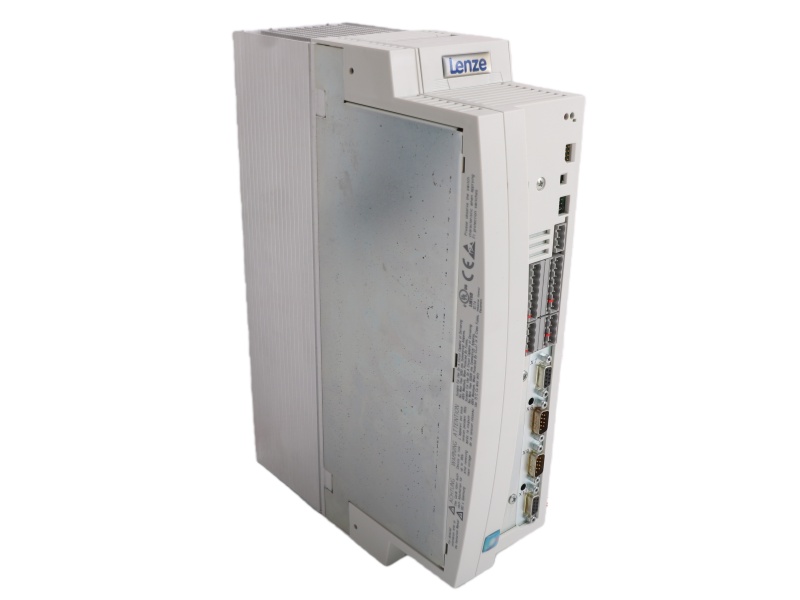

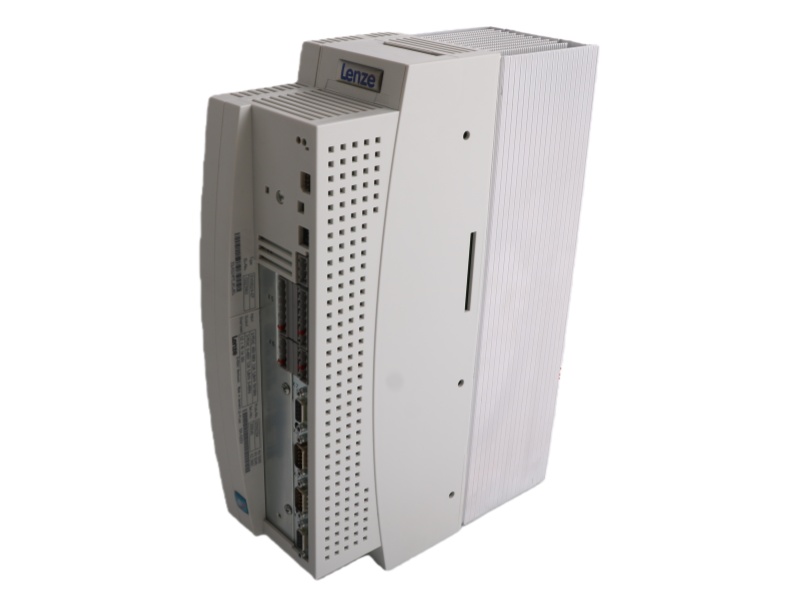

The EVS9324-EP Lenze servo inverter axis module is a 3 kW servo inverter module from Series 9300, featuring a wide input voltage range and high braking capacity for demanding motion control applications with induction motors.

Features and benefits

• High Performance: 3 kW servo inverter for 4-pole asynchronous motors, supporting demanding motion control tasks.

• Robust Power Handling: Rated output current of 7.0 A (8 kHz) and a peak output current of 10.5 A for dynamic load requirements.

• Exceptional Braking Capacity: Features high brake chopper power (11 kW continuous, 25 kW peak) for fast and safe deceleration.

• Flexible Power Supply: Wide input voltage range (3/PE AC 320–528 V or DC 460–740 V) for versatile installation.

• Configurable Operation: Adjustable switching frequency (8 kHz default, 16 kHz) to optimize performance and efficiency.

Applications

3 kW 4‑pole asynchronous motor control for precise servo axis motion.

320–528 V AC / 460–740 V DC industrial mains & backup power systems.

High‑dynamic positioning in automation with 8/16 kHz switching.

Regenerative braking up to 25 kW peak for deceleration control.

Space‑constrained installations (350×97×250 mm, 5 kg).

Shielded motor cable setups up to 50 m in factory automation.
