T8800C Product datasheet
|
Model number: |
T8800C |
|
Module Type： |
Digital Input Module |
|
Manufacture: |
ICS Triplex |
|
Condition： |
Brand New |
|
Range of Product: |
ICS Triplex |
|
Lead time： |
In Stock |
|
Weight: |
1.28 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.1x30.5x26.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
T8800C Functional Description

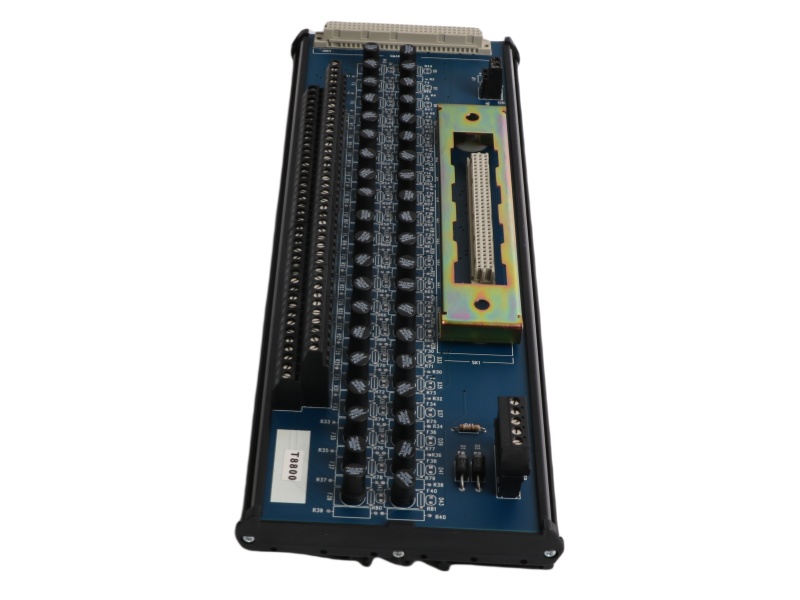

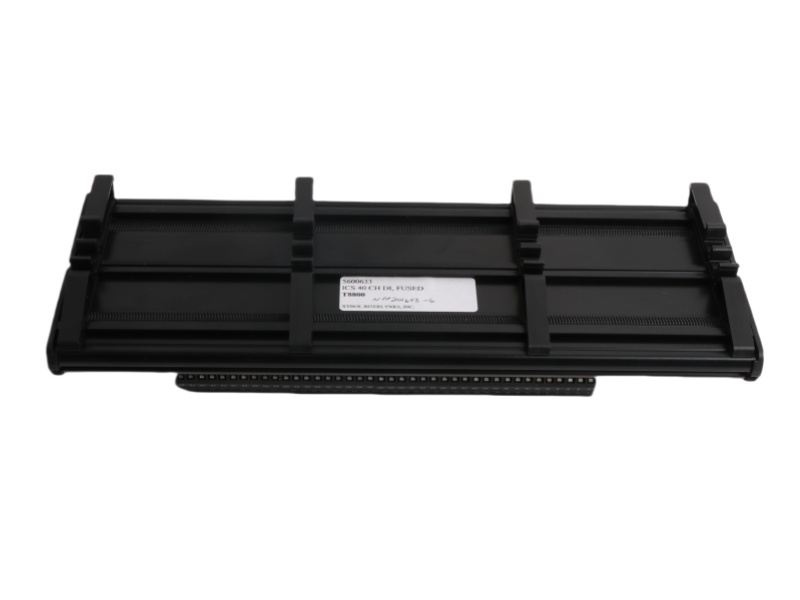

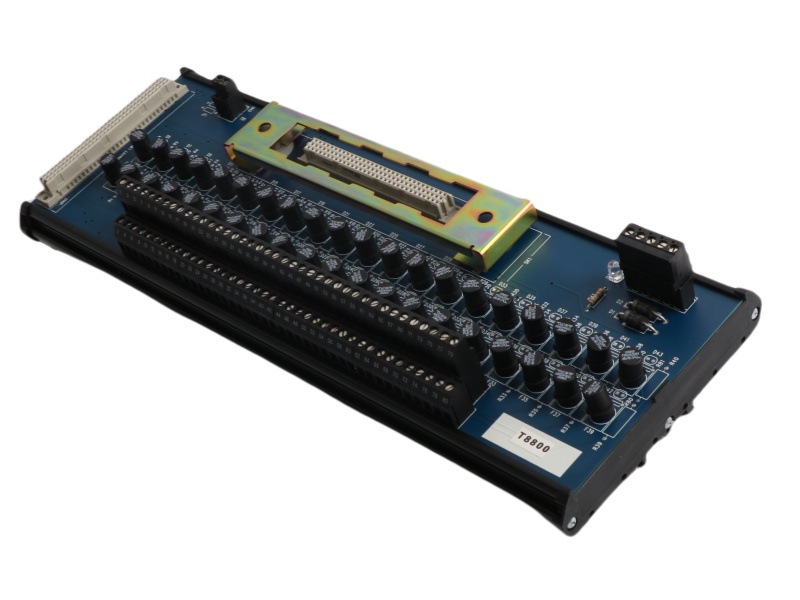

The ICS Triplex T8800C Digital Input Module is a robust 40-channel digital input Field Termination Assembly (FTA) designed for critical industrial applications. This reliable ICS Triplex T8800C unit provides secure termination for 24V DC field devices, featuring dual power feeds with diode protection for continuous operation. Each channel in the ICS Triplex T8800C is individually fused at 50mA, ensuring safe current limitation while maintaining precise signal integrity.
The ICS Triplex T8800C Advanced Industrial Control Module operates across an 18-32V DC range with clear logic thresholds (≥15V for '1', ≤5V for '0'). Its 4kΩ input impedance and 6mA typical current draw per channel make the ICS Triplex T8800C exceptionally efficient for large-scale digital input systems. The unit's green LED power indicators provide instant visual confirmation of operational status.
The ICS Triplex T8800C incorporates advanced line monitoring capabilities, detecting field loop conditions including open circuits, short circuits, and alarm states. This functionality makes the T8800C Triple Input Module ICS Triplex ideal for safety-critical applications requiring comprehensive diagnostics in harsh industrial environments.
The T8800C ICS Triplex PDF represents the industry standard for digital input termination, combining high channel density with robust protection features to create a complete solution for modern industrial control systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
ICS Triplex |
T3411F |
ICS Triplex |
T9852 |
ICS Triplex |
T8431 |
|
ICS Triplex |
T3411 |
ICS Triplex |
T9851 |
ICS Triplex |
T8403 |
|
ICS Triplex |
T9881 |
ICS Triplex |
T9832 |
ICS Triplex |
T8311 |
|
ICS Triplex |
T3431 |
ICS Triplex |
T9802 |
ICS Triplex |
T8310C |
|
ICS Triplex |
T3491 |
ICS Triplex |
T9482 |
ICS Triplex |
T8232 |
|
ICS Triplex |
T3310 |
ICS Triplex |
T8480 |
ICS Triplex |
T8151B |
|
ICS Triplex |
T9432 |
ICS Triplex |
T8461CX |
ICS Triplex |
T8122 |
|
ICS Triplex |
T9451 |
ICS Triplex |
T8461C |
ICS Triplex |
T8110B |
|
ICS Triplex |
T9310-02 |
ICS Triplex |
T8461 |
ICS Triplex |
T7481A |
|
ICS Triplex |
T9300 |
ICS Triplex |
T8431C |
ICS Triplex |
T3481A |
Trusted 40 Channel 24 Vdc Digital Input FTA
The Trusted 40 Channel 24 Vdc Digital Input Field Termination Assembly T8800 provides termination for a maximum of 40 input channels from various types of field devices which generate a digital input. The supply for the field is derived from dual 24 Vdc feeds which are ‘commoned’ via diodes on the FTA. Indication of the presence of the power supply is provided by a green LED. The supply is then fed to each channel.
The supply voltage to the field is fed via the 50 mA fuse. This effectively limits the current in the field loop. The incoming signal (digital) from the field device is fed directly to the digital input module. Line monitoring components (if required) provide the necessary thresholds used by the input module to detect the field loop/device status, i.e. open/short circuit, alarm etc.
