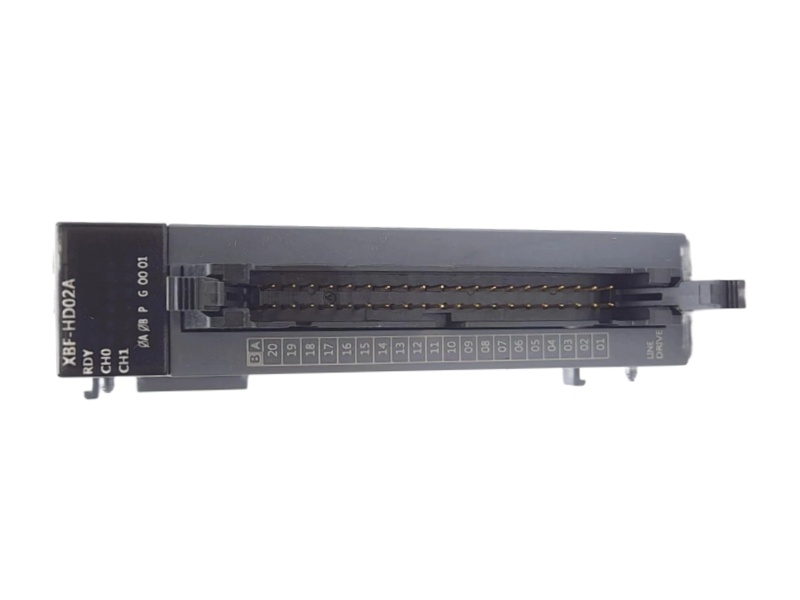

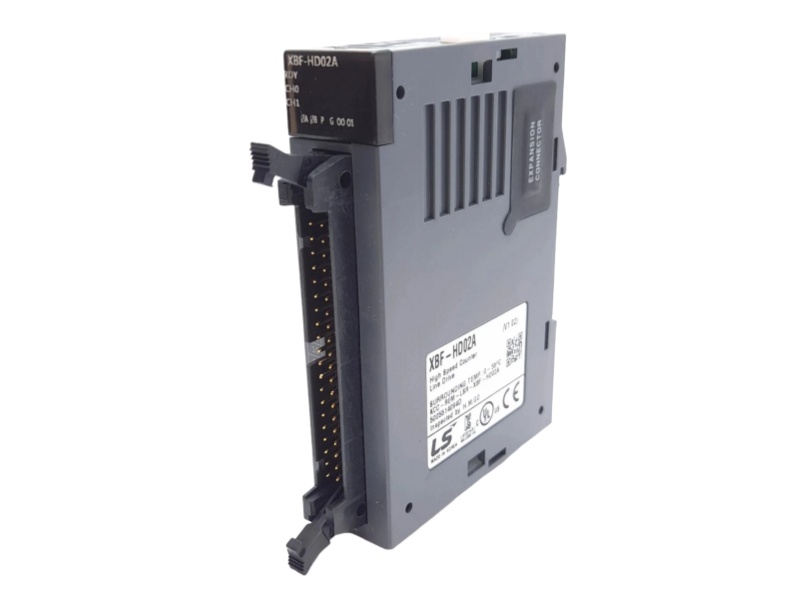

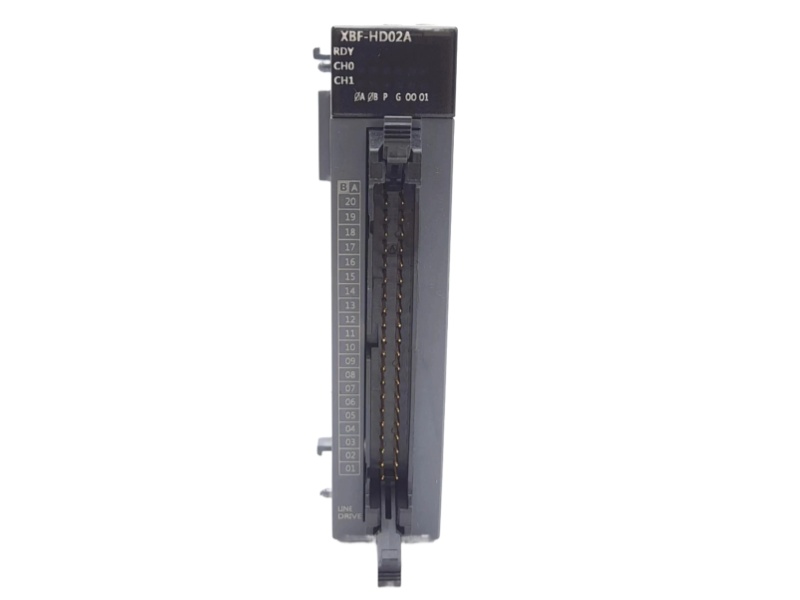

The Honeywell MLF-HD02A 2-channel High-speed counter input is a high-performance high-speed counter module designed for precise frequency measurement and rapid pulse counting in industrial automation systems. This versatile module supports multiple input modes including 1-phase, 2-phase, and CW/CCW input configurations, providing flexibility for various encoder and sensor applications.

The High Speed Counter Module MLF-HD02A Honeywell features differential input capability with RS-422A Line Drive and HTL LEVEL Line Drive compatibility, ensuring reliable signal acquisition in electrically noisy industrial environments. With an impressive maximum counting speed of 500 kpps for RS-422A signals and 250 kpps for HTL inputs, this module delivers exceptional performance for high-speed applications.

Engineered for robust operation, the MLF-HD02A High Speed Counter Module Honeywell incorporates a 40-pin connector for secure external I/O connections, maintaining signal integrity while simplifying installation and maintenance procedures. The module's 32-bit signed counter range provides extensive counting capacity, suitable for long-duration processes and high-resolution positioning applications. Supporting control signal levels of DC 5V, 12V, and 24V, the HONEYWELL MLF-HD02A offers broad compatibility with various industrial sensors and encoding devices. Its fixed 64 I/O point assignment ensures seamless integration within the MasterLogic control architecture.

The Module MLF-HD02A Honeywell demonstrates excellent reliability in demanding conditions, consuming 260 mA while maintaining stable operation across diverse industrial scenarios. This high-speed counter module exemplifies Honeywell's commitment to precision and durability in automation components, providing accurate data acquisition for critical process monitoring and control applications where rapid pulse counting and frequency measurement are essential for system performance and operational efficiency.
