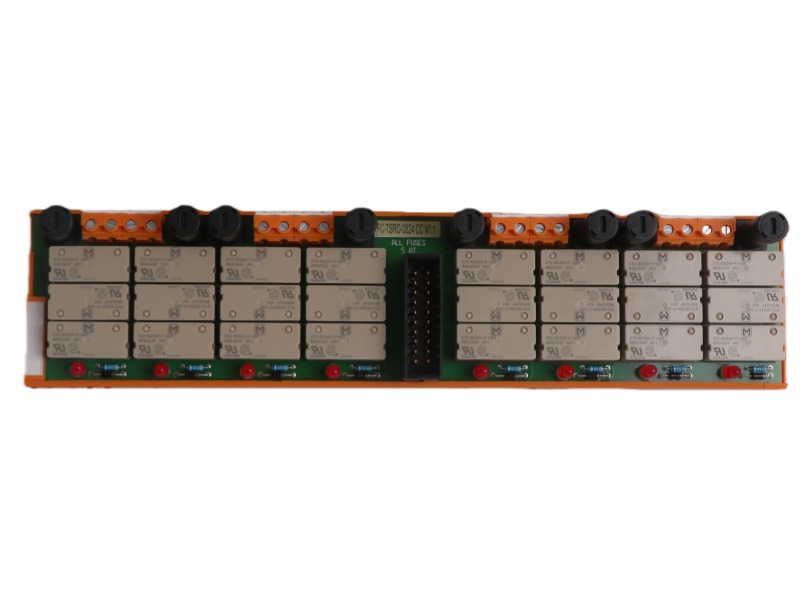

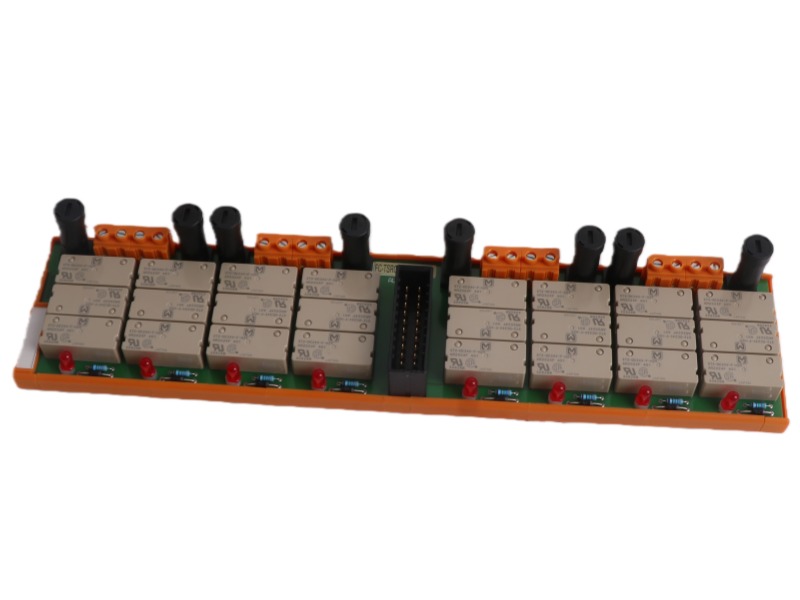

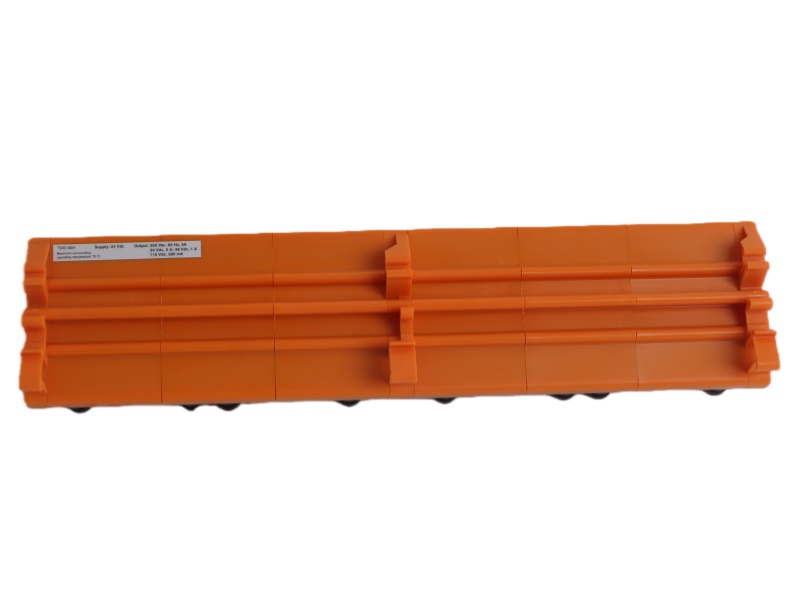

FC-TSRO-0824 Overview

The Honeywell Safety Systems FC-TSRO-0824 is an 8-channel relay-based field termination module, providing safe, potential-free digital outputs for AK5/6 safety applications. It interfaces system cables with field wiring and drives various loads, including 115/230V AC.

Features and Benefits:

8 Relay Channels: Provides eight independent, potential-free digital output channels for flexible control in safety applications up to AK6.

High Load Capability: Relays support diverse loads, including 115/230V AC, extending system output versatility.

Integrated Safety & Status: Complies with DIN V 19250 AK5/6; each channel includes fused contacts and an LED for clear operational status indication.

Easy Installation: Features screw terminals for field wiring and a universal snap-in design for simple mounting on standard DIN rails.

Standard Interface: Connects seamlessly to system controllers via the standard SIC-C-12 interconnection cable.

Robust Design: Engineered for reliable performance in industrial safety systems without requiring fault exclusions.

FAQ

Q1: What is the primary function of the Honeywell FS-TSRO-0824 module?

A1: It serves as an 8-channel relay-based field termination assembly, providing potential-free digital outputs for safety applications up to AK6.

Q2: What load voltages can the module's relays drive?

A2: The relays are capable of driving a wide variety of loads, including 115V AC and 230V AC.

Q3: How is the module connected to the control system?

A3: It interfaces via the system interconnection cable SIC-C-12, which plugs into the module's SIC connector.

Q4: What safety standards does this module comply with?

A4: It complies with safety requirements for general use in safety classes AK5/6 as defined in DIN V 19250.

Q5: What features does each output channel include?

A5: Each channel consists of three relays, a fused normally-open field contact (5A, slow-acting), and a status indication LED.
