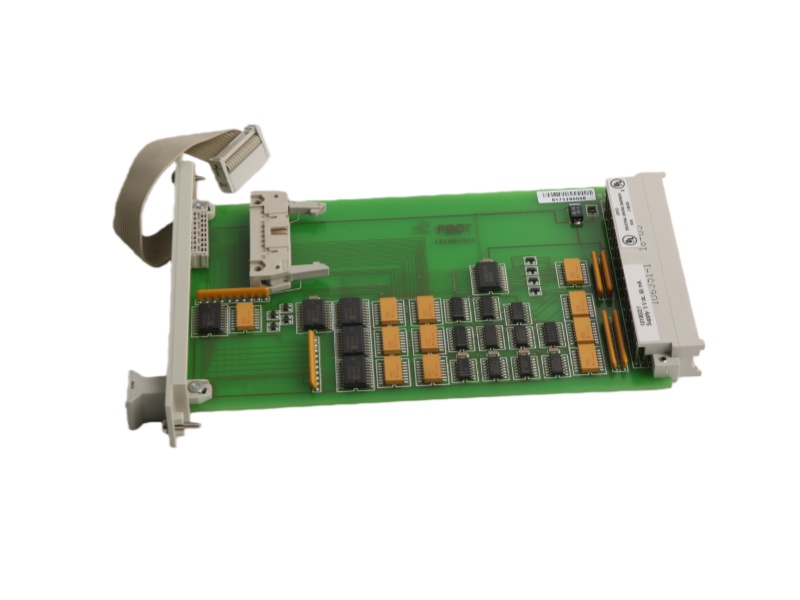

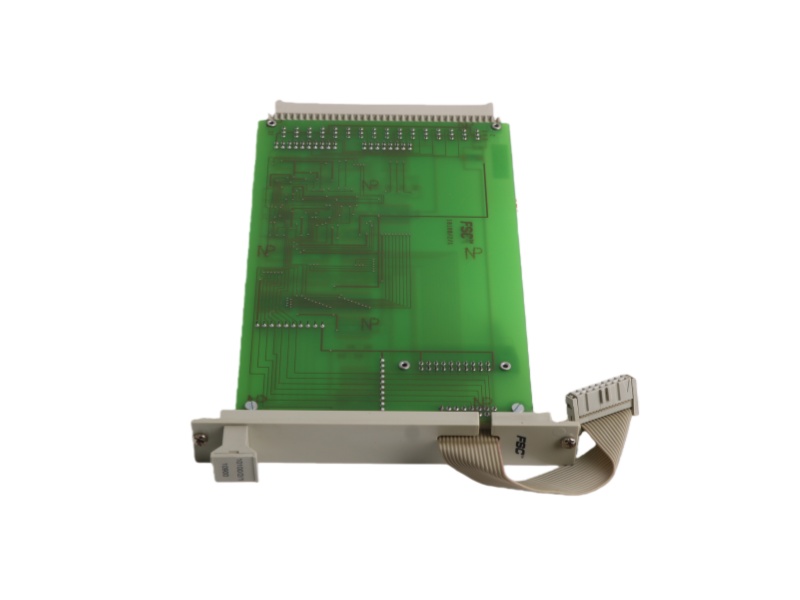

The Honeywell 10205/2/1 Analog Output Module is a fail-safe analog output module engineered for critical industrial automation and process control systems. This specialized module provides two galvanically isolated output channels capable of delivering precise 0-20 mA or 4-20 mA signals with 12-bit resolution, ensuring accurate control of field actuators and final elements in safety instrumented applications. Its robust design incorporates comprehensive protection mechanisms that maintain operational integrity even under challenging plant conditions.

Power configuration for the Fail-safe Analog 10205/2/1 Honeywell requires dual voltage inputs, operating on 5 VDC for internal logic and 24 VDC for output circuitry, with additional current allocation for each active channel. The module supports both active and passive signal configurations with a maximum loop resistance of 1kΩ, accommodating various field device requirements while maintaining signal integrity. External power supplies up to 40 VDC can be utilized, providing flexibility for different installation scenarios and legacy system integration.

A distinctive feature of the Machine Control 10205/2/1 Honeywell is its integrated calibration capability through potentiometers P2 and P3, allowing field technicians to maintain signal accuracy without module replacement. The compact form factor measuring 4 TE (4HP) facilitates space-efficient installation in standard control racks, while the minimal weight of 0.3 kg simplifies handling during maintenance procedures. These physical characteristics make the module suitable for retrofitting existing systems and deploying in space-constrained environments.

The operational reliability of the Honeywell 10205/2/1 SAFE AO MODULE makes it particularly valuable in safety-critical applications where continuous operation is paramount. By delivering high-precision analog outputs with built-in safety features, this module ensures that control commands are accurately transmitted to field devices such as control valves and variable speed drives. The proven performance and fail-safe architecture of the Fail Safe Controller Honeywell 10205/2/1 establish it as a trusted component within comprehensive safety instrumented systems across process industries including oil and gas, chemical processing, and power generation.
