General Electric PQMII-T20-C-A Power Quality Monitor

Inquiry now

PQMII-T20-C-A Product datasheet

Model number:	PQMII-T20-C-A	Module Type：	Power Quality Monitor
Manufacture:	General Electric	Condition：	Brand New
Range of Product:	General Electric	Lead time：	In Stock
Weight:	0.04 kg	HS CODE：	8537101190
Dimension:	5x1.3x4.4cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

PQMII-T20-C-A Functional Description

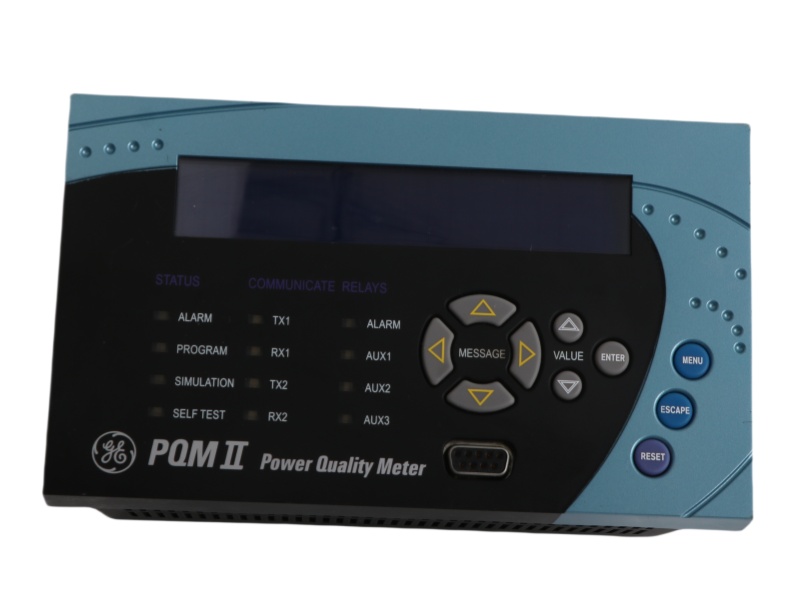

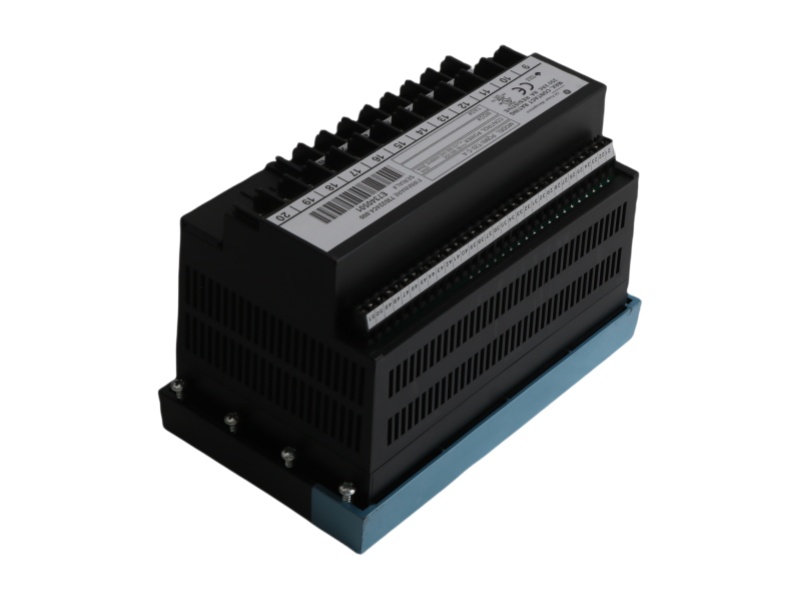

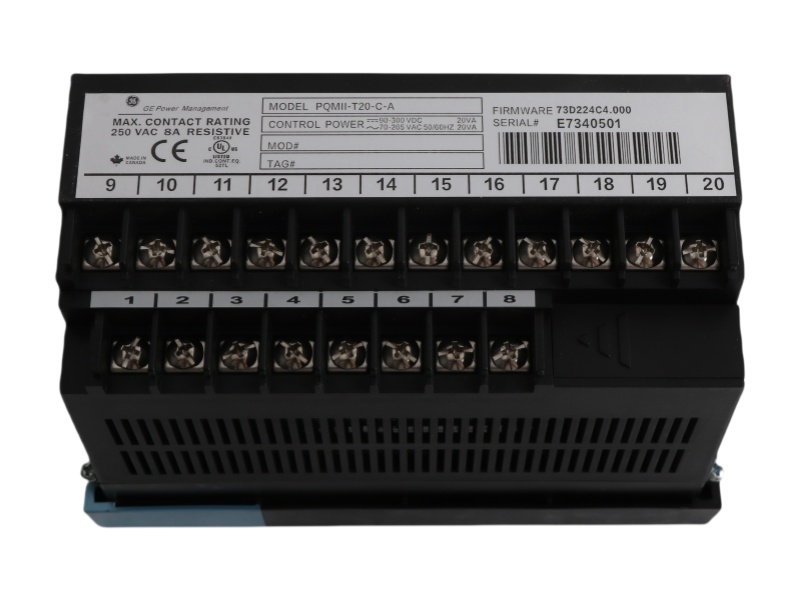

The General Electric PQMII-T20-C-A Power Quality Monitor is a versatile power quality meter designed for comprehensive monitoring of single or three-phase electrical systems. As part of GE's Multilin series, the PQMII-T20-C-A General Electric PDF provides precise measurements of voltage, current, power parameters, and energy consumption. Its robust functionality makes it ideal for industrial facilities requiring detailed electrical system analysis and control.

Equipped with programmable setpoints and four assignable relays, the General Electric Proximitor Monitor PQMII-T20-C-A enables customized control applications including load shedding and power factor correction. The meter's harmonic analysis option allows the General Electric PQMII-T20-C-A to identify and quantify harmonic distortion, helping prevent equipment damage from electrical anomalies. Four switch inputs expand its capabilities for complex control scenarios and status monitoring.

The Power Meter Panel PQMII-T20-C-A General Electric offers multiple communication options, including dual RS485 ports with Modbus protocol for seamless integration with plant automation systems. An additional RS232 front port facilitates direct PC connection for configuration and data access. The General Electric PQMII-T20-C-A can also output four analog signals (4-20mA) to interface with PLCs, eliminating the need for separate transducers.

With waveform capture and harmonic analysis, the Power Quality Monitor PQMII-T20-C-A provides valuable diagnostic tools for troubleshooting power quality issues. Its ability to generate printouts of electrical parameters and waveforms makes it an essential device for maintaining system reliability in facilities with sensitive electronic loads and variable frequency drives.
