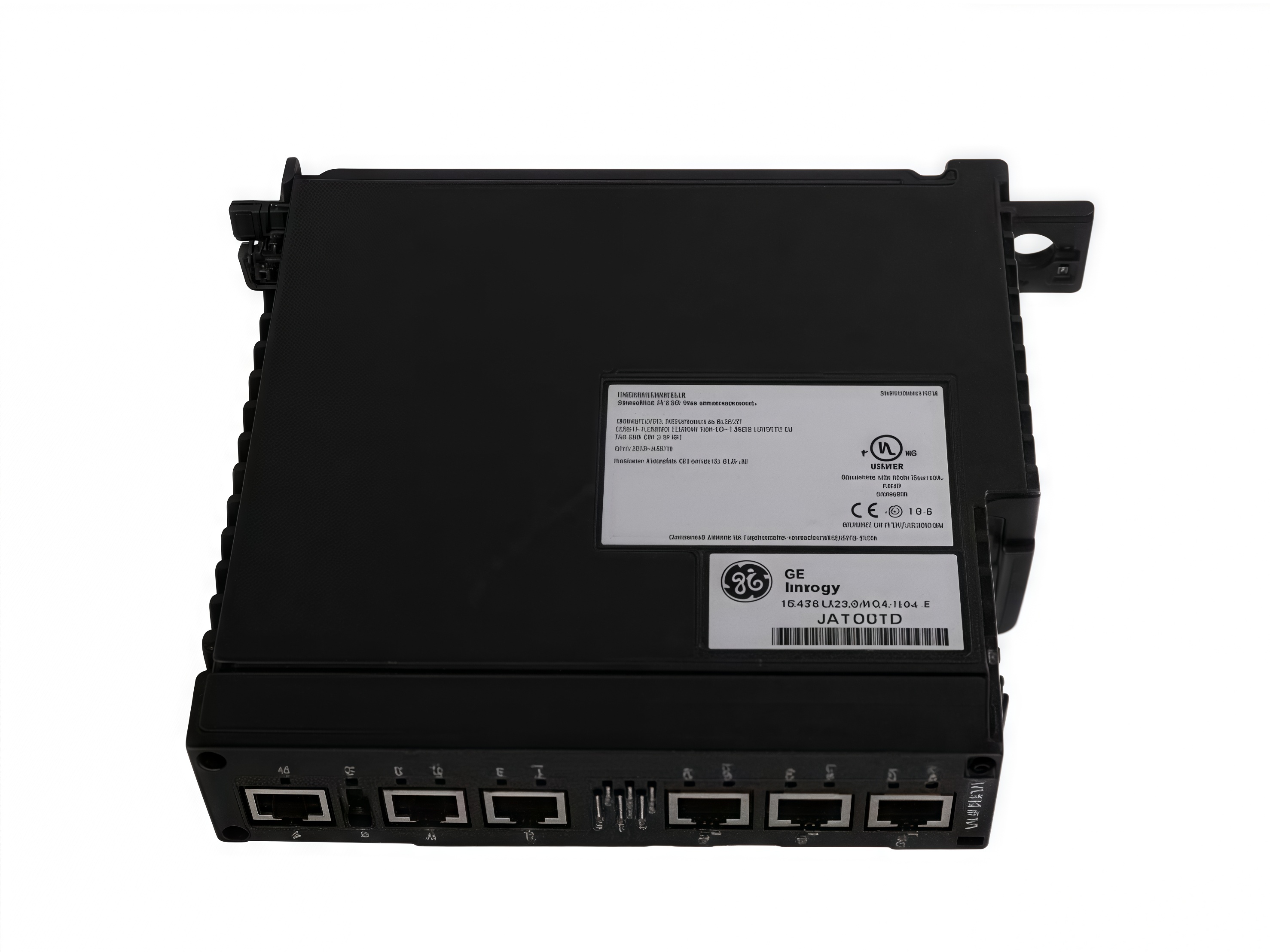

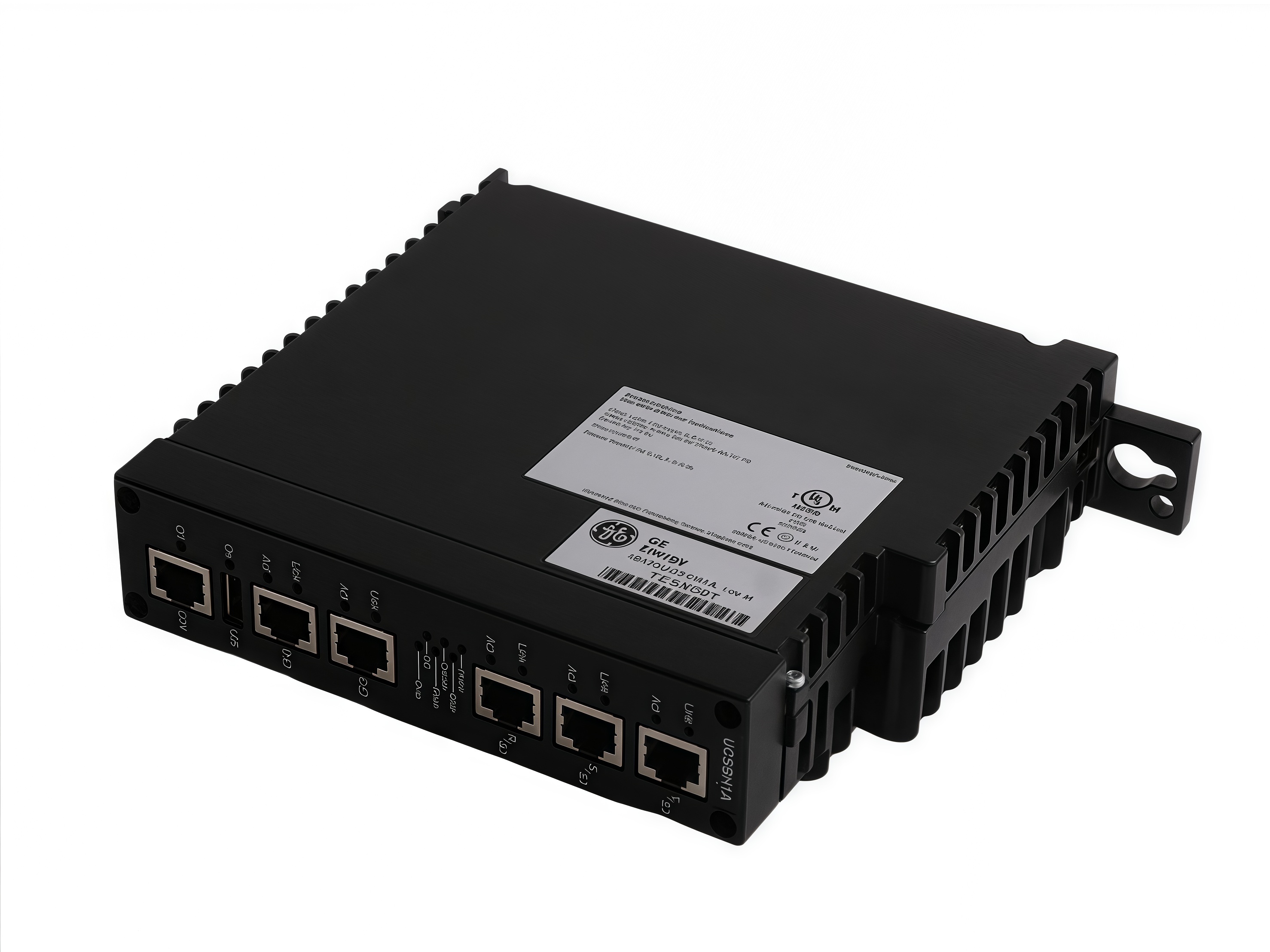

General Electric IS420UCSBH1A UCSB Controller Module

Inquiry now

IS420UCSBH1A Product datasheet

Model number:	IS420UCSBH1A	Module Type：	UCSB Controller Module
Manufacture:	General Electric	Condition：	Brand New
Range of Product:	Mark VIe	Lead time：	In Stock
Weight:	1.52 kg	HS CODE：	8537101190
Dimension:	5.5x12.3x20.3cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

IS420UCSBH1A Functional Description

The GE IS420UCSBH1A Mark VIe Controller is a critical component of General Electric's Mark VIe Control Safety System Series, designed specifically for gas turbine control applications. As the first UCSB controller in this series, it features a 1066 MHz Intel EP80579 microprocessor and operates on the QNX Neutrino real-time operating system, ensuring high-speed performance for industrial automation. Unlike traditional controllers, the Mark VIe Controller General Electric IS420UCSBH1A Ground Ship Module communicates with I/O packs via IONet interfaces, a dedicated Ethernet network supporting only Mark-controlled devices.

The IS420UCSBH1A UCSB Controller Module requires a DC power supply ranging from 18 to 30 volts, with a nominal rating of 24-28 VDC and a maximum current draw of 1.5 ADC. It carries multiple safety certifications, including UL DEMKO 12 ATEX 1114875X for hazardous locations (ATEX Zone 2, Group IIC) and UL E207685 for non-hazardous environments. The controller's compact design eliminates the need for jumpers or batteries, while select models feature dual redundant fans for enhanced reliability.

Within the Mark VIeS system, the General Electric IS420UCSBH1A Mark VIe Controller Control Safety System executes application code as a standalone computer, providing SIL 2/3 safety capabilities. Its flash memory supports convenient updates, and the absence of backplane-hosted I/O allows all controllers to access complete input data. The integrated ControlST software suite enables configuration, diagnostics, and safety instrumented function programming through ToolboxST tools.

Optimized for functional safety loops, the Analog Output Modules GE IS420UCSBH1A delivers exceptional performance in turbine control systems. Its industry-standard Ethernet connectivity supports simplex, dual, and triple redundant configurations. For technical support, repair services, or procurement of new/reconditioned units with warranty, specialized distributors maintain ready inventory of these mission-critical components.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IS200WETBH1A	GE	IS210WETAH1A	GE	IS200VAICH1DAA
GE	IS215WETAH1A	GE	IS215WEMAH1A	GE	IS200MVRBH1ACC
GE	IS420UCSCH2A	GE	IS215WEMAH1B	GE	IS220PAOCH1BE
GE	IS200TVIBH2B	GE	IS200SRTDH2ACB	GE	IS420ESWBH2A
GE	IS200TRLYH1B	GE	IS200SRLYH2AAA	GE	IS220PDIAH1A
GE	IS200TRPGH1B	GE	IS220PRTDH1A	GE	IS220PAOCH1A
GE	IS200TREGH1B	GE	IS220YDIAS1AK	GE	IS215VPROH1BE
GE	IS200TRTDH1B	GE	IS200TBAIS1CED	GE	IS215VPROH1BH
GE	IS200TTSAG1A	GE	IS200TH0H1B	GE	IS200VAICH1DBC
GE	IS200TBCIH1B	GE	IS200TSV0H1B	GE	IS200VAICH1DAB

Flexible Automation for Critical Applications with Mark VIe Control Systems

The GE Mark VIe control system delivers versatile automation capabilities for diverse industrial applications. Its high-speed networked I/O architecture supports simplex, dual, and triple redundant configurations, ensuring reliable operation across various implementations. The system utilizes industry-standard Ethernet communications to connect controllers, I/O modules, operator stations, and third-party systems, creating a seamless automation environment. For safety-critical applications, the Mark VIeS variant provides standalone safety control certified to IEC 61508 standards while maintaining integration with the ControlST software suite. This specialized version incorporates certified hardware and software blocks for safety instrumented functions (SIF), with the ToolboxST application enabling secure configuration management. The combination of standard and safety-certified versions within the same platform allows operators to implement both process control and safety systems using common engineering tools, simplifying maintenance while meeting rigorous safety requirements. GE's solution offers plant-wide control capabilities from basic automation to SIL-rated safety systems, all supported by a unified software environment that reduces training requirements and improves operational efficiency.
