IS220PVIBH1AL Product datasheet
|
Model number: |
IS220PVIBH1AL |
|
Module Type： |
Vibration I/O Pack |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Multilin |
|
Lead time： |
In Stock |
|
Weight: |
0.38 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
6x13x8.3cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS220PVIBH1AL Functional Description

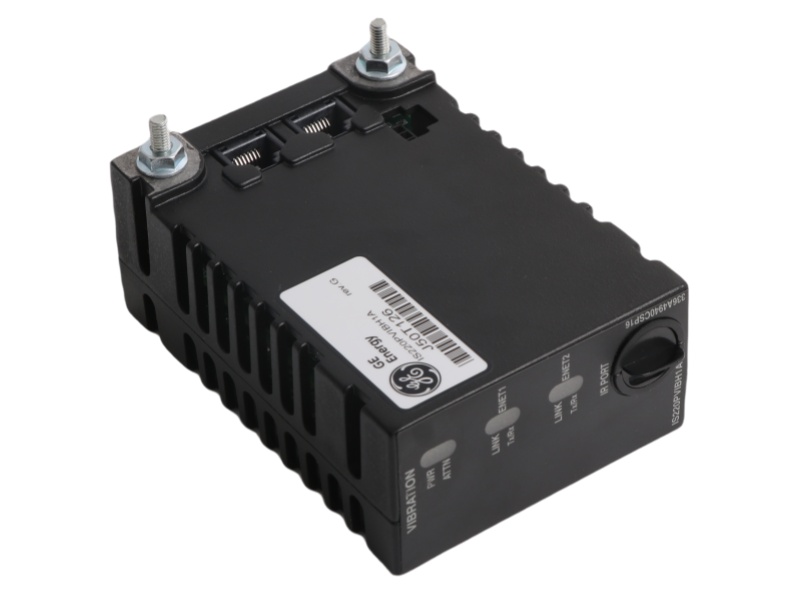

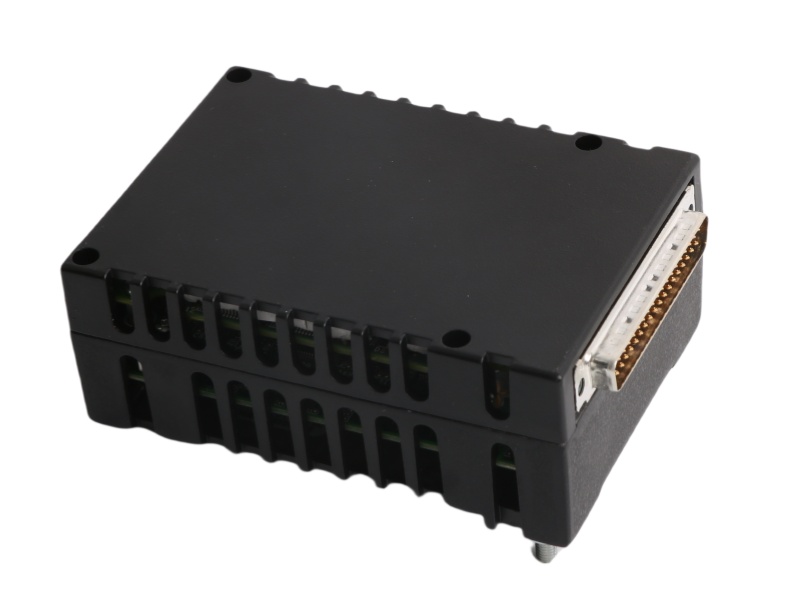

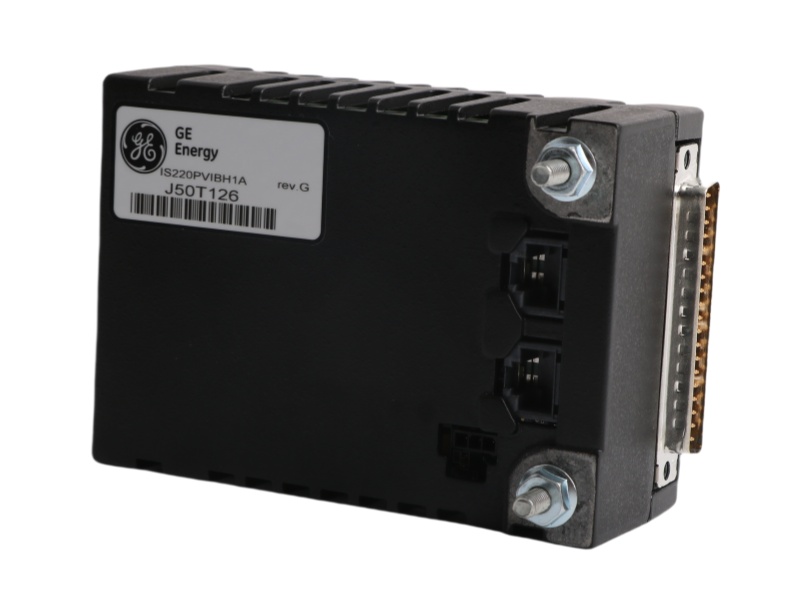

The General Electric IS220PVIBH1AL is a specialized Vibration Monitor Pack designed to serve as an electrical interface between up to two I/O Ethernet networks and a vibration terminal board. It integrates a main processor board (shared with other MKVIe I/O packs), a daughterboard, and an acquisition board to ensure high-performance operation. With thirteen dedicated channels, the IS220PVIBH1AL Vibration Module GE supports multiple sensor types, including Velomitors, seismic sensors, proximitors, and accelerometers, enabling comprehensive vibration and proximity monitoring in industrial applications.
The I/O module IS220PVIBH1AL General Electric features optimized channel assignments for precise data acquisition. Accelerometers are exclusively compatible with channels 1–3, while channels 9–12 are reserved for proximitors. Channel 13 accepts either proximity or Keyphasor signals. Each of the thirteen differential inputs includes a DAC for bias adjustment, enhancing the A/D conversion range. This design ensures accurate signal processing, making the General Electric IS220PVIBH1AL ideal for critical vibration monitoring in turbines and rotating machinery.
Equipped with a high-speed processor and dual 10/100 Ethernet ports, the IS220PVIBH1A Vibration Monitor Pack in Stock delivers reliable real-time data transmission. It supports TMR (Triple Modular Redundancy) and simplex backup protection for fail-safe operation. Additional features include a watchdog timer, hardware reset circuit, and internal temperature monitoring. The module continuously monitors trip board status and provides feedback, ensuring system integrity even during network failures. If one Ethernet connection fails, operation continues uninterrupted via the secondary network.
The model number General Electric IS220PVIBH1AL Vibration I/O Pack reflects its technical specifications: "IS220" denotes its Mark VIe series modular assembly, "PVIB" identifies its vibration monitoring function, and "H1A" indicates its hardware revision. Rated for single-operation (A-revision), this module combines robust construction with advanced diagnostics, making it a trusted component in GE’s Mark VIe control systems for industrial automation and machinery protection.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
DS200LDCCH1ALA |
GE |
DS200FSAAG1A |
GE |
DS200DTBBG1ABB |
|
GE |
DS200LDCCH1 |
GE |
DS200FCSAG2ACB |
GE |
DS200DSPCH1ADA |
|
GE |
DS200KLDCG1AAA |
GE |
DS200FCSAG2A |
GE |
DS200DSPCH1ADA |
|
GE |
DS200KLDCG1A |
GE |
DS200FCSAG1A |
GE |
DS200DMCBG1AJE |
|
GE |
DS200KLDBG1A |
GE |
DS200FCSAG1ACB |
GE |
DS200DDTBG2ABB |
|
GE |
DS200KLDBG1ABC |
GE |
DS200FCRRG1AKD |
GE |
DS200CTBAG1ADD |
|
GE |
DS200GDPAG1A |
GE |
DS200FCGDH1BAA |
GE |
DS200CPCAG1ABB |
|
GE |
DS200GDPAG1AEB |
GE |
DS200EXPSG1ACB |
GE |
DS200ADMAH1AAC |
|
GE |
DS2020FECNRX010A |
GE |
DS200DTBDG1ABB |
GE |
DS200ADPBG1ABB |
|
GE |
DS200FSAAG1ABA |
GE |
DS200DTBCG1AAA |
GE |
DS200ADGIH1AAA |
Vibration I/O Pack Overview
The Vibration I/O Pack is a critical component in industrial monitoring systems, designed to collect and process vibration and proximity data from machinery. It interfaces with sensors such as accelerometers, proximitors, and seismic transducers, converting analog signals into digital data for real-time analysis. Featuring multiple dedicated input channels, the module ensures precise measurement of machine health parameters, including vibration amplitude, phase, and speed.
Equipped with high-speed processing and dual Ethernet ports, the Vibration I/O Pack supports reliable communication within distributed control systems like GE’s Mark VIe. It offers redundancy features, including TMR (Triple Modular Redundancy) and failover protection, enhancing operational reliability. Advanced functions include built-in diagnostics, temperature monitoring, and automatic bias adjustment for optimal signal conditioning.
Ideal for turbines, compressors, and rotating equipment, the Vibration I/O Pack plays a vital role in predictive maintenance, helping prevent failures and improve operational efficiency. Its rugged design ensures durability in harsh industrial environments.
