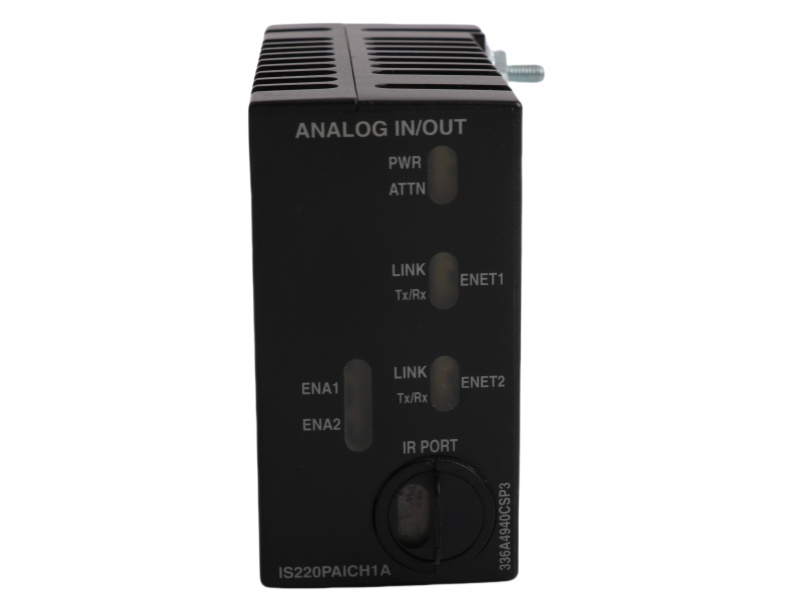

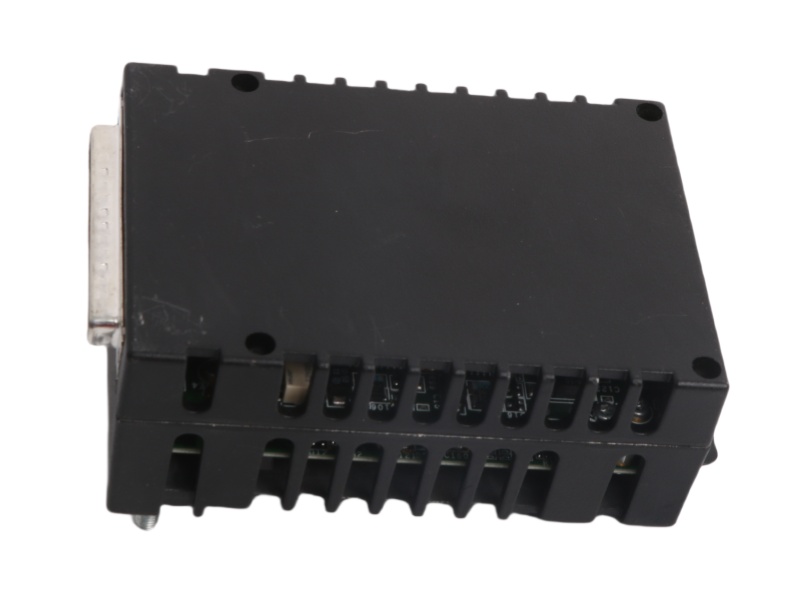

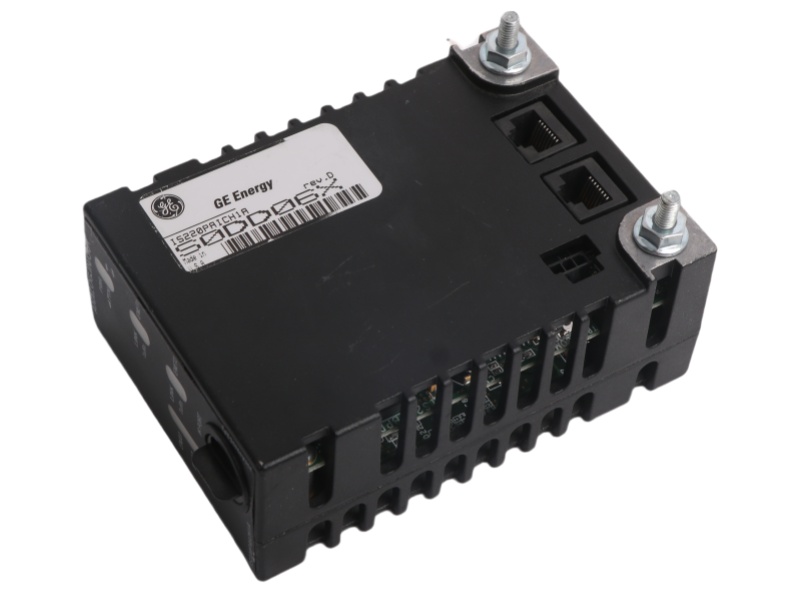

IS220PAICH1A Product datasheet
|
Model number: |
IS220PAICH1A |
|
Module Type： |
Analog I/O Pack |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
GE |
|
Lead time： |
In Stock |
|
Weight: |
0.38kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4.5x13.5x8.3cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS220PAICH1A Functional Description
The IS220PAICH1A Analog I/O Module General Electric is an Analog I/O Pack developed as part of the Mark VI series, supporting both Simplex and Triple Modular Redundant (TMR) control systems. It is designed to accommodate a wide range of applications, from small standalone modules to large, integrated distributed control systems. It offers high throughput, capable of managing up to nine 21-slot VME racks of I/O boards within 40 milliseconds, including data voting using Software Implemented Fault Tolerance (SIFT).
Each IS220PAICH1A Discrete Input/Output Board GE module communicates through its VCMI board, receiving inputs from the control module backplane and other connected modules via IONet. This direct communication reduces the need for interposing instrumentation, thereby minimizing potential single-point failures and improving overall system reliability. The system’s fault tolerance enhances operational uptime and reduces maintenance requirements.
In addition to general-purpose I/O, the Analog I/O Terminal Board GE IS220PAICH1A is designed to interface directly with sensors and actuators, enabling effective diagnostics and performance evaluation. This direct connection allows for more accurate monitoring and control, reducing the reliance on additional peripheral devices. Consequently, spare parts inventories are lowered, leading to cost savings over the long term.
World of Controls offers a comprehensive selection of GE Speedtronic Mark VI replacement components, including the Analog I/O Pack General Electric IS220PAICH1A. Their experts provide support and guidance for all General Electric IS220PAICH1A Analog I/O Pack needs, ensuring optimal performance and timely assistance.
