IS215WEMAH1B Product datasheet

IS215WEMAH1B Functional Description

As indicated by the General Electric IS215WEMAH1B Wind Energy Main Cabinet Board product number's unique IS215 tag, the IS215WEMAH1B Wind Energy Main Converter Control is equipped with a special assembly for supreme printed circuit board performance. This module, as indicated by its name, was specifically introduced to the Mark VIe Speedtronic Series of Wind Turbine controls, manufactured by the General Electric shell company GE Energy.

While not a great expanse of original manual material exists on the internet for this GE inverter main control board IS215WEMAH1B product, the WEMA-abbreviated printed circuit board is mentioned briefly in some pieces of relevant literature. One of these pieces of manufacturer-issued literature is GEH-6721; the Mark VIe and Mark VIeS Control Systems System Guide. This guide includes a chart describing some hardware specifications specific to the IS215WEMAH1B General Electric board assembly.

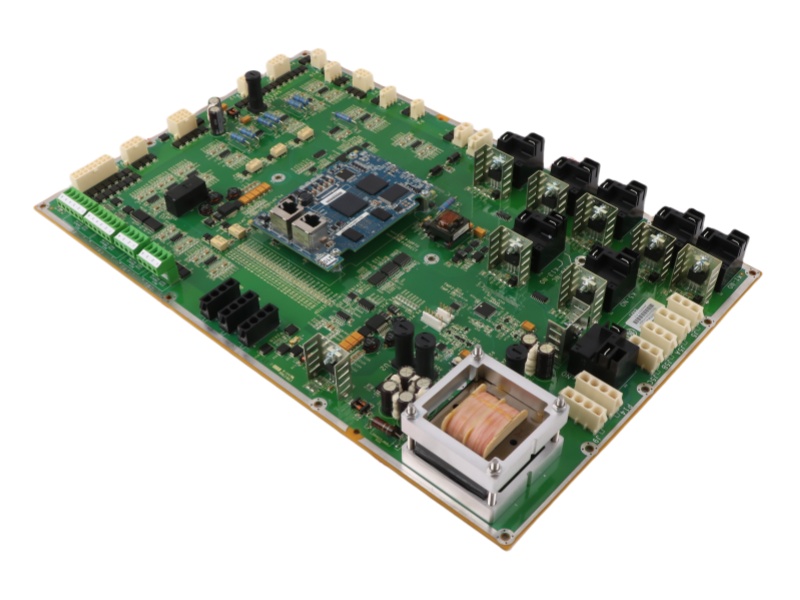

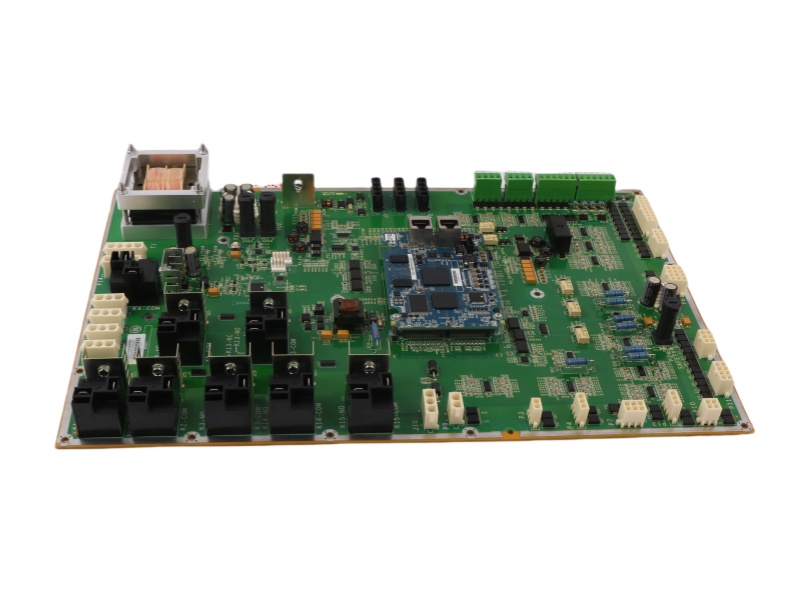

While only a limited amount of hardware information is retrievable through online and manual research of the IS215WEMAH1B GE Wind Energy Main Converter Control, a simple visual inspection and part number breakdown for the IS215WEMAH1B seem to yield an even greater quantity of important specifications. For starters, it is important to highlight the numerous factory-printed labels that are evident on the base board of this WEMA printed circuit board. Labels including the IS215WEMAH1B part number label, ETON ET866, JACD00C, 94V-0, and others all exist outside of the standard nomenclature labels that are seen alongside many basic components including the Mark VIe General Electric IS215WEMAH1B board's resistors, capacitors, and fuses.

While there are a lot of components to consider on the base board of this WEMA Wind Energy Main Converter Control, it is important too to consider some of the more general information sourceable from a simple IS215WEMAH1B product number breakdown. As outlined in the manuals tabs' IS215WEMAH1B Part Number Breakdown above, this PCB's part number's IS215 tag identifies it as a special-assembly General Electric PCB that was manufactured at their Salem, Virginia factory location. An instance of the WEMA functional acronym is shrugged only by the Wind Energy Main Cabinet Board GE IS215WEMAH1B part number's later inclusion of the "H1B" portion, which carries a triple meaning. The H1B product number portion designates the WEMA board as a conformal-coated printed circuit board with a Group 1 Mark VIe Series grouping. This H1B portion also identifies the unique functional revision attached to this Converter Control Board as a functional revision graded at a "B" rating.
