IS200VCRCH1BBB IS200VCRCH1B Product datasheet
|
Model number: |
IS200VCRCH1BBB IS200VCRCH1B |
|
Module Type： |
Digital Card |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIe |
|
Lead time： |
In Stock |
|
Weight: |
0.3 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.1x18.8x26.2cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS200VCRCH1BBB IS200VCRCH1B Functional Description

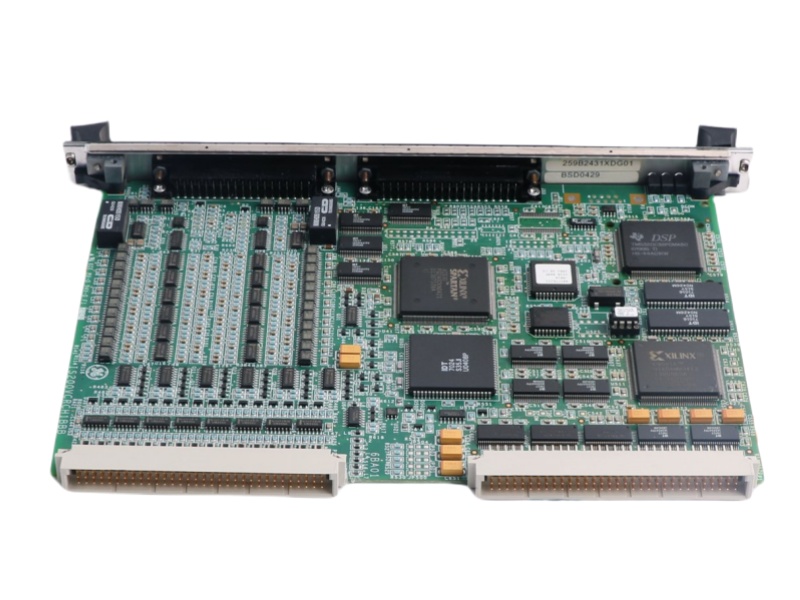

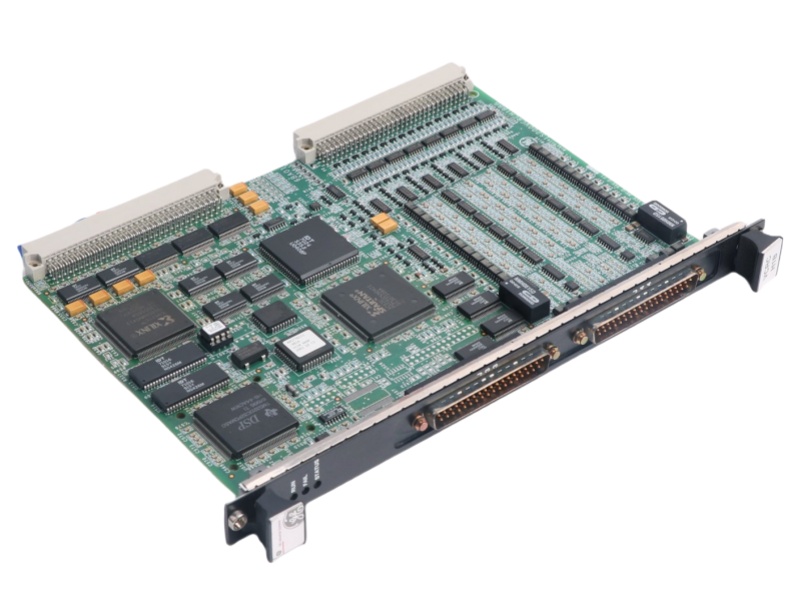

The General Electric IS200VCRCH1BBB IS200VCRCH1B in Stock are critical components of General Electric's Mark VI turbine control system, serving as discrete input/output processor boards. These models feature 48 contact inputs and 24 relay outputs (12 solenoid and 12 dry contact), making them essential for industrial automation in gas/steam turbine applications. As part of GE's Speedtronic control technology, the IS200VCRCH1BBB delivers enhanced functionality compared to previous Mark series.

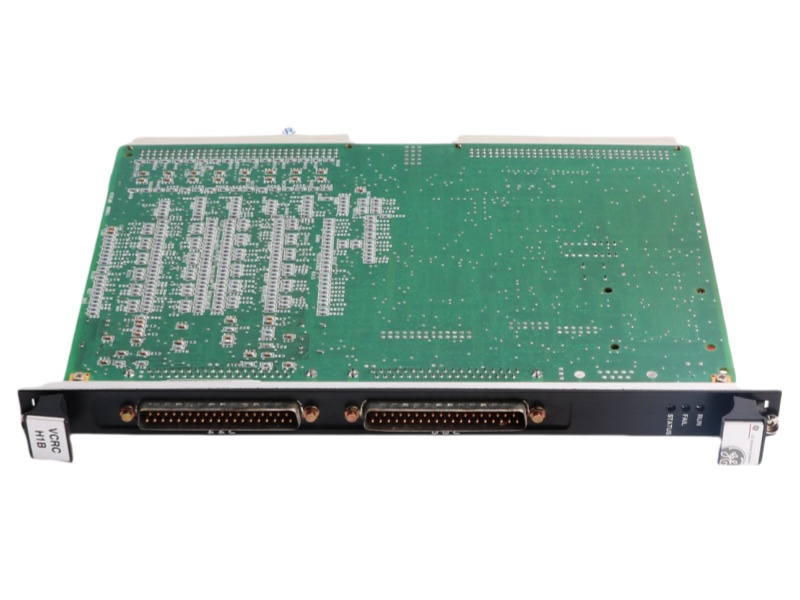

The Contact Input Board IS200VCRCH1BBB General Electric operates as a compact single-slot version (VCRC) versus the dual-slot VCCC model, saving valuable cabinet space. Input signals are received from TBCI terminal boards, while outputs connect to TRLY boards. Unlike the VCCC model, the Proximitor Monitor GE IS200VCRCH1BBB IS200VCRCH1B front-panel connectors (J33/J44) and status LEDs (RUN, FAIL, STATUS) provide convenient monitoring and diagnostics.
GE IS200VCRCH1B Mark VI Discrete I/O Board supports both simplex and triple modular redundant (TMR) configurations. In TMR setups, input signals are distributed across three VME racks via JR1/JS1/JT1 connectors. The board's compatibility with various TBCI versions (differing only in excitation voltage) ensures flexible deployment. However, unlike VCCC, it doesn't support TICI board control due to missing J3/J4 connectors.
When implementing IS200VCRCH1BBB IS200VCRCH1B General Electric Relay Output Board in Stock, engineers should note its space-saving single-slot design and front-mounted connectors. The board's factory-labeled I/O terminals simplify installation, while its rugged construction ensures reliability in demanding turbine environments. As documented in GEH-6421 manuals, these boards represent GE's advanced Mark VI control technology for modern power generation systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
