IS200TVIBH2B Product datasheet

IS200TVIBH2B Functional Description

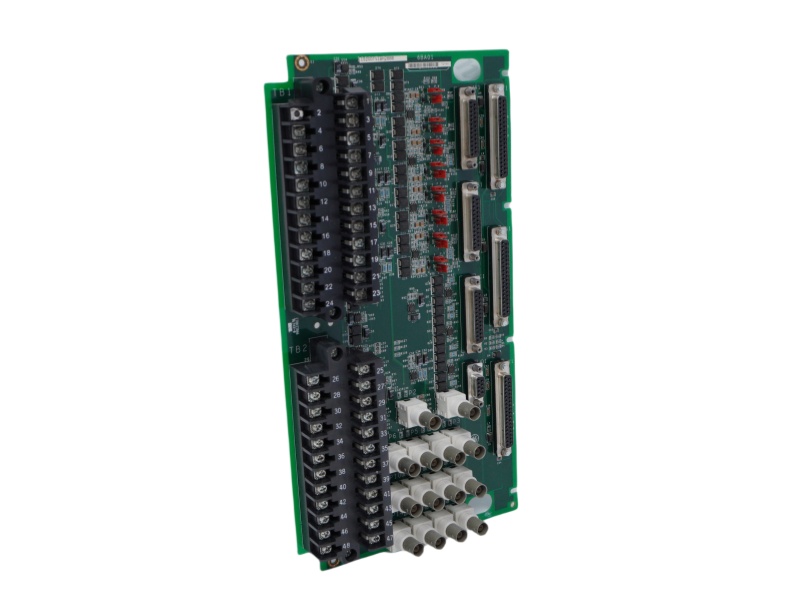

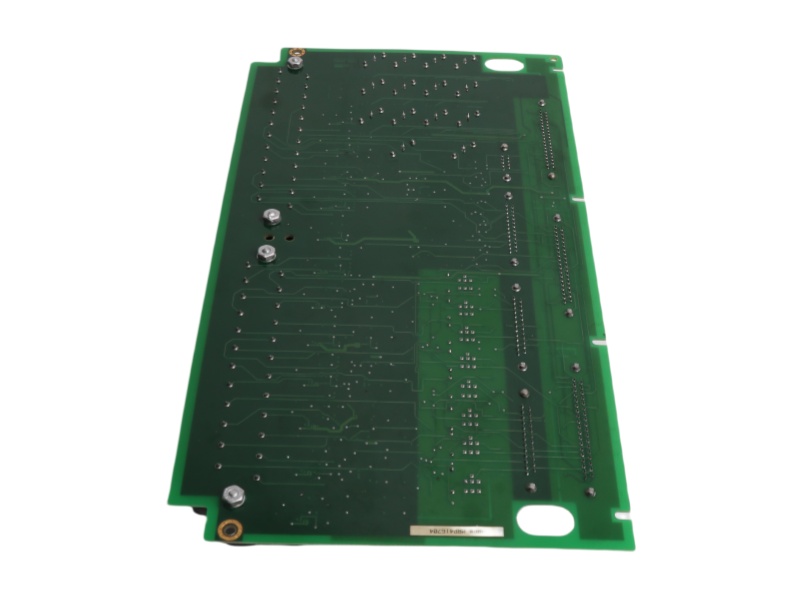

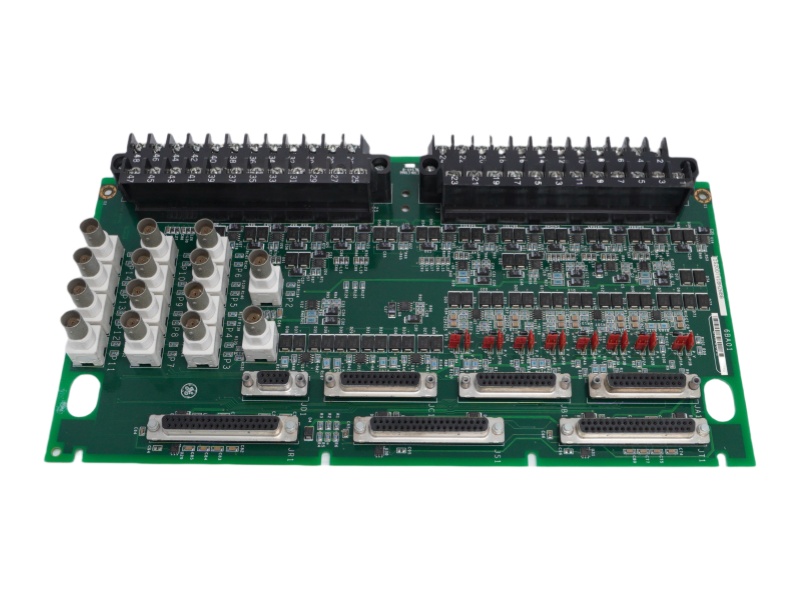

General Electric IS200TVIBH2B Vibration Terminal Board is an advanced vibration monitoring module designed for Mark VI turbine control systems, offering dual-channel vibration analysis with industrial-grade reliability. This robust module features BNC connectors that enable temporary connection of portable vibration analyzers, significantly enhancing predictive maintenance capabilities during turbine inspections. The IS200TVIBH2B General Electric PDF maintains permanent wiring to Bently Nevada monitoring equipment, ensuring continuous vibration data collection for comprehensive machinery health assessment in power generation applications.

The Vibration Terminal Board Module IS200TVIBH2B is its versatile interface design, combining both temporary diagnostic ports and permanent monitoring connections. The module processes critical vibration parameters including radial vibration, eccentricity, and axial position, with sampling rates optimized for turbine-specific frequencies. This dual functionality makes the General Electric IS200TVIBH2B invaluable for both routine maintenance and continuous protection scenarios in combined-cycle plants.

The Vibration Terminal Board GE IS200TVIBH2B integrates seamlessly with Mark VI's centralized protection logic, where it feeds processed vibration data to generate protective alarms and trip signals. Its <1% FS measurement accuracy ensures reliable detection of developing mechanical faults, while the MIL-spec connectors and DIN-rail mounting provide rugged installation in harsh turbine environments. These features have established the module as preferred choice for critical rotating equipment monitoring.

The Mark VIe General Electric IS200TVIBH2B exemplifies the fusion of diagnostic flexibility and protection reliability. The module's LED status indicators and 4-20mA outputs simplify field verification, while its cyber-secure communication aligns with modern power plant requirements. Supported by GE's global service network, this vibration module delivers long-term performance for both new installations and legacy system upgrades.
