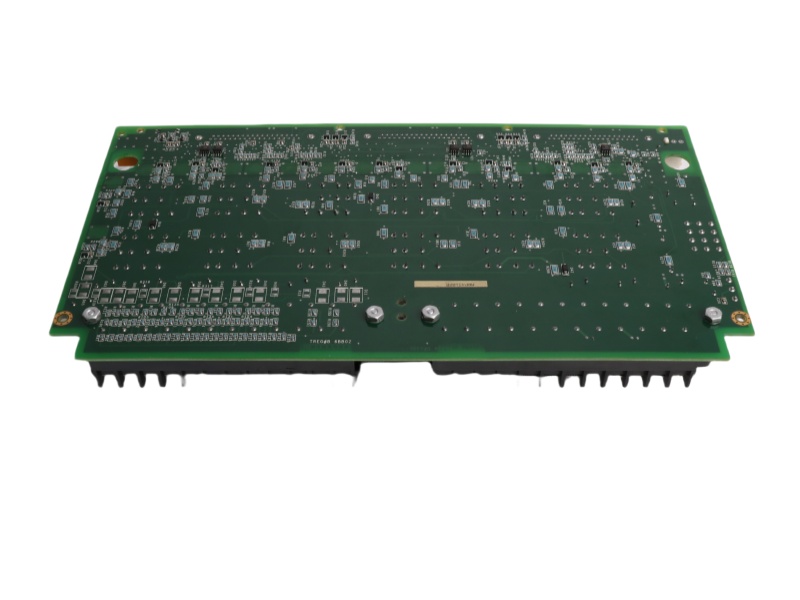

IS200TREGH1B Product datasheet
|
Model number: |
IS200TREGH1B |
|
Module Type： |
Turbine Emergency Terminal Board |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIe |
|
Lead time： |
In Stock |
|
Weight: |
2 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
33x17.8x5.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS200TREGH1B Functional Description

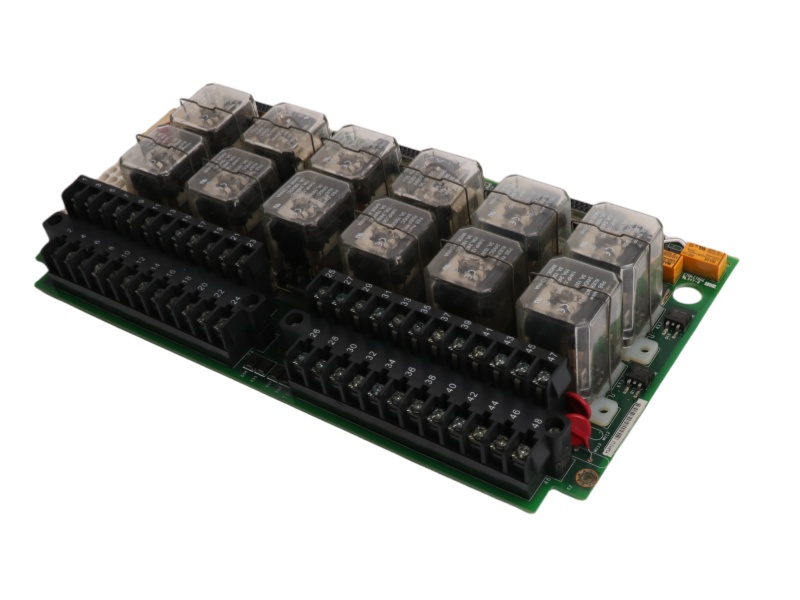

General Electric IS200TREGH1B Turbine Emergency Terminal Board is a critical Turbine Emergency Terminal Board in Mark VI gas turbine control systems, designed for fail-safe emergency shutdown operations. This robust module powers three emergency trip solenoids through a sophisticated relay voting system, working in tandem with the TRPG board to complete the safety circuit - where IS200TREGH1B supplies positive DC power while TRPG provides the negative side. The board's 12 relays include nine arranged in three voting groups (3-2-0 per solenoid) for triple-redundant protection, ensuring maximum reliability during critical turbine trips.
The Direct Turbine Control GE IS200TREGH1B excels in 125V DC applications, with its H1B variant being the industry-preferred configuration. Its innovative power design uses diode-combined control power from JX1/JY1/JZ1 connectors to create redundant power supplies for status feedback circuits and economizing relays, while maintaining complete isolation for trip relay circuits. This architecture makes the General Electric IS200TREGH1B particularly reliable for emergency overspeed protection and emergency stop functions in demanding power generation environments.
Integration capabilities distinguish the Turbine Emergency Terminal Board IS200TREGH1B, featuring seamless connectivity with both PPRO modules and TRPG boards via rugged molded-plug cables. The board's VME rack-compatible design ensures straightforward installation in Mark VI systems, while its military-grade components withstand the vibration and temperature extremes typical in turbine installations. These features have established the General Electric IS200TREGH1B as the gold standard for turbine emergency protection.
This terminal board combines hardwired reliability with smart diagnostics, including LED status indicators for each relay group. The Mark VIe General Electric IS200TREGH1B delivers <3ms response times for emergency trips, backed by GE's global support network, making it the trusted choice for combined-cycle plants and industrial turbine applications worldwide where uncompromising safety is paramount.
