General Electric IS200EXHSG3AEC/IS200EXHSG3A Exciter HS Relay Driver Board

Inquiry now

IS200EXHSG3AEC/IS200EXHSG3A Product datasheet

Model number:	IS200EXHSG3AEC/IS200EXHSG3A	Module Type：	Exciter HS Relay Driver Board
Manufacture:	GE	Condition：	Brand New
Range of Product:	Mark Vle	Lead time：	In Stock
Weight:	0.46kg	HS CODE：	8537101190
Dimension:	23x19.1x3cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

IS200EXHSG3AEC/IS200EXHSG3A Functional Description

The IS200EXHSG3AEC Relay Driver Board GE is a high-speed relay driver board developed as part of the EX2100 Excitation Control series, a key component in GE’s Mark VI turbine control system. Designed for use in static excitation systems, this board plays a critical role in generating and managing field excitation current to regulate terminal voltage and reactive power in steam, gas, and hydro turbine generators. As part of GE’s advanced TMR (Triple Modular Redundant) architecture, the IS200EXHSG3A Control module General Electric ensures system reliability and consistent performance.

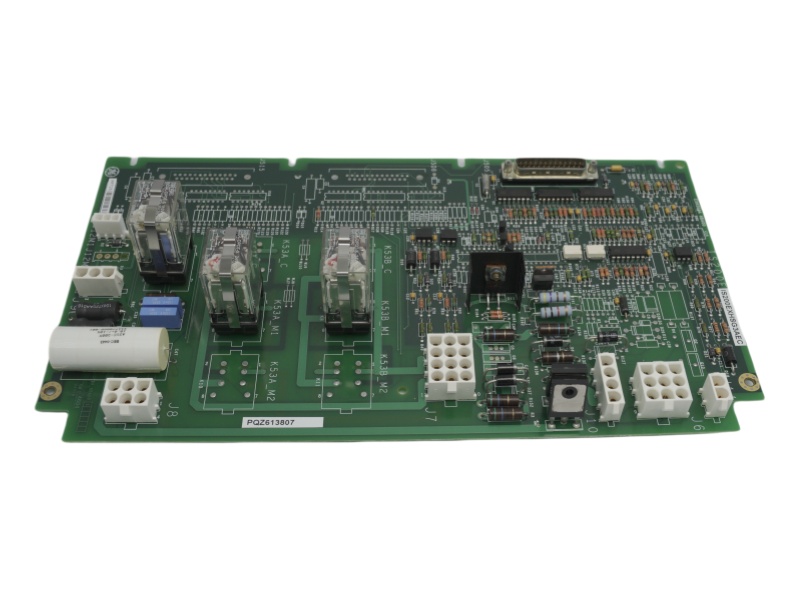

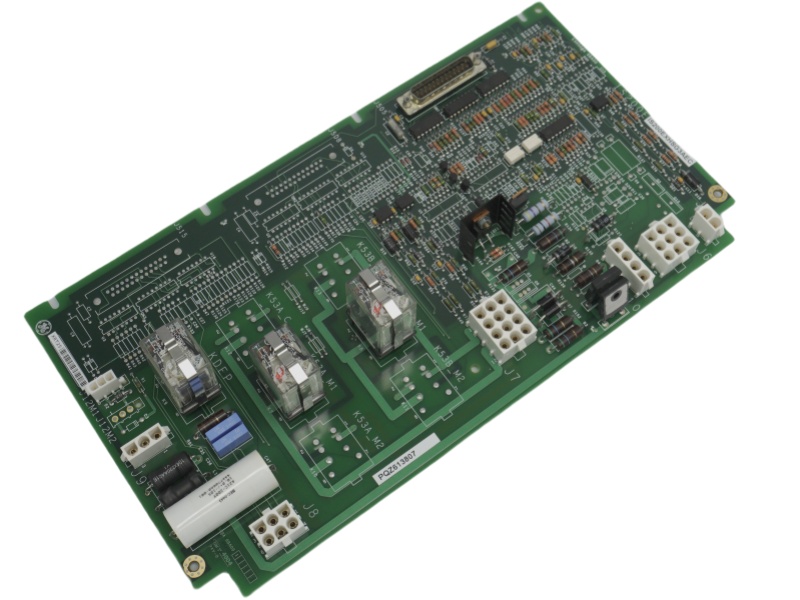

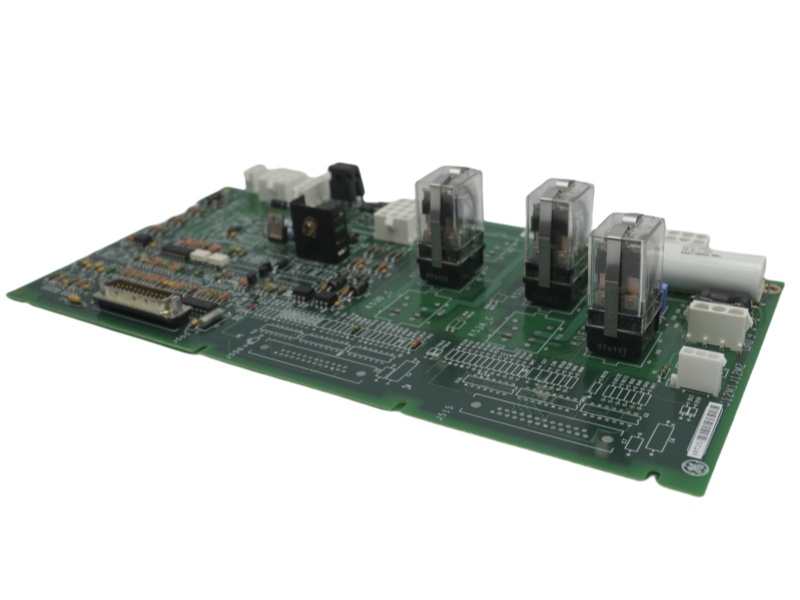

This board features solid-state relay driving capabilities and is typically used with a high-speed contactor. The General Electric IS200EXHSG3AEC IS200EXHSG3A Module includes seven labeled relays, integrated circuits, transistors, and over fifty capacitors and one hundred resistors. It is equipped with multiple plug connectors, vertical pin connectors, heat sinks, and wire jumpers, making it well-suited for high-speed control applications. The layout includes notches, clipped corners, and drilled holes designed for easy mounting in turbine assemblies.

PCB protection is provided by a traditional base-layer coating, which safeguards components against environmental stress. The redundant control GE IS200EXHSG3AEC/IS200EXHSG3A is widely sought after for both retrofit and new installation projects due to its late-stage Speedtronic system integration and robust construction.

For proper use and handling, installation manuals provided by GE Industrial Systems are highly recommended. The General Electric breaker mode boards IS200EXHSG3AEC/IS200EXHSG3A is available for global shipping, with expedited options offered by authorized distributors.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	DS200LDCCH1ALA	GE	DS200FSAAG1A	GE	DS200DTBBG1ABB
GE	DS200LDCCH1	GE	DS200FCSAG2ACB	GE	DS200DSPCH1ADA
GE	DS200KLDCG1AAA	GE	DS200FCSAG2A	GE	DS200DSPCH1ADA
GE	DS200KLDCG1A	GE	DS200FCSAG1A	GE	DS200DMCBG1AJE
GE	DS200KLDBG1A	GE	DS200FCSAG1ACB	GE	DS200DDTBG2ABB
GE	DS200KLDBG1ABC	GE	DS200FCRRG1AKD	GE	DS200CTBAG1ADD
GE	DS200GDPAG1A	GE	DS200FCGDH1BAA	GE	DS200CPCAG1ABB
GE	DS200GDPAG1AEB	GE	DS200EXPSG1ACB	GE	DS200ADMAH1AAC
GE	DS2020FECNRX010A	GE	DS200DTBDG1ABB	GE	DS200ADPBG1ABB
GE	DS200FSAAG1ABA	GE	DS200DTBCG1AAA	GE	DS200ADGIH1AAA

Overview of General Electric Exciter Relay Driver Board

The General Electric IS200EXHSG3AEC is a customizable relay driver board developed for the EX2100 Excitation Control System. It incorporates three distinct revisions: a functional revision 1 rated “A,” a functional revision 2 rated “E,” and a physical artwork revision “C,” protected by a durable PCB coating. Designed to control essential excitation system functions, the IS200EXHSG3AEC drives critical components like DC contactors and pilot relays used for field flashing and de-excitation. Relay drivers such as K41 control close function contactors, while K53A and K53B manage flashing pilot relays. The KDEP relay handles de-excitation, enhancing system safety during shutdown. Additionally, the board performs signal conditioning for status signals from the EDEX and EXDE boards, ensuring accurate transmission to the EMIO system for monitoring. The IS200EXHSG3AEC ensures stable, efficient operation and can be repaired or replaced in demanding industrial turbine control environments.
