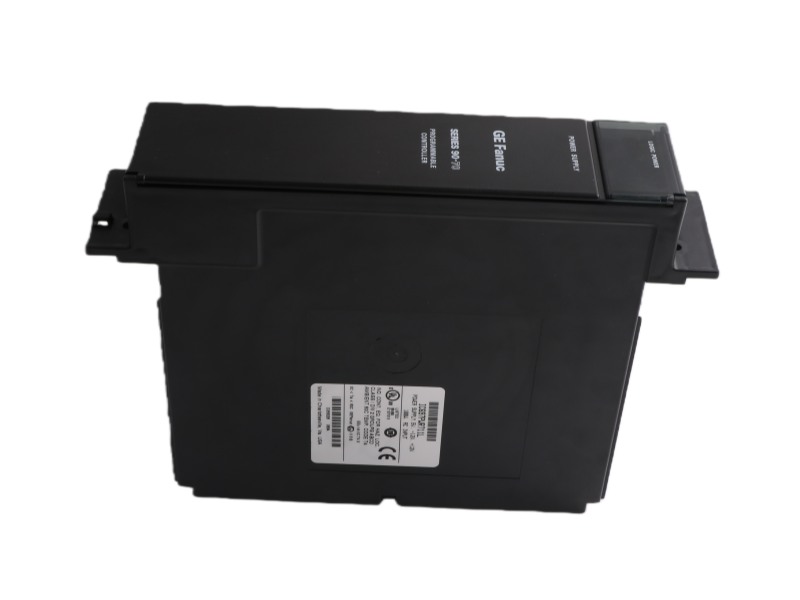

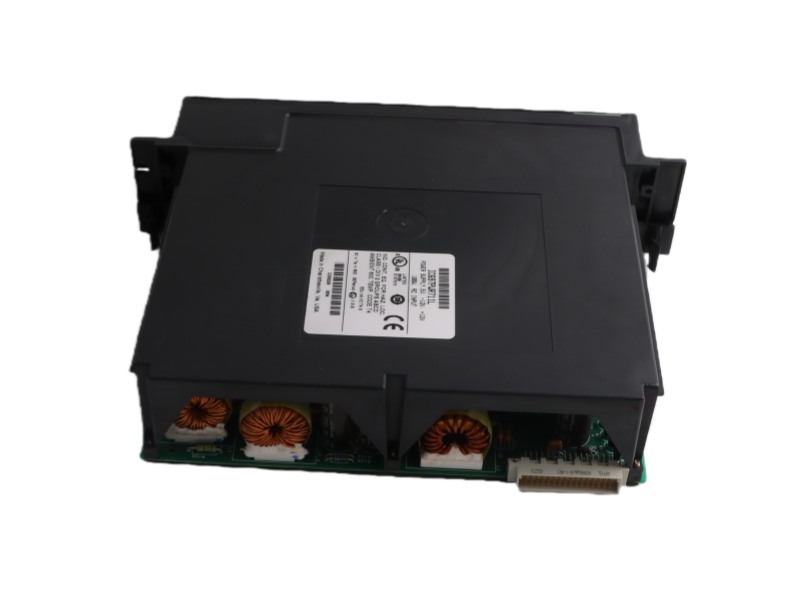

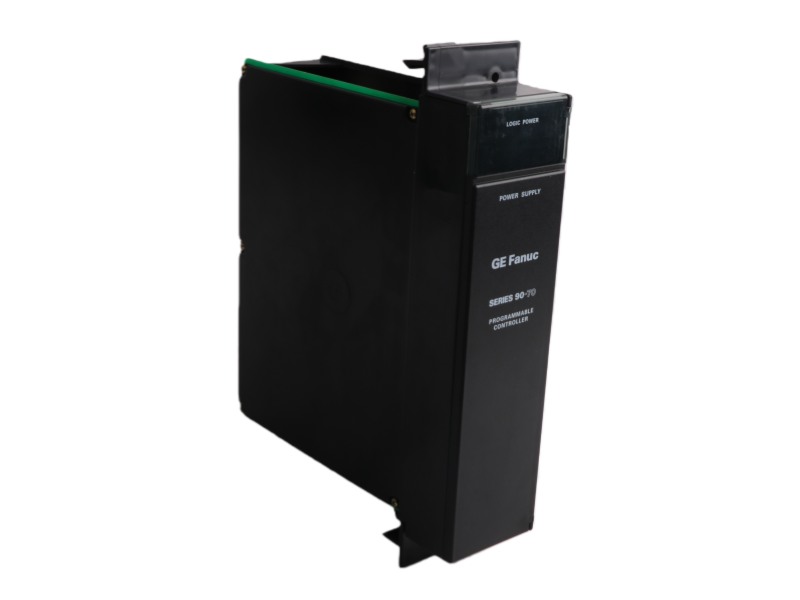

General Electric IC697PWR711M Power Supply Module

Inquiry now

IC697PWR711M Product datasheet

Model number:	IC697PWR711M	Module Type：	Power Supply Module
Manufacture:	General Electric	Condition：	Brand New
Range of Product:	Mark VIe	Lead time：	In Stock
Weight:	0.9 kg	HS CODE：	8537101190
Dimension:	20x11.5x5.7cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

IC697PWR711M Functional Description

The General Electric Power Supply Module IC697PWR711M is a robust 100-watt power supply module engineered for the Series 90-70 PLC systems. Designed as a versatile component, this module supports a wide range of input voltages, including 120 VAC, 240 VAC, and 125 VDC, making it adaptable to various industrial power configurations. The primary function of the POWER SUPPLY MODULE Series 90-70 IC697PWR711M is to deliver stable and protected power to the system backplane, ensuring reliable operation of all connected control modules.

This unit provides three distinct and well-regulated DC output voltages: a substantial +5 VDC at up to 20 amps for logic circuits, alongside +12 VDC and -12 VDC for auxiliary components. A key feature of the IC697PWR711M 100-watt power supply module General Electric is its ability to power two separate racks from a single unit using a prewired interconnection cable, provided the total load remains within its 100-watt capacity. This dual-rack capability offers significant flexibility and cost savings in system design and expansion.

Installation of the IC697PWR711M Programmable Controller General Electric is streamlined through its slide-in rack mount construction, and it must be placed in the leftmost slot of the chassis. The module is equipped with comprehensive protection mechanisms, including electronic short circuit and overcurrent protection, as well as a configurable overvoltage protection jumper. These features safeguard both the power supply itself and the sensitive electronics on the rack from electrical faults.

Built for resilience, the Ge FANUC Series IC697PWR711M incorporates power factor correction for AC inputs and is designed to maintain output for at least one input line cycle during a total power loss, allowing for controlled system shutdowns. For continuous operation under extreme conditions of low line voltage and high temperature, some power derating is recommended to ensure long-term reliability and performance in demanding industrial environments.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IS200VCRCH1BBC	GE	IS200TSVCH2AJE	GE	IS200TPROH1BCB
GE	IS200VCRCH1BBB	GE	IS200TSVCH1AEC	GE	IS200TGENH1A
GE	IS200VAICH1DBC	GE	IS200TSVCH1ACB	GE	IS200TDBSH2A
GE	IS200VAICH1DAB	GE	IS200TRTDH1CC	GE	IS200TBTCH1CBB
GE	IS200VAICH1DAA	GE	IS200TRPGH1BDE	GE	IS200TBCIH1BCE
GE	IS200VAICH1CBA	GE	IS200TRLYH1BHH	GE	IS200TBCIH1BBC
GE	IS200TVIBH2BCC	GE	IS200TRLYH1BGG	GE	IS200TBAIH1CDD
GE	IS200TVIBH2BBB	GE	IS200TRLYH1BGE	GE	IS200TBACIH1B
GE	IS200TTURH1BED	GE	IS200TRLYH1BED	GE	IS200TAMBH1ACB
GE	IS200TSVOH1BDC	GE	IS200TREGH1BDC	GE	IS200STAOH2AAA

Power Supply Module

This Power Supply module can operate from either 120 VAC or 240 VAC nominal inputs. It will also oper- ate from a nominal 125 VDC source. The specified range of operation is from 90 VAC to 264 VAC, and from 100 VDC to 150 VDC. For continuous operation (greater than one hour) at low line voltages and high temperatures, some power derating must be applied.

Normal operating range is shown by the shaded area of the graph for 60°C (140°F) installations. Operation in the non-shaded region for specific applications must be limited to <1 hour: Re-ducing the maximum operating temperature to 55°C (131°F) will increase the normal operating range as indicated on the graph.
