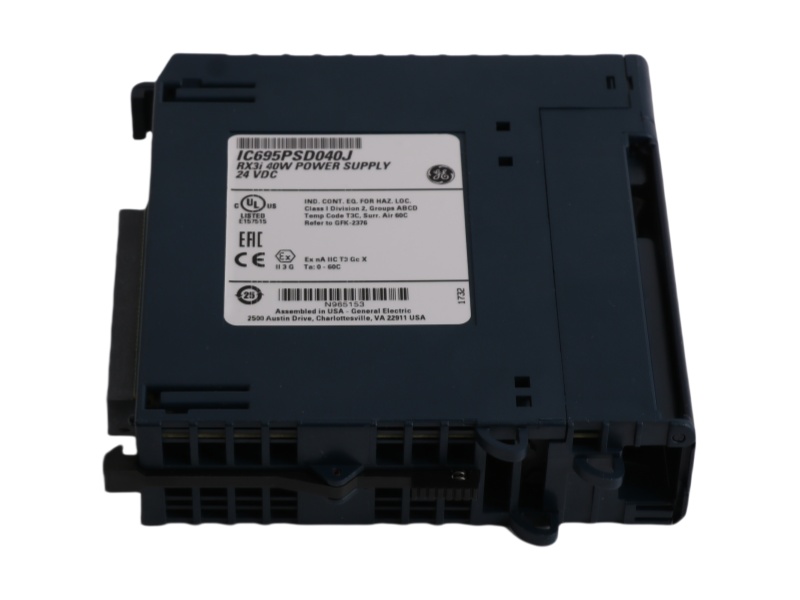

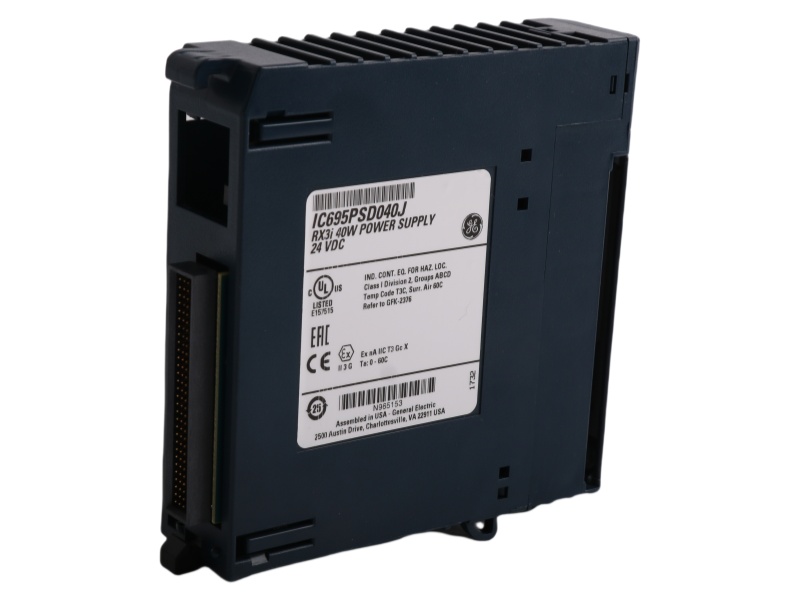

IC695PSD040 Product datasheet
|
Model number: |
IC695PSD040 |
|
Module Type： |
RX3i Universal Backplane Power Supply |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
FANUC |
|
Lead time： |
In Stock |
|
Weight: |
0.26 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13.3x13.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC695PSD040 Functional Description
The General Electric IC695PSD040 RX3i Universal Backplane Power Supply is a dedicated 40W power supply designed exclusively for single-unit installation in PACSystems RX3i Universal Backplanes. This critical component delivers stable 24V DC power to the rack's CPU and I/O modules, but importantly, the General Electric IC695PSD040 cannot operate in redundant configurations or parallel with other RX3i power supplies. Its unique design prevents compatibility issues that could arise from improper multi-supply installations.
When implementing the IC695PSD040 General Electric PDF, users must note it occupies one backplane slot and has fixed capacity limitations. If system power requirements exceed the 40W output, additional modules must be distributed across expansion or remote backplanes. The General Electric IC695PSD040 incorporates intelligent fault detection that communicates power loss events to the CPU for system diagnostics and appropriate fault code generation.
A crucial safety feature of the General Electric Power Supply Module IC695PSD040 is its version-specific compatibility. Earlier variants (marked IC695PSD040C or prior) may cause equipment damage if mistakenly installed alongside other power supplies in the same backplane. This underscores the importance of verifying the exact model before installation.
The General Electric IC695PSD040 FANUC represents an optimized power solution for basic RX3i configurations, providing reliable operation with built-in overvoltage and overcurrent protection. Its design prioritizes system stability and diagnostic capability, making it ideal for industrial automation applications where consistent power delivery is essential for control system integrity.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
PQMII-T20-C-A |
GE |
IS210WETAH1A |
GE |
IS200VAICH1DAA |
|
GE |
IS215AEPCH2F |
GE |
IS215WEMAH1A |
GE |
IS200MVRBH1ACC |
|
GE |
IS200WEORG1A |
GE |
IS215WEMAH1B |
GE |
IS220PAOCH1BE |
|
GE |
IS210AEDBH4A |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IS210AEBIH3B |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
|
GE |
IS215REBFH1B |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IS200AEADH4A |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IS210MACCG1A |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IS200TREGH1BDB |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS210WETBH1A |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
GE Fanuc Manuals
Four LEDs on the Power Supply indicate:
▪ Power (Green/Amber). When this LED is green, it indicates power is being supplied to the backplane. When this LED is amber, power is applied to the Power Supply but the Power Supply switch is off.
▪ P/S Fault (Red). When this LED is lit, it indicates the Power Supply has failed and is no longer supplying sufficient voltage to the backplane.
▪ Over Temperature (Amber). When this LED is lit, it indicates the Power Supply is near or exceeding its maximum operating temperature.
▪ Overload (Amber). When this LED is lit, it indicates the Power Supply is near or exceeding its maximum output capability on at least one of its outputs.
If the red P/S FAULT LED is lit, the Power Supply has failed and is no longer supplying sufficient voltage to the backplane . The amber OVERTEMP and OVERLOAD LEDs light to warn of high temperature or high load conditions. The CPU Fault Table shows a fault if any Overtemperature, Overload, or P/S Fault occurs.
