IC660BBA024P1 Product datasheet

IC660BBA024P1 Functional Description

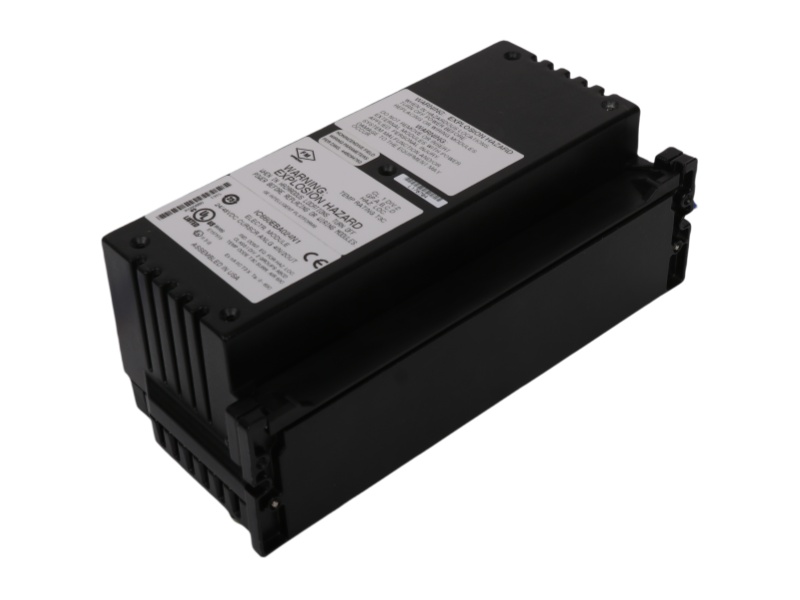

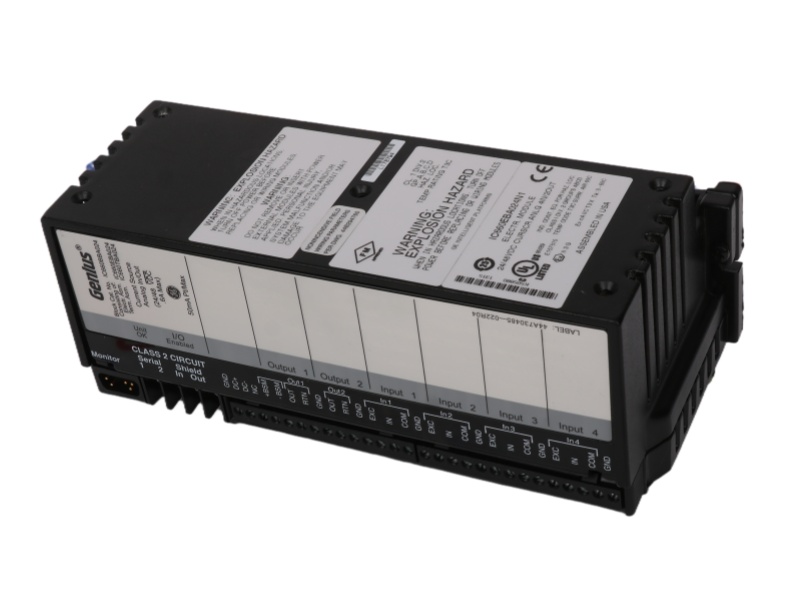

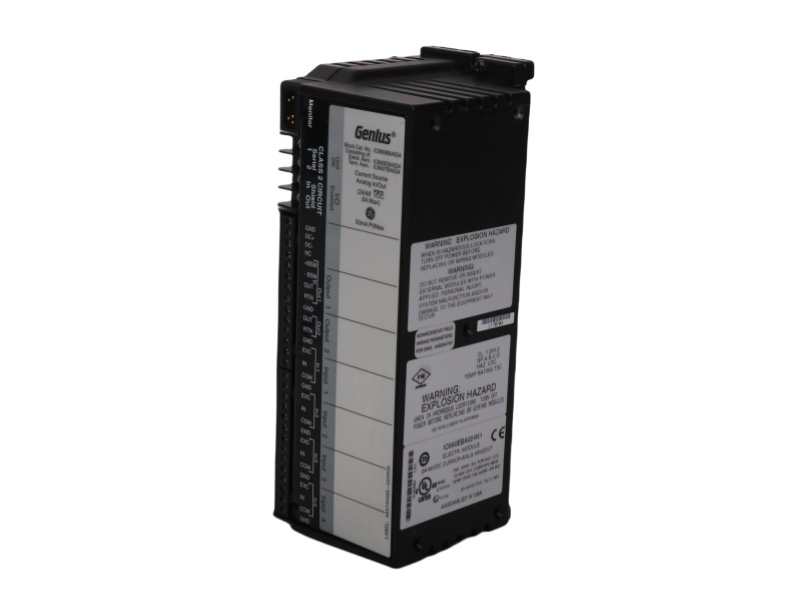

The General Electric I/O Block IC660BBA024P1 is a current source I/O block designed for 24 to 48 Volts DC operation, belonging to the GE Fanuc Series 90-30 I/O module product line. IC660BBA024P1 Current Source I/O Block General Electric is built to interface with devices that provide 4 to 20 milliamps analog signals, making it suitable for a variety of industrial automation applications. This module features 4 inputs and 2 outputs, with isolated channels and factory calibration to ensure accuracy and reliability in demanding environments.

Each input channel on the General Electric IC660BBA024P1 Current Source I/O Block supplies a 24 Volts current loop power source, while the two output channels deliver 4 to 20 milliamps rated current loops. Both input and output circuits support linear scaling for accurate engineering unit generation and include diagnostic functions for system monitoring. The module’s precision and stability make it an ideal choice for process control and monitoring systems.

Measuring 22.44 × 8.48 × 9.93 centimeters and weighing 4 pounds, the Controller IC660BBA024P1 General Electric offers robust performance in a compact form factor. Its inputs provide 0.1% full-scale accuracy at 25°C, 1 microamp resolution, and conversion times ranging from 16.6 to 400 milliseconds. Outputs feature 6 microamps resolution, 0.15% full-scale accuracy, and an update frequency of 6 to 8 milliseconds.

The General Electric IC660BBA024P1 Analog Input/Output Module uses a voltage-to-frequency converter to transform analog readings into digital values. All outputs are electrically common, and it can be directly connected to a 24 to 48 Volts DC bus switching module. A proper DC supply must be connected to its DC+ and DC- terminals to ensure stable operation in industrial applications.
