IC220PBI001 Product datasheet
|
Model number: |
IC220PBI001 |
|
Module Type： |
I/O Systems |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
FANUC |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
8.2x12.2x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC220PBI001 Functional Description

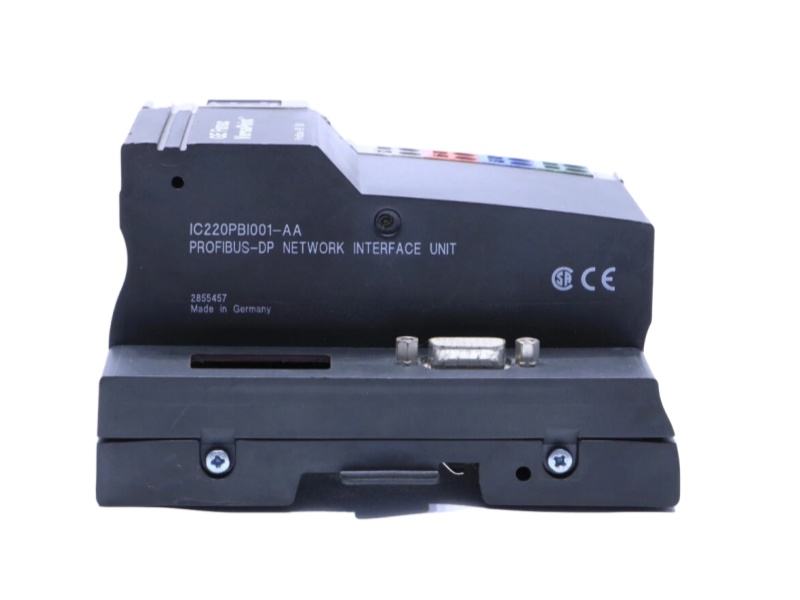

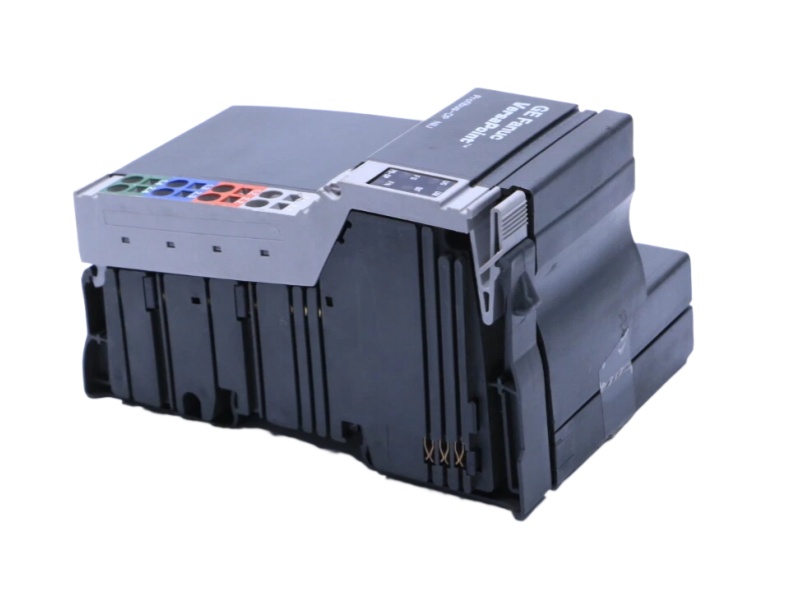

The I/O Systems IC220PBI001 General Electric is a PROFIBUS-DP Network Interface Unit (NIU) manufactured by GE Fanuc Automation for the VersaPoint system. Designed for integration into distributed I/O stations, this Interface Unit for Network Ethernet GE IC220PBI001 efficiently handles data communication between field devices and the central control system. Each unit supports a substantial data capacity of up to 184 bytes per station, making it suitable for complex industrial automation applications where robust and reliable signal exchange is critical.
A key operational feature of the VersaPoint Profibus-DP Network Interface Unit IC220PBI001 is its automatic baud rate adaptation, which synchronizes with the speed set by the PROFIBUS master. It supports a range from 9.6 kbps up to 12 Mbps, with corresponding maximum network lengths of 1200 meters and 100 meters respectively. This flexibility allows the module to perform effectively in various network configurations and physical layouts, ensuring stable and efficient data transmission across the automation system.
The hardware design of the General Electric Machine Control IC220PBI001 includes a standard SUB-D shielded connector for RS-485 copper cabling and requires a separate power connector. Electrically isolated supply and direct shielding connection to functional earth enhance noise immunity and safety in industrial environments. The unit also adapts high-byte/low-byte formatting for 16-channel I/O modules, improving data handling efficiency and integration consistency within the rack.
With compact housing dimensions of 91 mm x 120 mm x 71.5 mm, the IC220PBI001GE FANUC PLC MODULE is built for space-efficient installation in control cabinets. It is important to note that this interface unit does not include diagnostic capabilities and does not support acyclic communication. It can be directly replaced by the upgraded module IC220PBI002, providing a straightforward path for modernization or maintenance in existing systems.
