DS215TCEAG1BZZ01A Product datasheet
|
Model number: |
DS215TCEAG1BZZ01A |
|
Module Type： |
Emergency Overspeed Board |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Mark Vle |
|
Lead time： |
In Stock |
|
Weight: |
0.6kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
28x21.4x2.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
DS215TCEAG1BZZ01A Functional Description

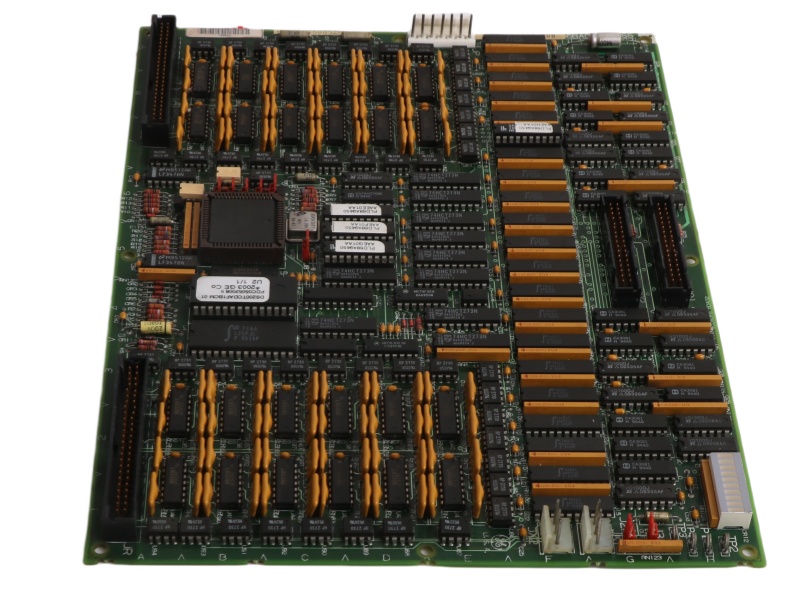

The General Electric DS215TCEAG1BZZ01A Emergency Overspeed Board is a critical Emergency Overspeed Board within the Mark V LM Series, serving as part of the protective processor core. Designed to handle high-speed protection, this board works with X, Y, and Z processors to deliver synchronization, flame detection, and shaft speed monitoring. Each DS215TCEAG1BZZ01A PC BOARD General Electric communicates data over the IONET to the R1 core, where median selection is performed for accuracy before control decisions are made.
To manage emergency trips, each TCEA board sends signals to relays, which are then interpreted by the TCTG board through voting logic. The GENERAL ELECTRIC Over speed Board DS215TCEAG1BZZ01A includes its own power supply and diagnostic functions, ensuring reliable operation during critical turbine events. Hardware jumpers configure IONET addresses, Overspeed settings, and stall timer options.
Flame detection relies on UV flame detectors, with signals processed and scaled through internal algorithms. These outputs are used by the CSP in the R core for safe turbine operation. The PROM modules GENERAL ELECTRIC DS215TCEAG1BZZ01A also handles automatic synchronizing by analyzing voltage and frequency, granting breaker closure only under safe conditions.
Overall, the Emergency Overspeed Board General Electric DS215TCEAG1BZZ01A integrates essential protective features, combining hardware and software to ensure turbine safety, performance, and secure synchronization under varying operational demands.
