DS215TCCAG1BZZ01A Product datasheet
|
Model number: |
DS215TCCAG1BZZ01A |
|
Module Type： |
Common Analog I/O Board |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Mark Vle |
|
Lead time： |
In Stock |
|
Weight: |
0.6kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
28x21.4x2.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
DS215TCCAG1BZZ01A Functional Description

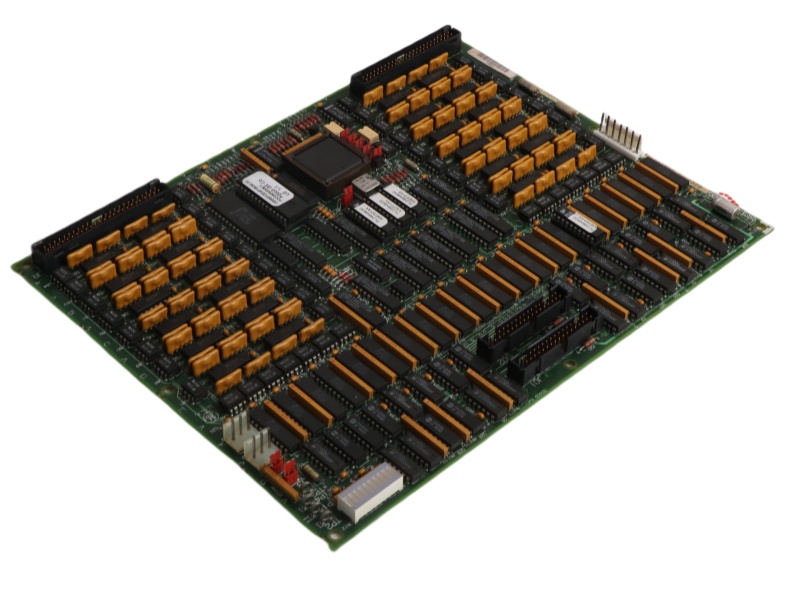

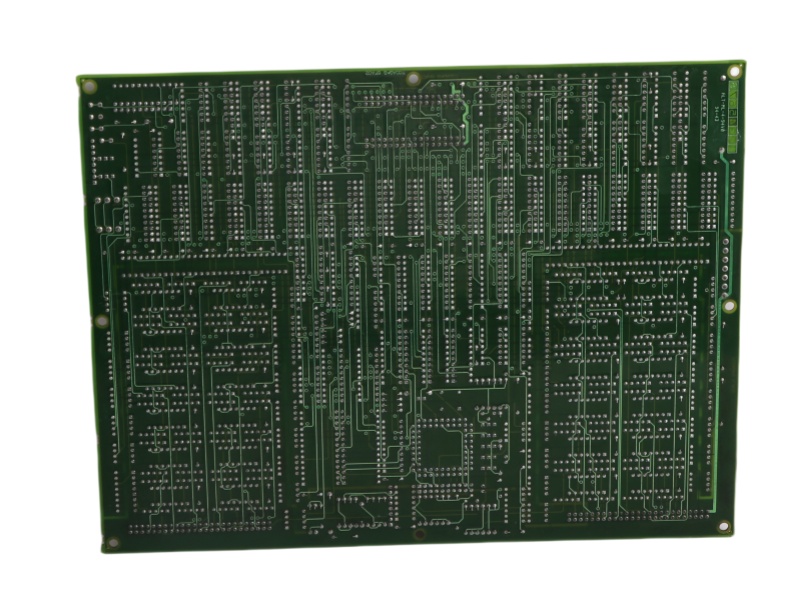

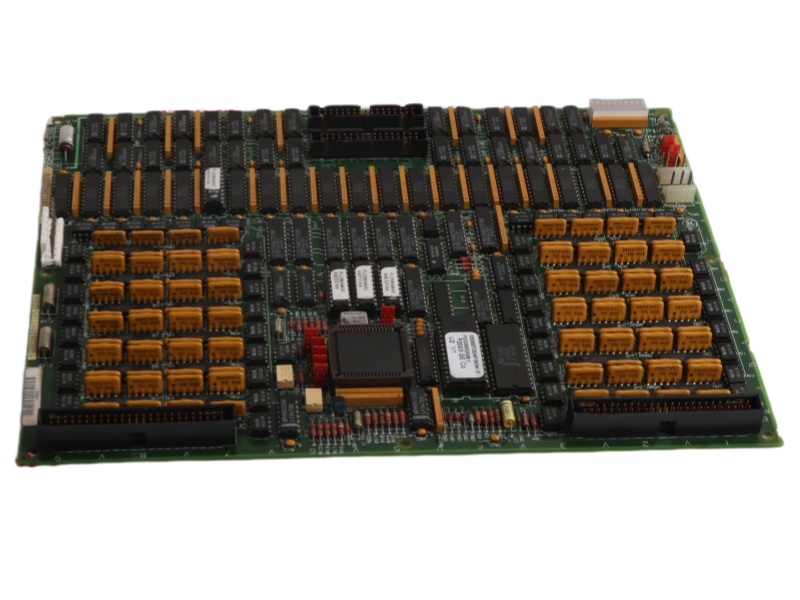

The Gas Turbine Control Systems General Electric DS215TCCAG1BZZ01A is a Common Analog I/O Board designed for use in the Mark V turbine control system. This board processes and conditions various analog signals including 4-20 mA inputs and outputs, RTD and thermocouple signals, as well as shaft voltage and current measurements. The Analog I/O Board GE DS215TCCAG1BZZ01A plays a crucial role in transmitting these processed signals to other system components for accurate turbine control and monitoring.
Equipped with eight analog input channels, the DS215TCCAG1BZZ01A GE Speedtronic Turbine Controller supports both 12-bit and 16-bit input and output resolutions. It operates on a 24V DC power supply and features 1500V isolation for enhanced safety and reliability. Communication is handled via an RS-485 protocol, ensuring robust data transfer between the board and connected components.
The General Electric DS215TCCAG1BZZ01A Common Analog I/O Board connectors include power distribution, data bus, and multiple signal input/output ports, facilitating seamless integration with other terminal boards such as CTBA, TBQA, and TBCA. Its hardware jumpers allow configuration adjustments, including RS232 port control and test modes.
Overall, the Common Analog I/O Board GE DS215TCCAG1BZZ01A is an essential component within the Mark V Series, offering precise analog signal management and supporting turbine control system stability in demanding industrial environments.
