DS200TBQCG1AAA Overview

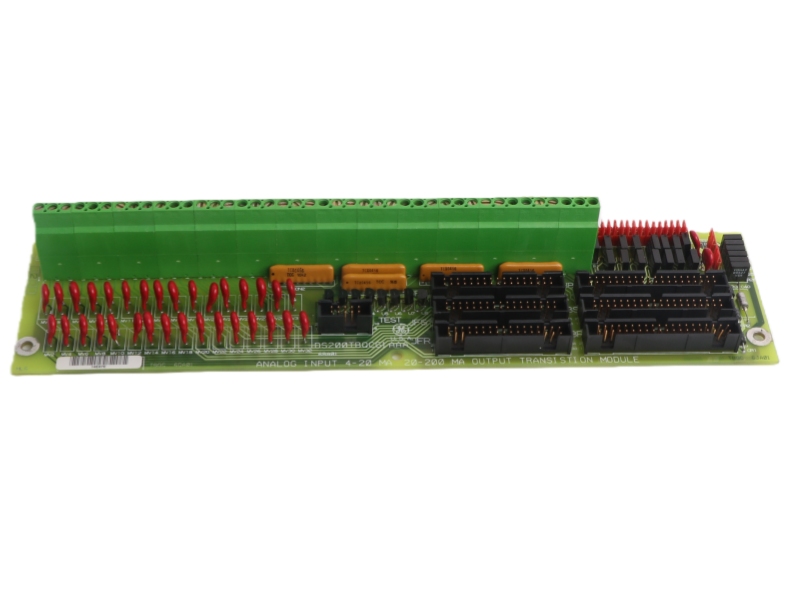

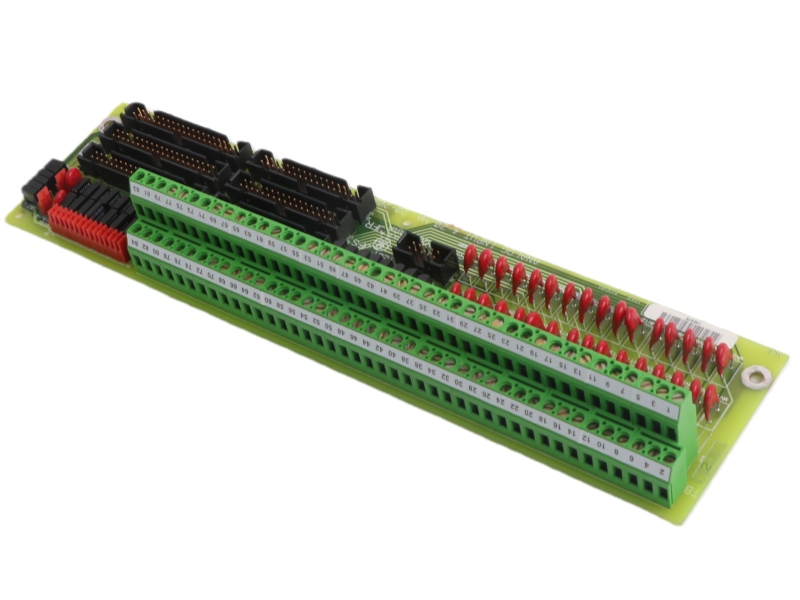

The General Electric Analog Input Termination Module DS200TBQCG1AAA is an Analog Input Termination Module for the Mark V control system. Positioned in cores R1-R3, it connects 4-20 mA and LVDT/R signals to the TCQA board and features jumper-configurable 20/200 mA outputs.

Specifications

Model: DS200TBQCG1AAA, an Analog Input Termination Module for Mark V control.

Location: Installed in position nine of cores R1, R2, and R3.

Primary Function: Connects and manages 4-20 mA and LVDT/R position input signals.

Output Configuration: Output current configurable via hardware jumpers to 20 mA or 200 mA.

Key Connectors: JBR (I/O signals), JFR (position inputs), with JBS/T, JFS/T, TEST typically unused.

General Spec: Manufactured in the USA, currently in stock for availability.

FAQ

Q1: What is the DS200TBQCG1AAA?

A1: It is an Analog Input Termination Module developed by General Electric for the Mark V control system.

Q2: What is the primary function of the JBR connector?

A2: The JBR connector writes 4-20 mA input signals to the TCQA board and reads mA output signals from it for system monitoring and control.

Q3: What is the specific role of the JFR connector?

A3: The JFR connector transmits LVDT/R position input signals to the TCQA board for precise position sensing and control applications.

Q4: Where is this termination module installed within the system?

A4: It is installed at position nine within the R1, R2, and R3 cores of the Mark V control system.

Q5: How are the module's output currents configured?

A5: The output current range (20 mA or 200 mA) is configured using hardware jumpers on the terminal board to meet specific application needs.
