DS200PCCAG1ADB Product datasheet

DS200PCCAG1ADB Functional Description

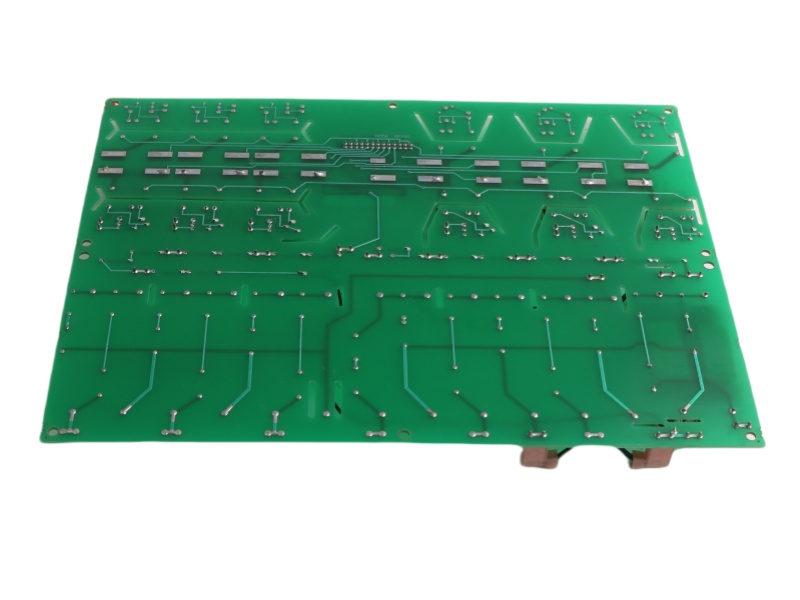

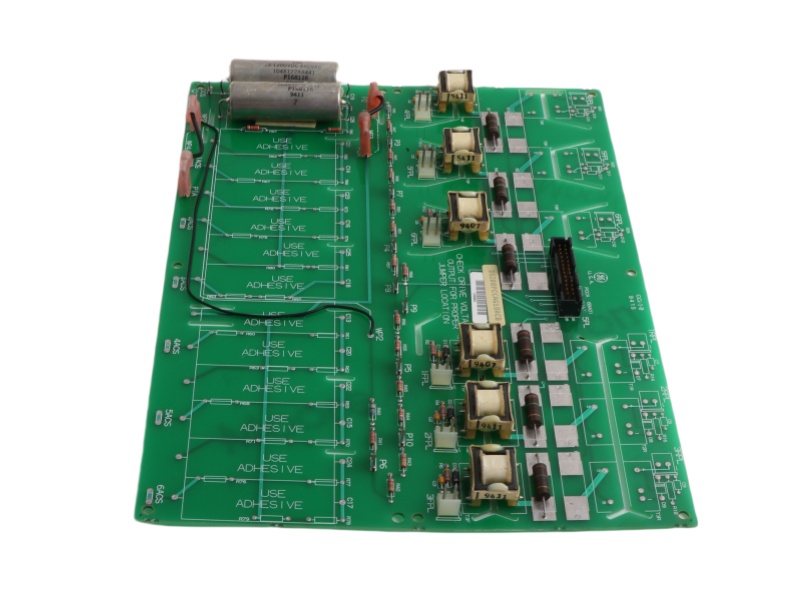

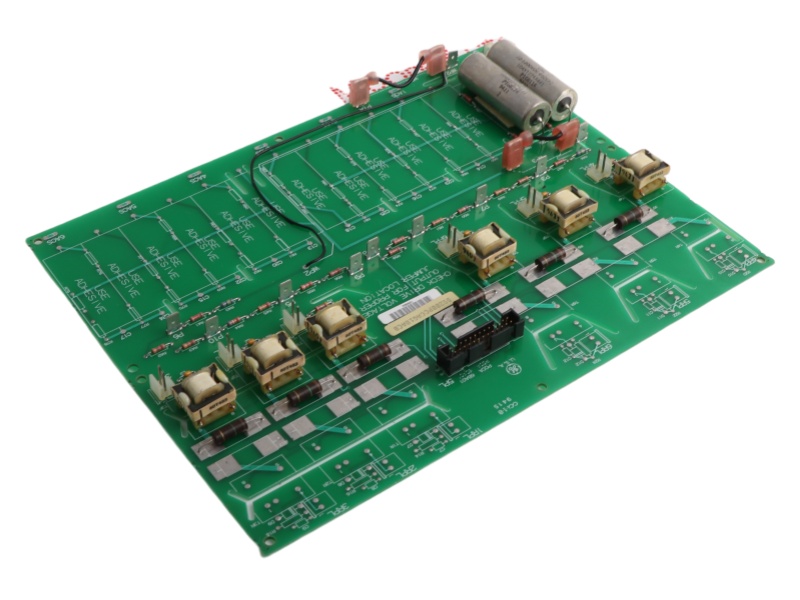

The General Electric DS200PCCAG1ADB Power Connect Card is a printed circuit board (PCB) originally designed for the Mark V Turbine Control System Series. This series is commonly used in the control and management of wind, steam, and gas turbine automated drive assemblies. Although the General Electric DS200PCCAG1ADB has important applications in alternative energy, it is considered an obsolete product due to functional obsolescence and has been discontinued. Despite this, the Mark V Series, which includes the General Electric DS200PCCAG1ADB Connect Card, remains valued for being one of the last series to utilize the patented Speedtronic control system technology.

The Power Connection Board GE DS200PCCAG1ADB acts as a DC Power Connect Board that interfaces between the drive and the SCR power bridge. Its connector is located at the rear of the circuit board cabinet on the drive. Replacing the board requires moving aside two other boards, but these can be tilted away without removal, simplifying the service process. The product number itself conveys key hardware details, indicating the Mark V Series assembly and its U.S. manufacture.

This Power Connect Card GE DS200PCCAG1ADB belongs to the Group One Mark V Series, which defines many of its hardware specifications, including regenerative armature voltage scaling between 240 and 630 volts, compatibility with C and G frame units, and support for AC and DC snubber styles. It is designed to work with a variety of power supply boards and transformers, supporting voltages over 480 V rms and separate bus transformers.

The DS200PCCAG1ADB GE Speedtronic Turbine Controller uses an Intel Ultra Low Voltage Celeron 650 MHz microprocessor running on the QNX Neutrino operating system. It supports analog input current at 240 V rms, DC bus voltage at 125 VDC, and auxiliary voltage of +15 VDC. The operating temperature range is between 0 and 60°C, ensuring stable performance under normal industrial conditions.
