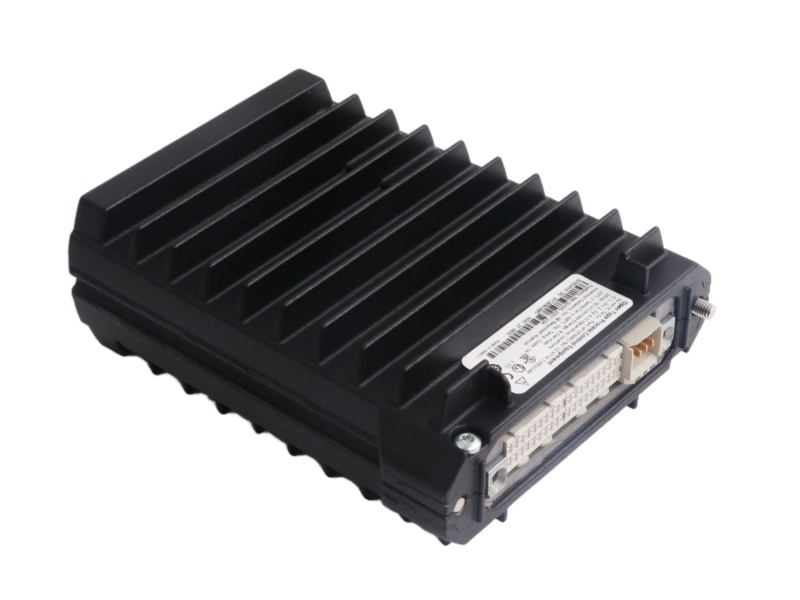

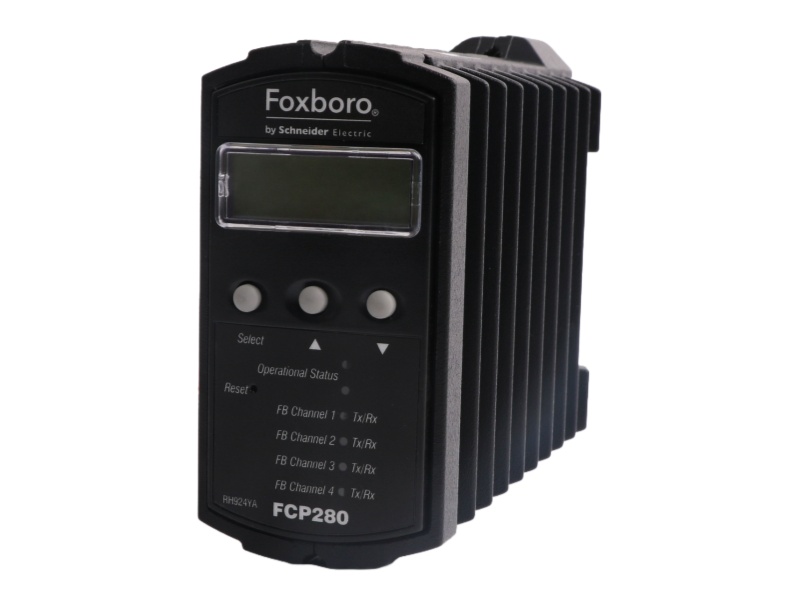

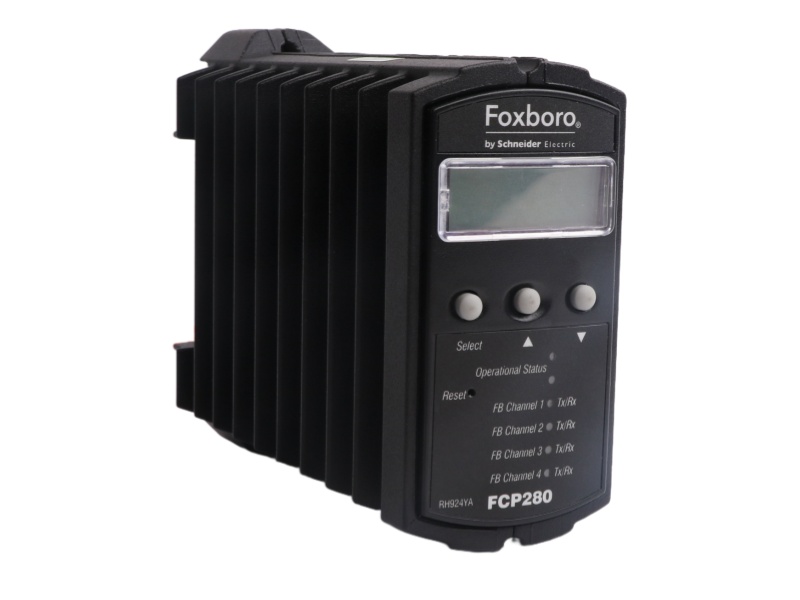

Foxboro RH924YA FCP280 Field Control Processor

Inquiry now

RH924YA FCP280 Product datasheet

Model number:	RH924YA FCP280	Module Type：	Field Control Processor
Manufacture:	Foxboro	Condition：	Brand New
Range of Product:	I/A Series	Lead time：	In Stock
Weight:	0.3 kg	HS CODE：	8537101190
Dimension:	4.5x11.5x11.5cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	active	Communication Service:	Ethernet router

RH924YA FCP280 Functional Description

The RH924YA Foxboro FCP280 Field Control Processor is a high-performance Field Control Processor designed for industrial automation, capable of performing regulatory, logic, timing, sequential control, data acquisition, alarm detection, and notification. CPU Module FOXBORO RH924YA FCP280 patented fault-tolerant design ensures continuous operation and maximum system availability, making it ideal for demanding process control applications.

This Foxboro Field Control Processor 280 RH924YA FCP280 seamlessly integrates with earlier generations of Foxboro automation hardware while offering twice the capacity and three times the performance of previous controllers. Its enhanced processing capability allows for faster updates, higher accuracy, and improved cost-effectiveness in complex industrial environments.

The RH924YA Field Control Processor Module FCP280 Foxboro supports online image upgrades (OLUG) and four PIO channels, enabling efficient plant-wide data integration across multiple fieldbus networks. It is rated for Class G3 harsh environments and CE-certified for field mounting in enclosures, ensuring secure and reliable operation even in challenging conditions.

Applications for the Control Processor INVENSYS RH924YA FCP280 include refining, petrochemicals, upstream and midstream oil and gas, chemicals, power generation, metals, mining, water treatment, food and beverage, and life sciences. Its modular and scalable architecture ensures lower total cost of ownership while providing robust performance and high reliability.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Foxboro	RH924YF	Foxboro	P0926JM	Foxboro	FBM202 P0914ST
Foxboro	RH916DB	Foxboro	P0926GQ	Foxboro	FBM2/36 P0500RG
Foxboro	RH916DB	Foxboro	P0922YU FPS400-24	Foxboro	FBM1/37/43 P0400HH
Foxboro	PO177VS	Foxboro	FBM207C	Foxboro	FBI10E P0972AJ
Foxboro	P0973BP	Foxboro	FBM207B	Foxboro	FCP270 P0917YZ
Foxboro	P0972VA	Foxboro	FBM206	Foxboro	FCM10EF
Foxboro	P0961CA	Foxboro	FBM205 P0914XG	Foxboro	FCM10E P0914YM
Foxboro	P0931RQ	Foxboro	FBM204	Foxboro	FCM10E
Foxboro	P0931RM	Foxboro	FBM203 P0914SV	Foxboro	P0904AK
Foxboro	P0926MX	Foxboro	FBM202 P0926EQ	Foxboro	P0903CW

Time Synchronization, SOE, TDR/TDA

The Foxboro DCS System supports time synchronization using either an externally maintained optional source of Universal Coordinated Time (UTC) from GPS satellites or an internal source using proprietary software. FCP280s that receive time updates via the external time source synchronize their FBMs to 1 ms. For more information on time synchronization, see Time Synchronization Overview (PSS 41S-1TIME).

Time stamping is used for alarm messages, values sent to the historian, the Foxboro DCS Sequence Of Events (SOE), Transient Data Recorder (TDR), and Transient Data Analyzer (TDA) features. SOE data are discrete points that are time stamped at the FBM, optionally to 1 ms, and sent to the workstation on a change basis. TDR/TDA data are analog or digital points that are time stamped at the FBM and sent to the workstation every 10 ms. These features are supported by client software in the workstation. For information on this new software, see Field Control Processor 280 (FCP280) Integrated Control Software (PSS 41S-3FCPICS).

Time strobe signals are delivered from custom switches over Ethernet cables. However, the method by which these Ethernet cables connect to the FCP280 baseplates differs depending on the baseplate. The standard vertical and horizontal baseplates’ RH924YF's first HDLC connector (upper right-hand side of the baseplate) accept time strobe signals via time strobe adapter (RH924ZQ), which is discussed in Module Fieldbus and Time Strobe Splitters/Terminators in Standard and Compact 200 Series Subsystem User's Guide (B0400FA).

Receiving the time strobe signals on the standard baseplate requires the use of the RH924ZQ adapter on the first HDLC port on the baseplate, and in this configuration, this port cannot be used for any other purpose. The dual cable baseplate (RH100JX) has two dedicated RJ-45 ports on its upper right-hand side to accept these Ethernet cables directly without the use of the RH924ZQ adapter.
