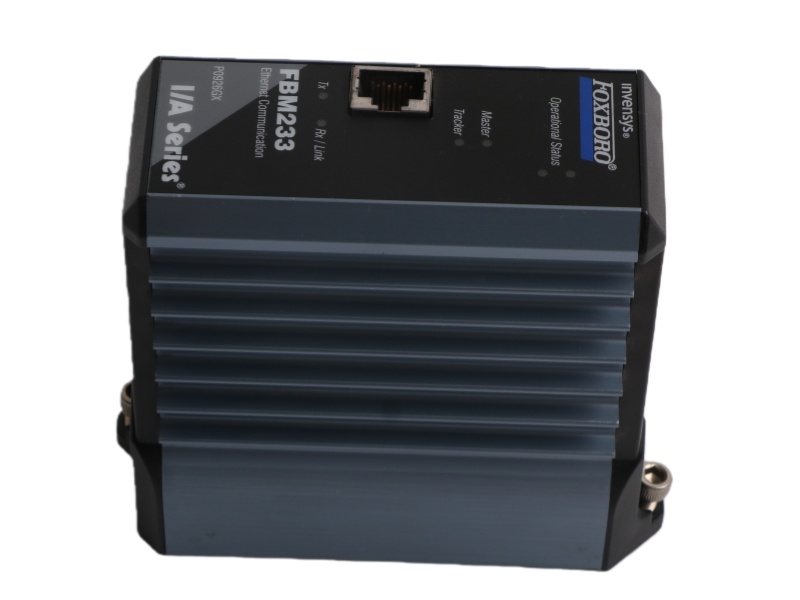

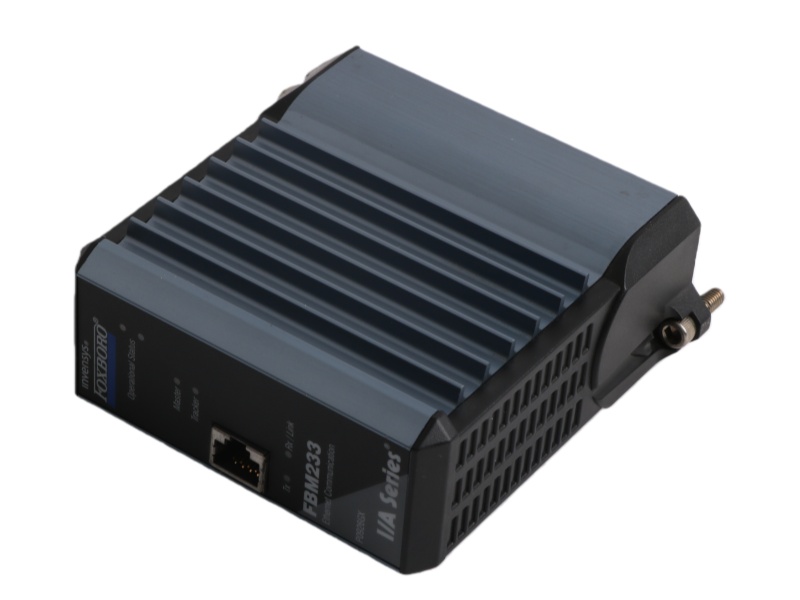

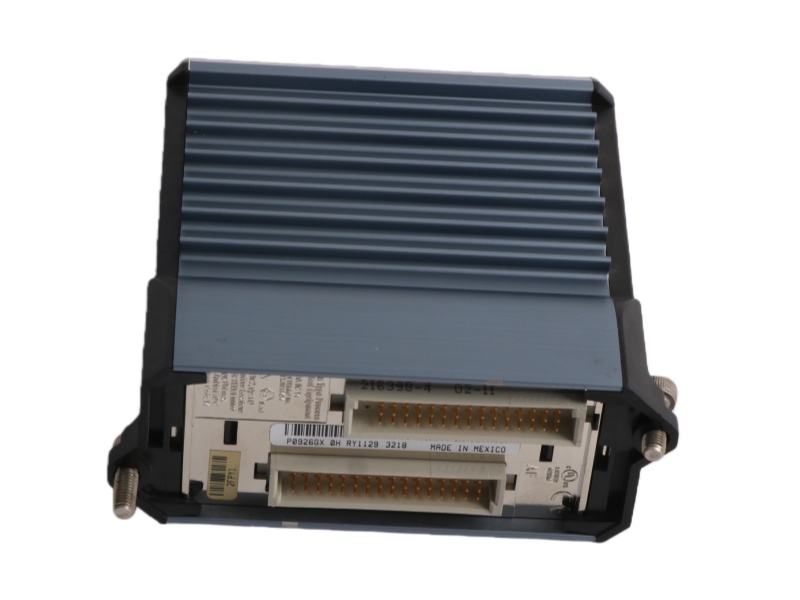

FBM233 P0926GX Overview

The Field Device System Foxboro FBM233 P0926GX is a redundant Ethernet FDSI module that integrates data from up to 64 field devices into the I/A Series system.

Key Features & Benefits

Redundant Ethernet Interface: Ensures high communication reliability and network availability for critical field devices.

Extensive Device Connectivity: Supports communication with up to 64 field devices via 10/100 Mbps Ethernet.

Flexible Protocol Support: Downloadable I/O drivers allow integration of various third-party device protocols, simplifying system expansion.

High-Capacity Data Integration: Enables up to 2000 DCI block connections, integrating vast device data directly into the I/A Series control database.

Rugged Field Mounting: Designed for Class G3 harsh environments, ensuring reliable operation in demanding industrial settings.

Master/Tracker Redundancy: Paired modules provide automatic role switching for seamless fault tolerance and continuous data flow.

FAQ

Q1: What is the primary function of the Foxboro FBM233 P0926GX module?

A1: Its primary function is to serve as a redundant Field Device System Integrator (FDSI), providing a reliable Ethernet interface to integrate data from up to 64 field I/O devices into the I/A Series control system.

Q2: How does the FBM233 P0926GX achieve communication redundancy?

A2: It achieves redundancy by operating in a Master/Tracker pair configuration. If the Master module fails, the system automatically switches roles to the Tracker, ensuring uninterrupted communication.

Q3: What types of devices and protocols can it connect to?

A3: It connects to various field devices via downloadable software I/O drivers, which support specific protocols from third-party vendors, offering flexible integration for standard and custom devices.

Q4: What is its data handling capacity for the control system?

A4: It supports up to 2000 DCI block connections, allowing an I/A Series station to manage a large volume of data, including thousands of analog and digital I/O points.

Q5: Is the FBM233 P0926GX suitable for harsh industrial environments?

A5: Yes, it is designed for field mounting and is rated for Class G3 harsh environments, ensuring robust operation in demanding industrial conditions.
