PR6423/000-101 CON041 Overview

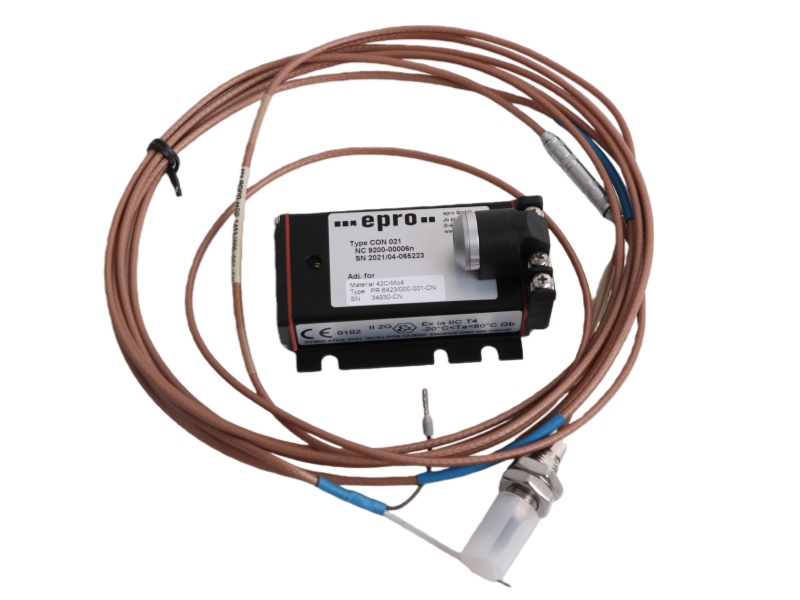

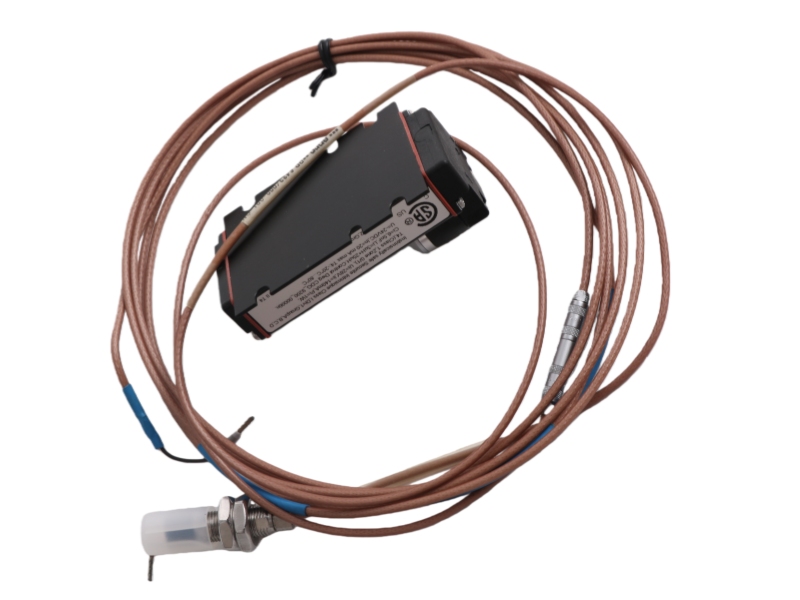

The EMERSON PR6423/000-101 CON041 Eddy Current Signal Converter is a robust eddy current displacement transducer system, designed for non-contact monitoring of shaft position and vibration in critical turbomachinery under demanding industrial conditions.

Features and benefits

•Critical Monitoring: Non-contact measurement of shaft displacement for critical turbomachinery.

•Diverse Applications: Measures vibration, eccentricity, thrust, and differential expansion directly.

•High Reliability: Rugged design with <1% linearity error and 0.3% max long-term drift.

•Extreme Tolerance: Operates from -35°C to +180°C and is rated for explosive atmospheres.

•Flexible Integration: CON041 converter connects via screw terminals for straightforward wiring.

•Standards Compliance: Meets DIN 45670, ISO 10817-1, and API 670 international standards.

FAQ

Q1: What is the primary application of the PR6423/000-101 CON041?

A1: It is designed for non-contact measurement of shaft displacement and vibration in critical turbomachinery like steam and gas turbines.

Q2: What key performance features does it offer?

A2: It provides high sensitivity (8 V/mm), a static range of ±1.0 mm, and a linearity error of less than ±1% after calibration.

Q3: In what environments can it operate?

A3: It operates in temperatures from -35°C to +180°C and is certified for use in explosive atmospheres (Eex ib IIC T6/T4).

Q4: How is the transducer connected to the system?

A4: The CON041 converter connects via blunt-cut cable for direct screw terminal wiring, facilitating easy integration.

Q5: Does it meet industry standards?

A5: Yes, it complies with international standards including DIN 45670, ISO 10817-1, and API 670.
