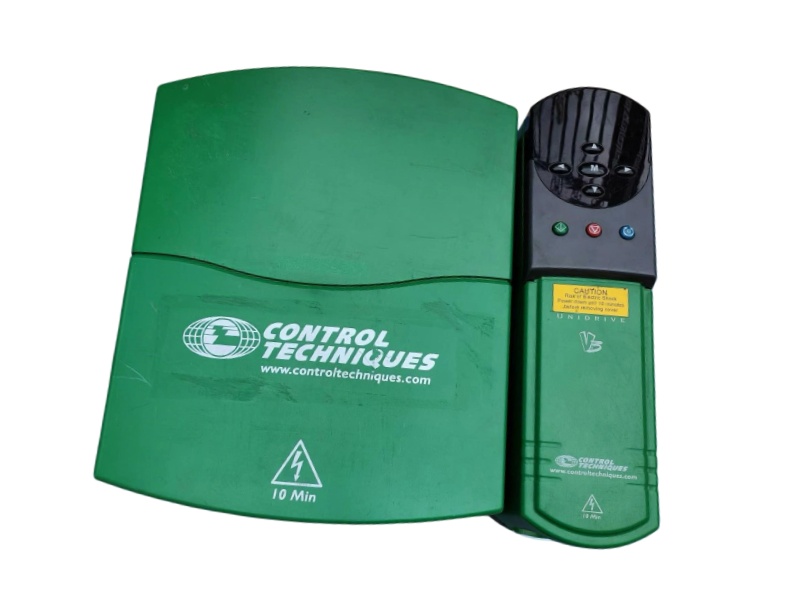

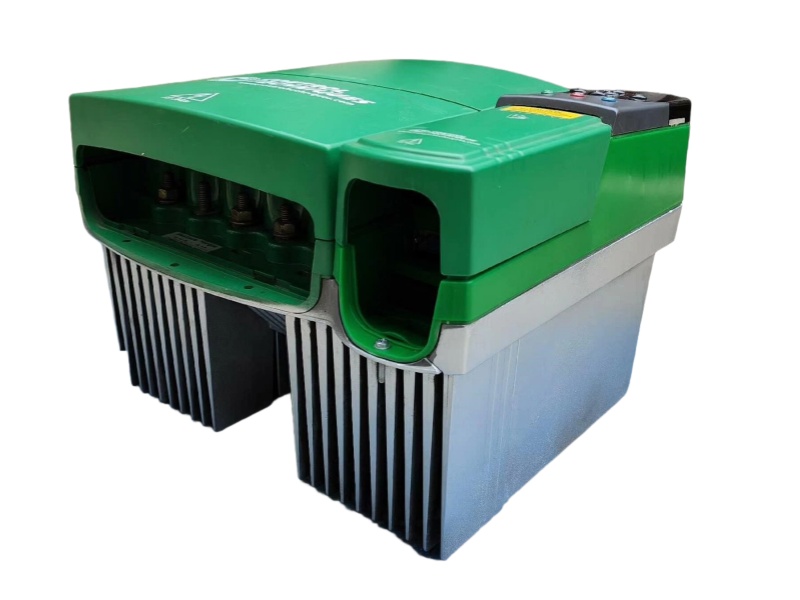

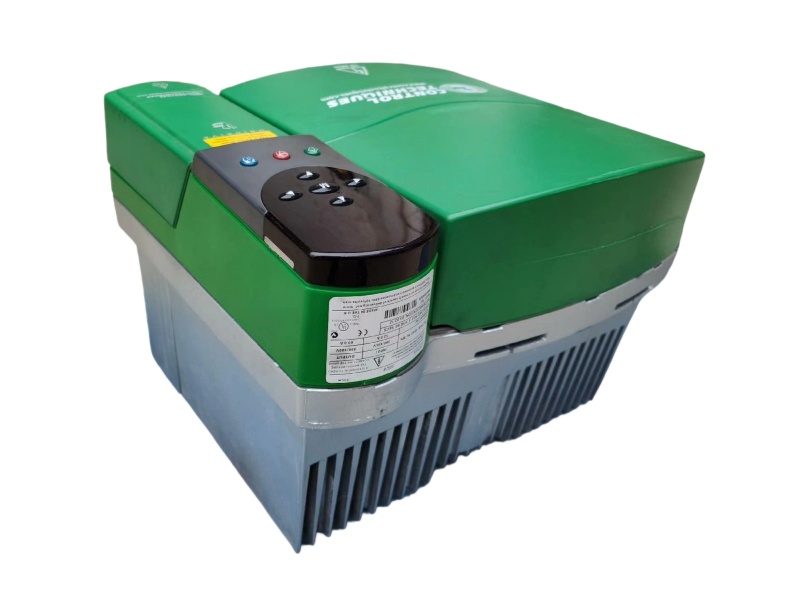

The Control Techniques UNI3404 PDF is a universal variable speed AC drive engineered for robust performance and versatile motor control. With a nominal power rating of 40 HP and an output current of 60 A, it provides reliable operation for a wide range of industrial applications. The drive typically draws an input current of 52 A, balancing high performance with energy efficiency.

Designed for flexibility, the Control Techniques AC Drive UNI3404 supports multiple operating modes, including Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, and Regenerative functions. This versatility allows users to tailor the drive’s operation to specific application needs, ensuring precise speed, torque, and position control in diverse systems.

The UNI3404 DRIVE Control Techniques operates effectively within an ambient temperature range of 0 to 50 °C and can start up in temperatures as low as –10 °C. Universal Variable Speed AC Drive UNI3404 Control Techniques is also capable of withstanding ambient storage temperatures from –40 to 50 °C, maintaining reliability under challenging conditions.

Weighing 22 kg (49 lbs) and classified as a Size 3 model, the UNI3404 Universal Variable Speed AC Drive Control Techniques is compatible with a voltage range of 380 to 480 VAC. Its ability to tolerate relative humidity up to 95% without condensation further ensures stable and consistent performance, making it an ideal choice for medium-duty and demanding variable speed applications.
